Argos 287/6847 Assembly Instructions Manual page 16

Assembly Instructions

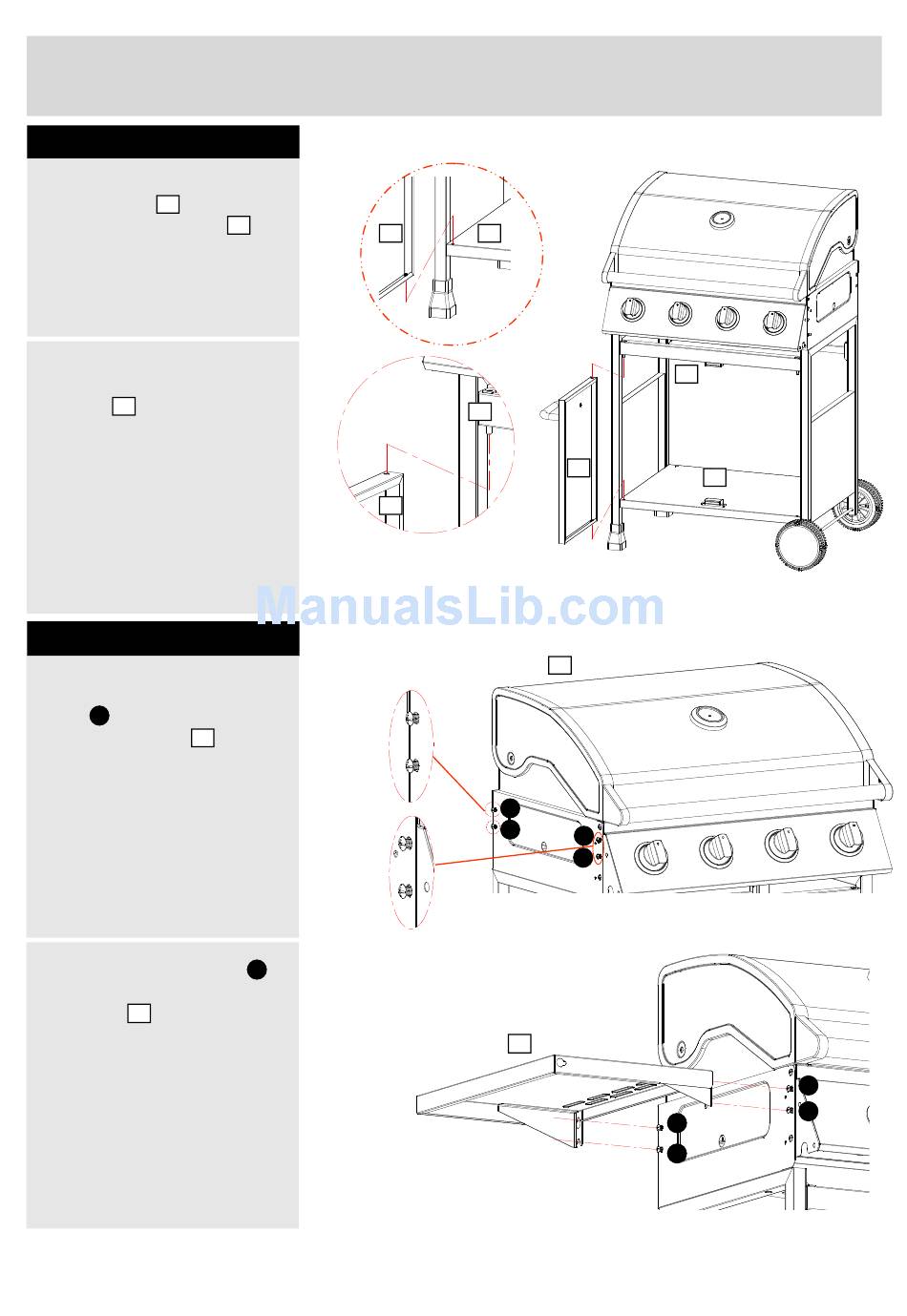

Step 9
a:
Place the door post of the
left front door
17
bottom shelf assembly
Repeat the step fix the right
front door.
b:
Depress the spring post
on the bottom of the door
transom
16
.
Then align the hole in the
top of the door with the
spring post. You should hear
a click when the door is
properly aligned and the
door should be attached.
Please do the same step to
install the right front door.
Step 10
a:
Screw 4pcs of 12mm
bolts A onto the left side of
the grill assembly
Have half of the bolt threads
go into the bolt holes. Do not
tighten at this stage.
b:
Align the 12mm bolts
properly with the side table
assembly 7 .
Fix the bolts tightly by the
screwdriver after the
alignment is done.
