Argos 307223 Assembly Instructions Manual

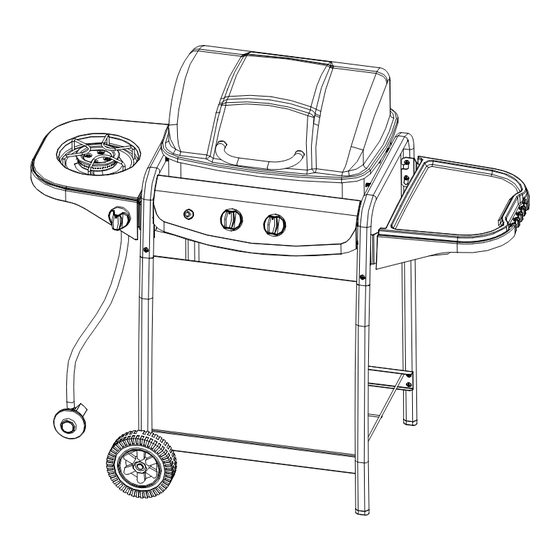

2 burner gas bbq with side burner
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

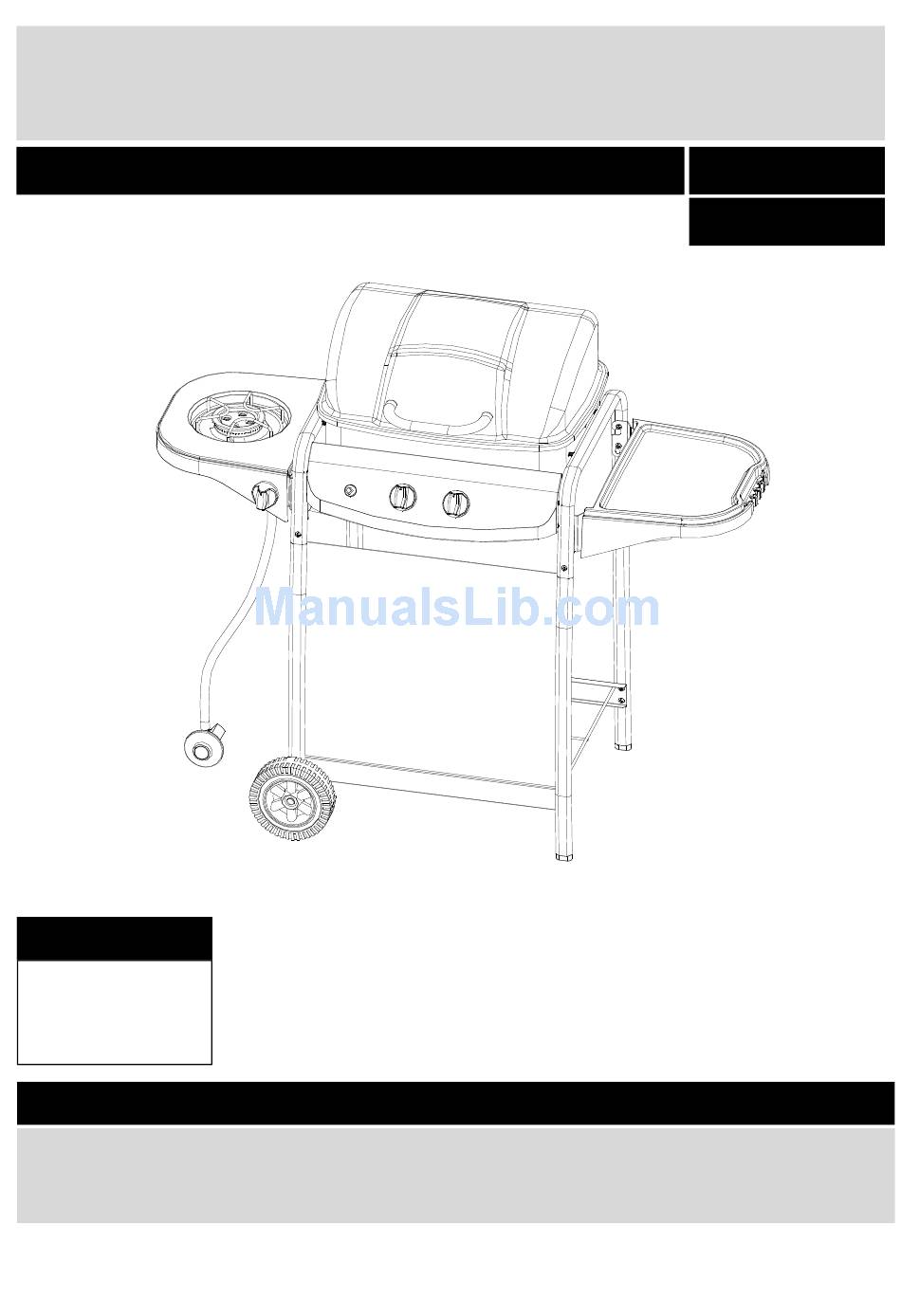

2 Burner Gas BBQ with side burner

Dimensions

Width - 112cm
Depth - 52cm
Height - 96.5cm
Important -
Please read this instructions fully before using the appliance
If you need help or have damaged or missing parts, call the Customer Helpline: 03456 400800 (Argos)/ 03450
778888 (Homebase). Please visit the website www.argos.co.uk or www.homebase.co.uk for more information.
Please keep for future reference
345/0901
307223
Issue 1 - 25/08/2014

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 307223 and is the answer not in the manual?

Questions and answers

Related Manuals for Argos 307223

Summary of Contents for Argos 307223

  • Page 1 Important - Please read this instructions fully before using the appliance If you need help or have damaged or missing parts, call the Customer Helpline: 03456 400800 (Argos)/ 03450 778888 (Homebase). Please visit the website www.argos.co.uk or www.homebase.co.uk for more information.
  • Page 2 Safety and Care Advice Important - Please read this instructions fully before using the appliance Assembly time: approx. 45 mins. • Retain these instructions for future reference. • Use outdoors only. • Do not use the barbecue or store gas bottles below ground level. LP gas is heavier than air so if a •...
  • Page 3 Safety and Care Advice For optimal performance, we suggest to use a 5-15kg gas bottle. The maximum dimension of the gas bottle is dia 31.5cm and height 58cm. 1= maximum diameter 2= maximum height Never mount the gas bottle under the barbecue on the base shelf as this could result in serious injury to the user, other people and/or property.
  • Page 4 Safety and Care Advice Operation Warning Before proceeding, make certain that you understand the IMPORTANT INFORMATION section of • this manual. Your barbecue is not designed to be used with more than 50% of the cooking area as a solid plate — •...
  • Page 5 Safety and Care Advice Manual Ignition Instruction for Side Burner Set the control knob to the off position. • Apply a lit match on the gap to burner ports. • Push and turn the control knob anti-clockwise to max position and the burner should ignite. If the •...
  • Page 6 Safety and Care Advice In the event of a fat fire: If safe to do so, turn all control knobs to the ‘off’ position. ‧ Turn off the gas supply at the gas bottle. ‧ Keep everyone at a safe distance from the barbecue and wait until the fire has burnt out. ‧...
  • Page 7 Safety and Care Advice the burners clean. The burners should be removed and cleaned annually, or whenever heavy build-up is found, to ensure that there are no signs of blockage (debris, insects) in either the burner portholes or the primary air inlet of the burners.
  • Page 8 Safety and Care Advice Fixings All screws and bolts, etc. should be checked and tightened on a regular basis. Storage Ensure the barbecue is properly cooled before covering or storing. Store your barbecue in a cool dry place. It must be inspected on a regular basis as damp or condensation can form which may result in damage to the barbecue.
  • Page 9 If you have damaged or missing components, Components - Parts call the Customer Helpline: 03456 400800 (Argos)/ 03450 778888 (Homebase). Please check you have all the panels listed below 1 Lid x1 Lid handle x1 Cooking grill x1 Heat tent x1...
  • Page 10 Components - Parts Please check you have all the panels listed below Wheel x 2 Left upper support Right upper support Control panel as- sembly x 1 Front canvas x1 Bottom shelf x1 Side table x1 Side burner Side table front sup- Side table rear Side burner assembly x1 port x1...
  • Page 11 Components - Fittings Please check you have all the panels listed below Note The quantities below are the correct amount to complete the assembly. : : : : 12mm Bolt x 16 10mm screw x 6 M4 nut x 2 20mm Bolt x 8 M6 nut x 4 8mm Bolt x 8...

  • Page 12: Assembly Instructions

    Assembly Instructions Step 1 Fix the left front leg left rear leg on the bot- tom shelf using 12mm bolts FRONT Step 2 Fix the right front leg and left rear leg on the bottom shelf using 12mm bolts FRONT...
  • Page 13 Assembly Instructions Step 3 Install the wheels to the left front leg and left rear using the axles Then fix the axles by R pins FRONT Step 4 Connect the left upper sup- port with the left front and left rear leg using 20mm bolts and M6 nuts...
  • Page 14 Assembly Instructions Step 5 Fix the control panel assem- on the left up- per support and right upper support using 12mm bolts FRONT Step 6 Fix the heat tent support on the firebowl using 8mm bolts and M4 nuts...
  • Page 15 Assembly Instructions Step 7 Set the firebowl on the left upper support right upper support using 20mm bolts Step 8 Put the burner through the hole of the fire- bowl Align all valves on the control panel assembly against each venturi of the burner Important: Make sure the valve...
  • Page 16 Assembly Instructions Step 9 Fix the hinge on the fire- bowl using 8mm bolts and M5 nuts Step 10 Put the washer between the lid handle and the lid Align the holes and fix the lid handle on the lid ing 8mm bolts...
  • Page 17 Assembly Instructions Step 11 Fix the lid and firebowl by the hinge using 8mm bolts and M5 nuts Step 12 Assemble the side table front support and the side table rear support the side table Secure the supports with 10mm screws...
  • Page 18 Assembly Instructions Step 13 Install the side table assem- bly made on step 12 to the right upper support 15mm shoulder bolts Step 14 Install the side burner assembly to the left up- per support using 12mm bolts...
  • Page 19 Assembly Instructions Step 15 Loosen the pre- assembled screws on the side burner valve of the con- trol panel assembly Fix the side burner valve on the side burner panel bracket of the side burner assembly using the screws. Put the side burner and the side burner elec- trode through the...
  • Page 20 Assembly Instructions Step 15 Align the venturi of the side burner against the valve. Important: Make sure the valve tip goes into the venturi tube completely with good alignment. Then tighten the side burner on the side burner assembly using 8mm bolt Burner venturi Connect the electrode of the main burner...
  • Page 21 Assembly Instructions Step 15 Insert the hook end of the venturi clip into the air hole of the side burner ven- turi. Then clip another end on the side burner valve. The venturi clip is used to valve stabilize the side burner so as to make sure the side burner valve tip goes into the burner venturi securely with...
  • Page 22 Assembly Instructions Step 16 Put the grease cup hanger through the hole of the firebowl Side view Top view Step 17 Hang the grease cup the grease cup hanger Attach the front canvas to the left front leg right front leg Secure the position with the velcro on canvas edge.
  • Page 23 The hose length should not exceed 1.5 metres. If you need help or have damaged or missing parts, call the Customer Helpline: 03456 400800(Argos)/ 03450 778888 (Homebase).
  • Page 24 2.3 kW 500 g/h Gas Consumption GB and IE Country of Destination Do not use this barbecue outside England and Ireland. This barbecue grill is imported by: Argos Limited/ Homebase Limited 489-499 Avebury Boulevard Saxon Gate West Milton Keynes MK9 2NW...

  • Page 25: Troubleshooting

    Troubleshooting Problem Possible Cause Solution Burner will not light LP gas cylinder is empty Replace with full cylinder using the ignition sys- Faulty regulator Have regulator checked or replace Obstructions in burner Clean burner Obstructions in gas jets or gas hose Clean jets and gas hose Electrode wire is loose or disconnected Reconnect wire...
