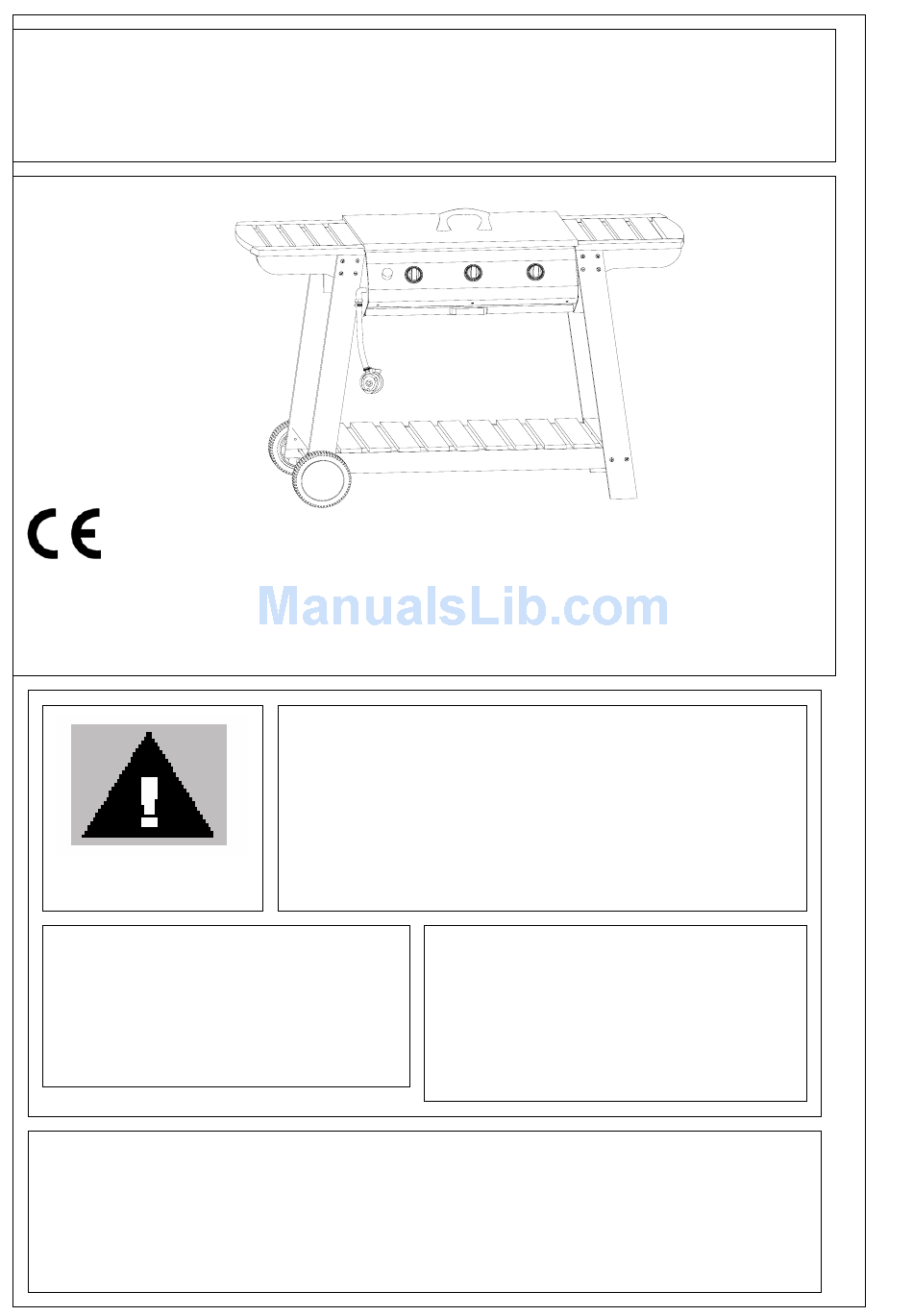

Assembly and Operating Instructions
0123
Line drawings are not to scale. Actual products may differ from drawing depending on the model purchased .
Specifications are subject to change without notice.
WARNING
FOR YOUR SAFETY
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. Open barbecue hood.
4. If odour continues, immediately call your
gas supplier or your local fire department.
FOR OUTDOORS USE ONLY . PLEASE READ INSTRUCTIONS CAREFULLY
BEFORE ASSEMBLING. RETAIN THIS MANUAL FOR FUTURE REFERENCE.
Produced for Argos Limited.
Avebury, 489-499 Avebury Boulevard
Saxon Gate West, Central Milton Keynes, MK9 2NW
www.argos.co.uk
3 Burner Flat Gas BBQ with Timber Trolley
HAZARDOUS FIRE OR EXPLOSION MAY
RESULT IF INSTRUCTIONS ARE IGNORED.
It is the consumer's responsibility to see that the barbecue
is properly assembled, installed, and taken care of. Failure
to follow instructions in this manual could result in bodily
injury and/or property damage.
PRECAUTIONS
1. Leak test all connections after each tank refill
2. Never check for leaks with a match or open
flame
3. Do not store or use gasoline or other
flammable vapours and liquids in the vicinity
of this or any other appliance.
4. Do not use this appliance indoors.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 84840 and is the answer not in the manual?

Questions and answers

Related Manuals for Argos 84840

Summary of Contents for Argos 84840

  • Page 1 4. Do not use this appliance indoors. FOR OUTDOORS USE ONLY . PLEASE READ INSTRUCTIONS CAREFULLY BEFORE ASSEMBLING. RETAIN THIS MANUAL FOR FUTURE REFERENCE. Produced for Argos Limited. Avebury, 489-499 Avebury Boulevard Saxon Gate West, Central Milton Keynes, MK9 2NW...

  • Page 2: Parts List

    PARTS LIST 3.Bottom Shelf Assembly 4. Wheel Axle ..1 pc 1. Left Leg (short)1a;1b 2. Right Leg (long) 2a;2b ..1 pc ..2 pc ..2 pc 6. Wheel Decals 7. Side Burner Shelf 5. Wheels ..….. 2 pcs Side Shelves…...2pcs ….…2pcs Knob(7a……..

  • Page 3: Hardware List

    HARDWARE LIST Item No Figure Name BOLTS M6X25 Wheel Nuts M10 Heat Resistant Washers Wing Nut M6 Battery INSTRUCTIONS FOR YOUR NEW BARBECUE Tools needed for assembly Flathead and Crosshead Screwdrivers, Spanners, Pliers Before Assembly Please read all instructions thoroughly before proceeding. Find a large,clean and horizontal place to assemble your trolley barbecue.
  • Page 4 A. Assembly of the Barbecue REMOVE THE BBQ PARTS FROM THE BOX before assembly NOTE : ENSURE ANY TRANSIT PROTECTION IS REMOVED STEP 1 : Fit Bottom Shelf Assembly (3) between Legs (1a, 1b, 2a, 2b) using Bolts (A). Insert Axle (4) through big holes in the bottom of Short Legs (1a, 1b), attach Wheels (5) to both side using Wheel Nuts (B), then cover with Wheel Decals (6), as shown.
  • Page 5 STEP 3 : Fit Side Shelf Assembly to Legs using Bolts (A). STEP 4 : Turn Trolley Assembly and Body (9) upside down, fit Body (9) to Trolley using Bolts (A) and Heat Resistant Washers (F). Then stand your barbecue upright.
  • Page 6 STEP 5 : Attach Handle (14) and Lid Hook (15) to Lid (10) using Wing Nut (D). Place Flame Diffuser (13), Reversible Plate (12) and Cooking Grill (11) into Body (9), insert Drip Tray Assembly (16) under Body (9). Attach Hose (17) to Valve. Tighten all Bolts and Nuts fully.
  • Page 7 Leak Testing (To be performed in a well-ventilated area.): Confirm all control knobs are in the off position. Open the gas control valve on the bottle or regulator. Check for leaks by brushing a solution of 1/2 water and 1/2 soap over all gas system joints, including all valve connections, hose connections and regulator connections.

  • Page 8: Installation

    Never cover a barbecue until it has completely cooled. WARNING: Do not use lava rock as this barbecue uses a heat diffuser plate. Leak test annually, and whenever the gas bottle is removed or replaced. The gas valve is not sold as a spare part, if a gas valve fail to function a new gas rail need to be replaced.

  • Page 9: Operation

    the expiry date. 3. Connecting the Gas Hose to the Barbecue Connect the gas hose to the gas rail inlet on the left hand side of the barbecue. Do not over tighten. Do not use any sealing tape or liquid on the connection. 4.
  • Page 10 Push the ignitor knob 4-5 seconds, burner should ignite within 5 seconds. If burner does not ignite, push and turn control knob to “OFF”, turn off cylinder valve. Wait 5 minutes, then try again steps 2 – 4. After the second left burner is lit, push and turn the rightmost control knob to “HIGH”, the rightmost burner will ignite automatically.

  • Page 11: Care And Maintenance

    7. Turning Off Your Barbecue When you have finished using your barbecue, turn all the control valves fully clockwise to the “ Off “ position, then switch off the gas at the bottle. Wait until the barbecue is sufficiently cool before closing its hood. E.

  • Page 12: Technical Specifications

    Do not let children tamper with the bottle. F. Technical Specifications Argos Ltd. 0123 Product name 3 Burner Flat Gas BBQ with Timber Trolley...

  • Page 13: Troubleshooting

    G. Troubleshooting problem Possible Cause solution LP gas cylinder is empty Replace with full cylinder Burners will not Faulty regulator Have regulator checked or replaced light Obstructions in burner Clean burner using the ignition Obstructions in gas jets or gas Clean jets and gas hose system hose...
