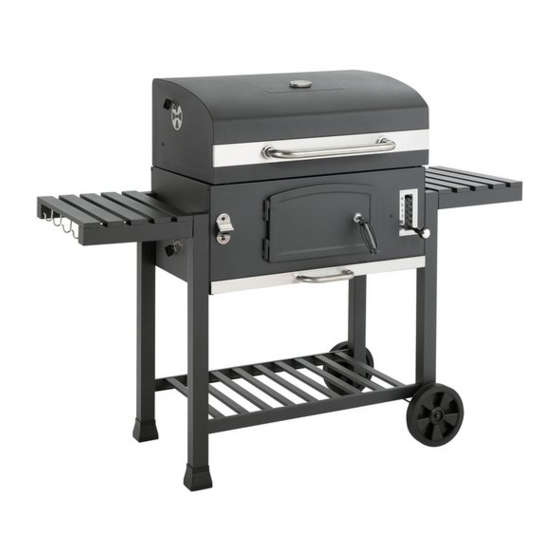

American Charcoal BBQ XXL
Assembly Instructions -
Dimensions
Width - 103cm
Depth - 68cm
Height - 114cm
Important -
Please read this instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline: 03456 400800.
Please visit the website www.argos.co.uk for more information.
Produced in China. Sainsbury's Supermarkets Ltd. 33 Holborn, London EC1N 2HT. Sainsbury's (NI) Ltd, Forestside
Shopping Centre, Upper Galwally, Belfast, United Kingdom, BT8 6FX. Argos Limited, 489-499 Avebury Boulevard,
Milton Keynes MK9 2NW. Argos (N.I.) Ltd, Forestside Shopping Centre, Upper Galwally, Belfast, United Kingdom,
BT8 6FX. Argos Distributors (Ireland) Limited, Unit 7, Ashbourne Retail Park, Ballybin Road, Ashbourne, County
Meath, Ireland
Please keep for future reference
954/4031
Issue 1 - 13/09/21
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Argos 954/4031
Summary of Contents for Argos 954/4031
- Page 1 Shopping Centre, Upper Galwally, Belfast, United Kingdom, BT8 6FX. Argos Limited, 489-499 Avebury Boulevard, Milton Keynes MK9 2NW. Argos (N.I.) Ltd, Forestside Shopping Centre, Upper Galwally, Belfast, United Kingdom, BT8 6FX. Argos Distributors (Ireland) Limited, Unit 7, Ashbourne Retail Park, Ballybin Road, Ashbourne, County...
- Page 2 Safety and Care Advice Important - Please read this instructions fully before starting assembly War ning: Whilst every effort has been made in the manufacture of your BBQ to remove any sharp edges, care should be taken in handling to avoid any accidental injury. •...
- Page 3 Safety and Care Advice • Recommend using Maximum 1.5kg of charcoal briquettes on the charcoal grate. Excess charcoal will make the BBQ too hot for cooking. The max loading weight of the side shelf is 4kg. • Ensure the barbecue has cooled down completely before removing the charcoal ash. •...
- Page 4 "Do not use the barbecue in a confined and/or habitable space e.g. houses, tent, caravans, motor homes, boats. Danger of carbon monoxide poisoning fatality." Note: if required the next page can be cut out and used as reference throughout the assembly.
-
Page 5: Components - Parts
Components - Parts Please check you have all the panels listed below Lid x 1 Firebowl front panel x 1 Firebowl back panel x 1 Firebowl side panel x 2 Hook x 8 Charcoal tray x 1 Warming rack x 1 Cast iron cooking grill x 2 Cast iron cooking grill x 2 Crank handle x 1... - Page 6 Components - Parts Please check you have all the panels listed below Lid handle x 1 Temperature gauge x 1 Lower hinge x 2 Charcoal tray handle x 1 Ash pan X 1 Upper hinge x 2 Left Front leg x 1 Right front leg x 1 Left rear leg x 1 Right rear leg x 1...
- Page 7 Components - Fittings Please check you have all the panels listed below Note The quantities below are the correct amount to complete the assembly. M6 Shoulder bolt x 8 35mm Bolt x 8 30mm Bolt x 4 Washer x 2 Lid pin x 2 15mm Bolt x 42 R pin x 3...
- Page 8 Assembly Instructions Step 1 Fix the firebowl front panel and firebowl back panel with firebowl side panel using 15mm bolts Align the holes and fix the bolts tightly by the screwdriver. FRONT Step 2 Fix the firebowl front panel and firebowl back panel with the firebowl side panel using 15mm bolts Align the holes and fix the...
- Page 9 Assembly Instructions Step 3 Fix the left front leg ， left rear leg right front leg ， and right rear leg on the friebowl using 15mm bolts Step 4 Fix the bottom shelf on the left front leg left rear leg ，...
- Page 10 Assembly Instructions Step 5 Fix the left front leg left rear leg with leg caps using 15mm bolts Step 6 Insert the axle to the right front leg and right rear Then apply the axle sleeve washers and the wheels to the axle end.
- Page 11 Assembly Instructions Step 7 Fix the air vents on the firebowl side panel using 15mm bolts and M6 nuts Step 8 Fix the charcoal tray firebowl back panel using 15mm bolt...
- Page 12 Assembly Instructions Step 9 A: Put lift stick pass through the hole inside of the firebowl front panel ， B: Fix the lift stick and lift handle ， C: Fix the lift stick using hinge pin and R pin D: Align the hole in the end of the Lift stick with the holes in the “U”...
- Page 13 Assembly Instructions Step 10 Fix the bottle opener the firebowl front panel using 15mm bolts Step 11 Fix the lower hinges with the firebowl back panel using 35mm bolts...
- Page 14 Assembly Instructions Step 12 Fix the crank lock ， crank handle washer and crank handle using M6 nut Step 13 Fix the firebowl front door on the firebowl front panel...
- Page 15 Assembly Instructions Step 14 Fix the ash pan handle the ash pan using 15mm bolts Put the ash pan under the firebowl. Step 15 Fix the hooks on the side table using 15mm bolts...
- Page 16 Assembly Instructions Step 16 Fix the side table on the right front leg and right rear using 15mm shoulder bolts Fix the side table on the left front leg and right rear leg using 15mm shoulder bolts Step 17 Fix the temperature gauge on the lid...
- Page 17 Assembly Instructions Step 18 Fix the handle on the lid using 30mm bolts Step 19 Fix the air vents on the using 15mm bolts and M6 nuts...
- Page 18 Assembly Instructions Step 20 Fix the upper hinges on the using 35mm bolts Step 21 Fix the upper hinges the lower hinges using lid pins and R pins...
- Page 19 Assembly Instructions Step 22 Fix the warming rack the lid using 30mm bolts Step 23 Place the cast iron cook- ing grills the firebowl.
- Page 20 Shopping Centre, Upper Galwally, Belfast, United Kingdom, BT8 6FX. Argos Limited, 489-499 Avebury Boulevard, Milton Keynes MK9 2NW. Argos (N.I.) Ltd, Forestside Shopping Centre, Upper Galwally, Belfast, United Kingdom, BT8 6FX. Argos Distributors (Ireland) Limited, Unit 7, Ashbourne Retail Park, Ballybin Road, Ashbourne, County...
