Assembly and Operating Instructions for

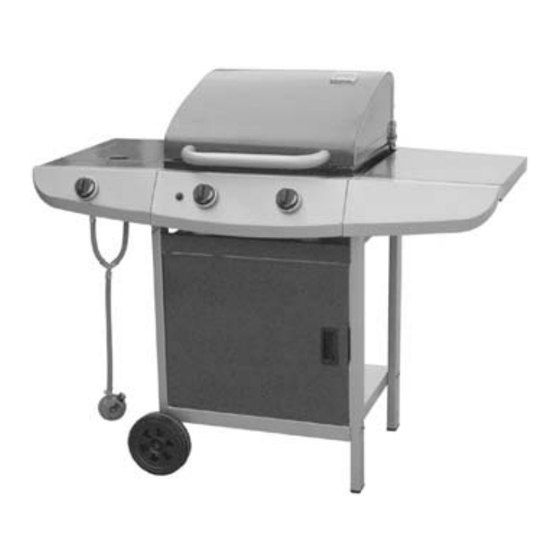

Deluxe 2 Burner Gas Barbecue with Side Burner
Drawings are not to scale.
Specifications subject to change
without prior notice.
• For outdoor use only. Not for commercial use.
• Use only Propane regulator 37mbar .
• Read instructions before using the appliance. Failure to follow
instructions could result in death, serious bodily injury, and/or property
loss.
• Warning: accessible parts may be very hot. Keep young children away.
• Do not move the appliance during use.
• Turn off the gas supply at the gas bottle after use.
• Any modification of the appliance, misuse, or failure to follow the
instructions may be dangerous and will invalidate your warranty. This does not
affect your statutory rights.
• Retain these instructions for future reference.
WARNING
• Leak test your barbecue annually. Check the hose connections are tight and leak
FOR YOUR SAFETY
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. Open barbecue lid or hood.
4. If odour continues, discontinue use and contact
your local dealer.
Check the box and make sure you have all the parts and fittings listed. If not, contact your local store or the
Helpline
Argos Distribution Limited
Avebury, 489-499 Avebury Boulevard
Saxon Gate West, Central Milton Keynes, MK9 2NW
www.argos.co.uk
THG2203
test them each time you reconnect the gas bottle.
0844-335-0229
who will be able to help you.
FOR YOUR SAFETY
1. Do not store or use petrol or other flammable
vapours or liquids in the vicinity of this or any
other appliance.
2. A gas bottle not connected for use shall not be
stored in the vicinity of this or any other
appliance.
0359
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Argos THG2203
Summary of Contents for Argos THG2203
- Page 1 Argos Distribution Limited Avebury, 489-499 Avebury Boulevard Saxon Gate West, Central Milton Keynes, MK9 2NW www.argos.co.uk Assembly and Operating Instructions for Deluxe 2 Burner Gas Barbecue with Side Burner THG2203 Drawings are not to scale. Specifications subject to change 0359 without prior notice.
-
Page 2: Parts List
A. Parts List Quantities vary according to model purchased. Specifications subject to change without prior notice. For more details on hardware, please see the corresponding Hardware Reference Diagram for your barbecue model. Deluxe 2 Burner CODE PART with Side Burner Hood (Pre-assembled to Body) Hood Handle Heat Indicator and Nut... -
Page 3: Parts Diagram
B. Parts Diagram Quantities vary according to model purchased. Specifications subject to change without prior notice. For more details on hardware, please see ‘Hardware Reference Diagram’. Check the box and make sure you have all the parts and fittings listed. If not, contact your local store or the 0844-335-0229 Helpline who will be able to help you. - Page 4 C. Hardware Reference Diagram Specifications subject to change without prior notice. D6, D7 D5, D7 Tools Required (not supplied) • Cross Head Screwdriver • Adjustable Spanner Unit:mm Check the box and make sure you have all the parts and fittings listed. If not, contact your local store or the 0844-335-0229 Helpline who will be able to help you.
- Page 5 D. Assembly TOOLS NEEDED FOR ASSEMBLY: Medium size flat blade or Philips/crosspoint screwdriver, adjustable spanner or metric spanner set Please lay out all nuts and bolts and check lengths before assembling. Whilst every care is taken in the manufacture of this product, care must be taken during assembly in case sharp edges are present.
- Page 6 Stand the trolley assembly upright. Attach the Trolley Support (C12) to front legs using M6x15 Bolts (D5) as shown. Make sure that the hole provided to fix the door on trolley support bottom is located on left. Attach the Drip Tray Right Bracket (B10) onto right legs using two ST4.0x10 Screws (D2) as shown.
- Page 7 Place the Hood (A1) and Barbecue Body (B1) assembly in position and fix it onto trolley assembly using M6x40 Bolts (D6) as shown. (Two more people are required ) Attach the Side Shelf Fascia (C11) onto Side Shelf (C10) using M6x15 Bolts (D5) and M6 Nuts (D7) as shown.
- Page 8 Attach the side shelf assembly onto barbecue body using M4x10 Bolt (D4) and M6x15 Bolts (D5) as shown. M4x10 Bolt M6x15 Bolt Connect main burner hose of Side Burner Valve / Hose / Regulator Assembly (B5) onto barbecue body as shown.
- Page 9 Attach the side burner shelf assembly onto barbecue body using M4x10 Bolt (D4) and M6x15 Bolts (D5) as shown. M4x10 Bolt M6x15 Bolt Unscrew the retaining screws from side burner valve. Fix side burner valve onto Side Burner Shelf Fascia (C2) using the retaining screw as shown.
- Page 10 Unscrew the retaining screw from Side Burner (C4). Feed the venturi tube of the side burner through the hole in the side burner shelf, and slide the end of the venturi tube over the outlet of the valve. Fix side burner onto bottom of side burner shelf using the retaining screw as shown.
- Page 11 Attach the Front Door (C13) onto trolley assembly as shown. Insert the fixed pin into hole in Trolley Base (C14). Depress the spring pin while sliding the pin into Trolley Support (C12) until it snaps in position as shown. Lay Flame Tamers (B8) and Cooking Grills (B7) as shown. Note: Place the flame tamers into barbecue body.
- Page 12 Place the Warming Rack (A4) in position within Hood (A1) as shown. Fix the Drip Tray Handle (B11) onto Drip Tray (B12) using ST4.0x10 Screws (F) (D3) as shown, then slide the drip tray underneath the barbecue body completely. Note: Do not remove drip tray during use. Check the box and make sure you have all the parts and fittings listed.
- Page 13 ASSEMBLY IS NOW COMPLETED. PROCEED TO THE NEXT PAGE FOR INSTRUCTIONS ON OPERATION AND MAINTENANCE. Important- Please ensure the gas hose is free of kinks, twists and from its transit position. IMPORTANT - LEAK TESTING BEFORE USE, FAILURE TO CHECK AND PERFORM THE LEAK TEST COULD CAUSE SERIOUS INJURY, AND DAMAGE THE BARBECUE.
-
Page 14: Installation
E. Important Information directly under the barbecue. Gas bottles should never be stored or used laid on their side. Never Please read these instructions carefully before store gas bottles indoors. assembly and use. For optimal performance, we suggest the following: Retain these instructions for future reference. -
Page 15: Operation
G4. Fixing the Regulator to the Gas Bottle below. • Confirm all barbecue control knobs are in the off After ignition, the burner should be burned at position. Connect the regulator to the gas bottle the high position for 3-5 minutes in order to according to your regulator and bottle dealer’s preheat the barbecue. -
Page 16: Care And Maintenance
to make sure that the burner is turned to the low between use or storage, they should be cleaned with position to prevent burning of the food and damaging a brass wire brush and re-oiled and cured. the barbecue. Avoid lifting the hood unnecessarily as heat is lost every time the hood is opened. -
Page 17: Technical Specifications
J. Technical Specifications NOTE: Heat Injector Model Burners Approval Input Size Deluxe 2 Burner 0359 7.92kW 1.05mm with Side Burner 359BT904 0359 Side Burner 2.78kW 0.85mm 359BT904 Gas/Pressure: Propane/37mbar Gas Consumption: 770g/hr Countries of Use: GB, IE 3+(28-30/37) Specifications are subject to change without prior notice. Check the box and make sure you have all the parts and fittings listed. -
Page 18: Troubleshooting
K. Troubleshooting Problem Possible Cause Solution Burners will not light using LP gas bottle is empty Replace with full bottle the ignition system Faulty regulator Have regulator checked or replace Obstructions in burners Clean burners Obstructions in gas jets or gas hose Clean jets and gas hose Electrode wire is loose or disconnected Reconnect wire...
