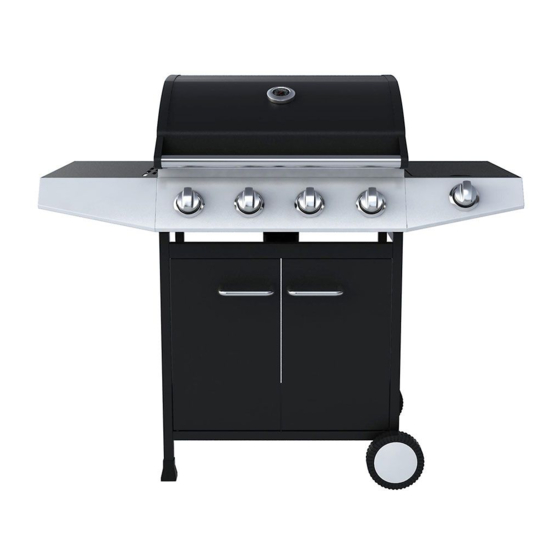

Premium 4 Burner Gas BBQ
Dimensions
Width - 123.5cm
Depth - 56.7cm
Height - 107.5cm
Important -
Please read this instructions fully before using the appliance
If you need help or have damaged or missing parts, call the Customer Helpline: 03456 400800.
Please visit the website www.argos.co.uk for more information.
Please keep for future reference
287/6847
304/8739
Issue 1 - 03/09/14
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Argos 287/6847
Summary of Contents for Argos 287/6847
- Page 1 Height - 107.5cm Important - Please read this instructions fully before using the appliance If you need help or have damaged or missing parts, call the Customer Helpline: 03456 400800. Please visit the website www.argos.co.uk for more information. Issue 1 - 03/09/14...
- Page 2 Safety and Care Advice Important - Please read this instructions fully before using the appliance Assembly time: approx. 45 mins. • Retain these instructions for future reference. • This product is for outdoor use only. Do not use indoors. • Do not use the barbecue or store gas bottles below ground level.
- Page 3 Safety and Care Advice The maximum dimension of the gas bottle is dia 31.5cm and height 58cm. 1= maximum diameter 2= maximum height Never mount the gas bottle under the barbecue on the base shelf as this could result in serious injury to the user, other people and/or property.
- Page 4 Safety and Care Advice Operation Warning Before proceeding, make certain that you understand the IMPORTANT INFORMATION section of • this manual. Your barbecue is not designed to be used with more than 50% of the cooking area as a solid plate — •...
- Page 5 Safety and Care Advice Push in and turn the control knob anti-clockwise until you feel resistance pause 4 seconds. Then • continue turning the control knob until a click is heard and the burner is lit. If the burner fails to ignite after above procedure, turn the knob to the OFF position and close the gas •...
- Page 6 Safety and Care Advice When flare-ups do occur, they can usually be extinguished by applying baking soda or salt directly onto the flame tamer. Always protect your hands when handling anything near the cooking surface of the barbecue and take care to protect yourself from the flames. If a fat fire occurs, please see the instructions given below.
- Page 7 Safety and Care Advice Cooking Surfaces & Warming Rack When the barbecue has cooled, clean with hot soapy water. To remove any food residue, use a mild cream cleaner on a non-abrasive pad. Do not use scouring pads or powders as they can permanently damage the finish.
- Page 8 Safety and Care Advice Barbecue Hood or Lid Use a non-abrasive cloth or pad and clean with hot, soapy water. Do not use scouring pads or powders as they can permanently damage the finish. Trolley Wipe with a cloth wrung out in hot soapy water and dry. Fixings All screws and bolts, etc.
- Page 9 If you have damaged or missing components, Components - Parts call the Customer Helpline: 03456 400800 Please check you have all the panels listed below Warming rack x 1 Cooking grill x 2 Grill Assembly x 1 Heat tent x 4 Grease cup x 1 Side burner grate x 1 Side table assembly x 1...
- Page 10 Components - Parts Please check you have all the panels listed below Cart left side panel Cart right side panel Bottom shelf assembly x 1 assembly x 1 assembly x 1 Door handle x 2 Door transom x 1 Left front door x 1 Right front door x 1 Wheel x 2 Wheel cap x 2...
- Page 11 Components - Fittings Please check you have all the panels listed below Note The quantities below are the correct amount to complete the assembly. : : : : 35mm Bolt x 6 10mm Bolt x 6 12mm Bolt x 24 Axle nut x 2 Tool required Philips screwdriver...
-
Page 12: Assembly Instructions
Assembly Instructions Step 1 Put the cart left side panel assembly on the bottom shelf assembly using 12mm bolts Check the orientation of the panel assembly and fix the bolts tightly by the screwdriver. FRONT Step 2 Put the cart right side panel assembly on the bottom shelf assembly... - Page 13 Assembly Instructions Step 3 Fix the door transom FRONT on the front leg of the left side panel assembly and the front leg of the right side panel assembly using 12mm bolts Step 4 Insert the wheels to the front leg and the rear leg of the cart right side panel assembly using the axle...
- Page 14 Assembly Instructions Step 5 Fix the leg caps to the front leg and rear leg of the cart left side assembly using 35mm bolts Fix the bolts tightly by the screwdriver. FRONT Step 6 Fix the cart rear support on the rear leg of the left side panel assembly FRONT and the rear leg of the right...
- Page 15 Assembly Instructions Step 7 Fix the grill assembly the cart left side panel assembly and the cart right side panel assembly using 35mm bolts Fix all the bolts of step 6 and step 7 tightly by the screwdriver. FRONT Step 8 Fix the door handle the left front door right front door...
- Page 16 Assembly Instructions Step 9 Place the door post of the left front door on the bottom shelf assembly Repeat the step fix the right front door. Depress the spring post on the bottom of the door transom Then align the hole in the top of the door with the spring post.
- Page 17 Assembly Instructions Step 11 Screw 4pcs of 12mm bolts onto the right side of the grill assembly Have half of the bolt threads go into the bolt holes. Do not tighten at this stage. Align the 12mm bolts properly with the side burner assembly Fix the bolts tightly by the screwdriver after the...
- Page 18 Assembly Instructions Step 13 Fix the 10mm bolt the side burner panel Note: Do not tighten the bolts. Hang the side burner panel on the side burner assembly Slide the 10mm bolt leftwards until the panel is fixed on the side burner assembly Fix the side burner panel on the main control panel...
- Page 19 Assembly Instructions Step 14 Fix the side burner valve on the side burner panel using those two screws loosen on procedure 14a. Align the side burner venturi against the valve. Important: Make sure the valve tip goes into the burner venturi completely with good alignment.
- Page 20 Assembly Instructions Step 15 Put the side burner knob on the side burner panel Step 16 Put the side burner grate on the side burner assembly and align with the holes.
- Page 21 Assembly Instructions Step 17 Put the heat tent cooking grill and warming rack on the grill assembly Step 18 Put the grease cup at the bottom of the grill assembly...
- Page 22 Assembly Instructions Step 19 Assembly is complete. ALL JOINTS AND CONNECTIONS MUST NOW BE LEAK TESTED BEFORE USING THE BARBECUE. Leak test annually, and whenever the gas bottle is removed or replaced. Always place the gas bottle at the left hand side of the appliance.
- Page 23 Side Burner Heat Input Gas Consumption 1085 g/h Country of Destination GB and IE Do not use this barbecue outside Great Britain and Ireland. This barbecue grill is imported by: Argos Limited 489-499 Avebury Boulevard Saxon Gate West Milton Keynes MK9 2NW...
-
Page 24: Troubleshooting
Troubleshooting Problem Possible Cause Solution Burner will not light LP gas cylinder is empty Replace with full cylinder using the ignition Faulty regulator Have regulator checked or replace system Obstructions in burner Clean burner Obstructions in gas jets or gas hose Clean jets and gas hose Electrode wire is loose or disconnected Reconnect wire...
