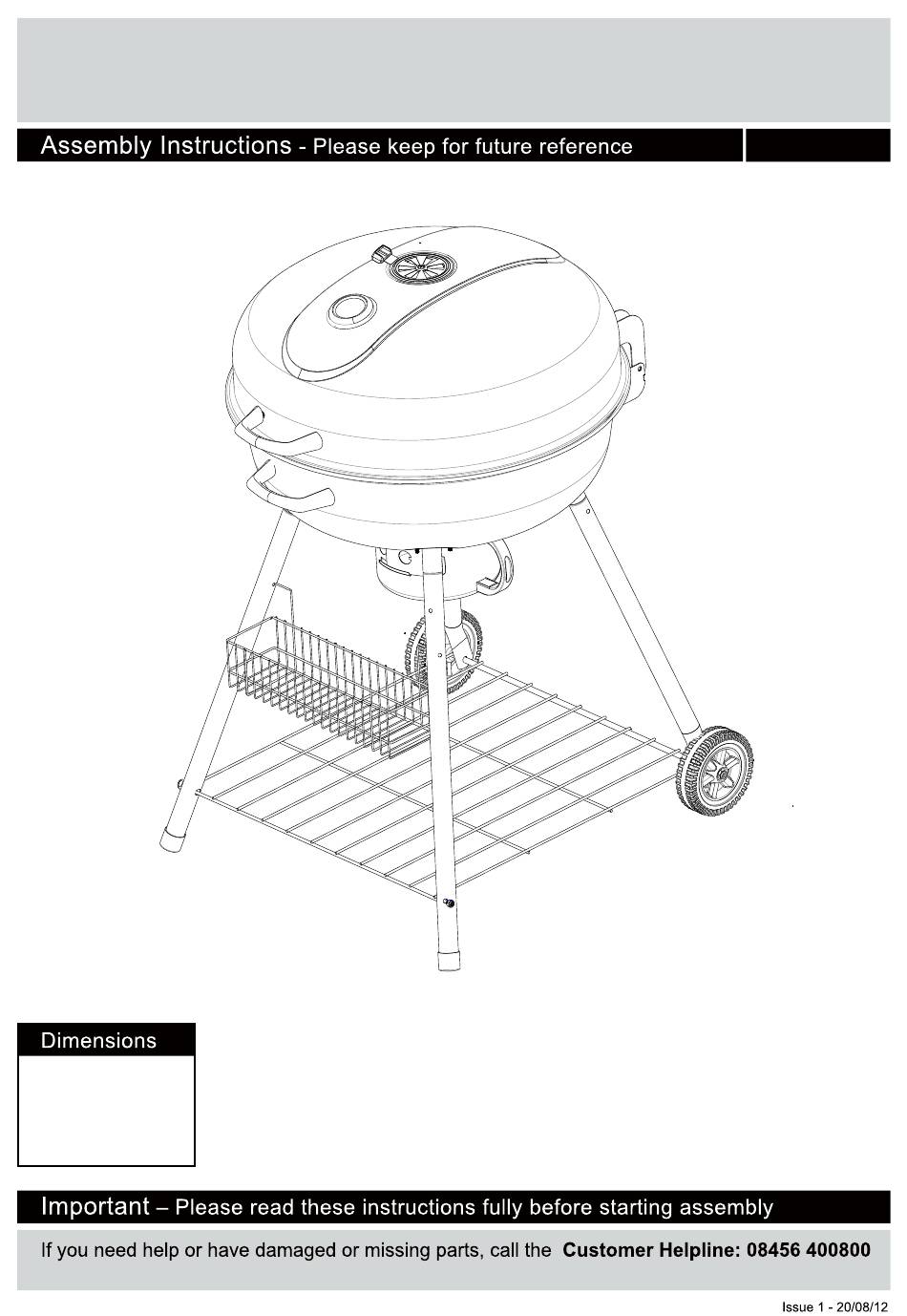

- Page 1 66 CM KETTLE BBQ 2901365 Width - 70cm Depth - 77cm Heitht - 110cm...
- Page 5 Ash Catcher Handle...
- Page 6 M6*13 Screw x 24 M5*10 Screw x 1 M6*33 Screw x 4 Aluminum Washer M6 Nut x 22 M5 Wing Nut x 1 -M6(Small) x 14 Flat washer-M10 x 2 M8 Lock nut x 2 M10 Lock nut x 2 Aluminum Washer Hinge Pin x 2 Cotter Pin x 2...
- Page 7 Step 1 Attach handle 4 to lid 1 with two M6x13 screw A, two aluminum washers Tighten with screwdriver. Step 2 Attach lid vent 2 to lid with one M5x10 screw B and one M5 wing nut E as shown. Tighten screw and nut with screwdriver.
- Page 8 Step 5 Attach the leg connector 15 to bottom bowl 12 with twelve M6x13 screws A , twelve Aluminum washer L and twelve nuts D , Tighten with screwdriver and hex wrench Step 6 Attach handle to bottom bowl 12 with two M6x13 screws A , two aluminum washer F .
- Page 9 Step 8 8-1: Align axle holes in wheel legs 17 during assembly. Wheel legs attach to the rear of the bottom bowl, at the end opposite the handle. 8-2: Slide the top end of each stationary leg 16 & wheel leg 17 through a leg connector 15 .
- Page 10 Step 10 10-1: Set lid 1 onto bottom bowl 12 and align hinge pins J . 10-2: Slide higne pins J through holes in hinges. 10-3: Slide one cotter pin K through hole at end of each hinge pin. 10-4: Cotter pins should be tunked into place.
- Page 11 Step 13 13-1: Attach ash catcher handle 20 to ash catcher 13 with two M6 nuts D , two aluminum washer F , tighten with wrench. 13-2: slide ash catcher into bottom bowl from right side of the grill. Step 14 Set Condiment Rack 14...
