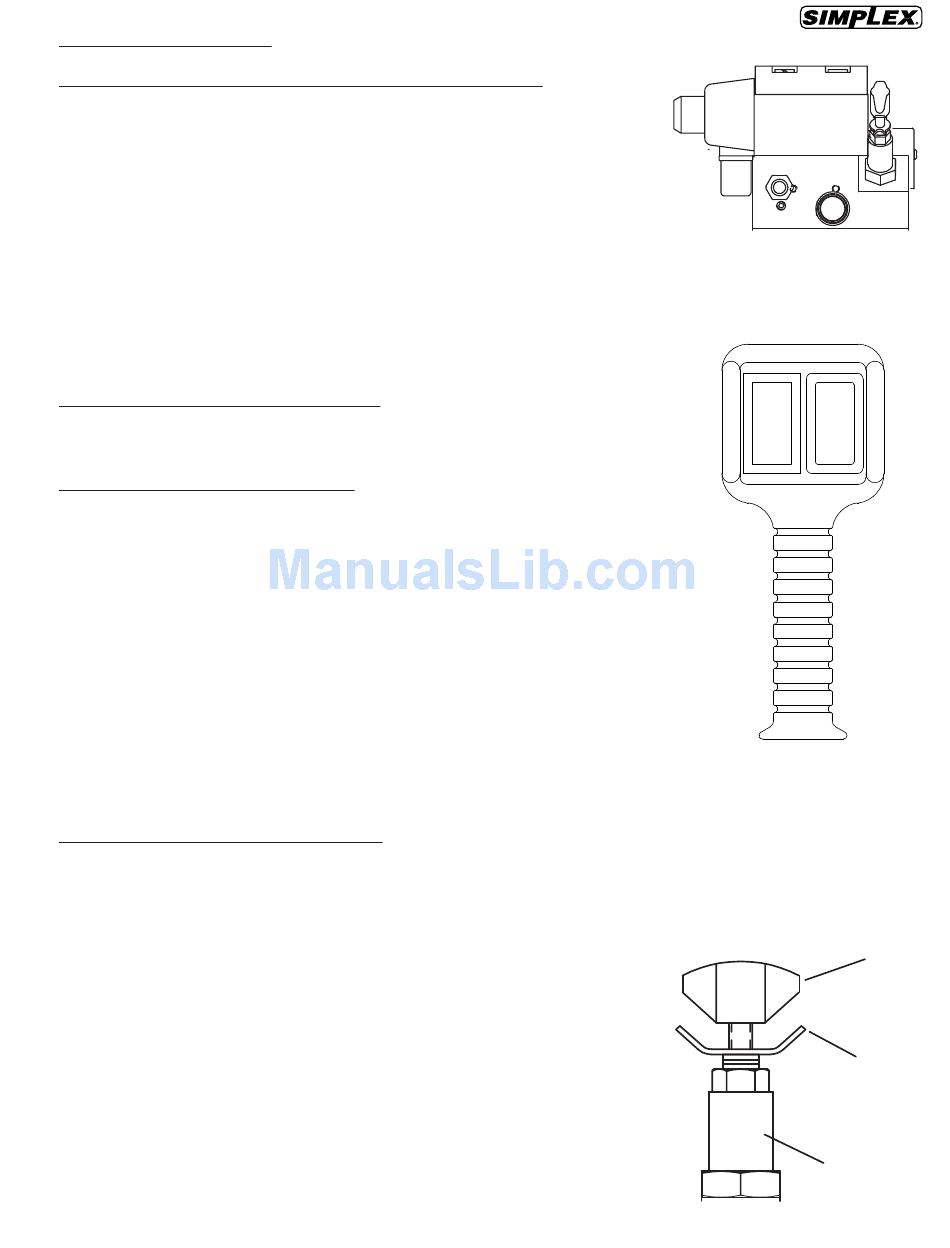

5.0 CONTROL VALVES

2-Postion – 4 Way Solenoid Valve for Hydraulic Torque Wrenches.
To Advance......depress the Advance Switch
•
To Retract.........release advance switch to Retract Tool.
•

5.1 POWER CONTROL SWITCHES

Remote pendant.
Configured with motor control pendant:
ADVANCE = Press and hold switch to turn motor on.
Energizes ADV. Coil.
ON = Press switch to turn motor on.
OFF = Press switch to turn motor off.
NOTE: In the event multiple buttons are depressed for longer than 5 seconds,
the unit is programmed to shut down. To restart, you will need to depress the
motor "ON" to continue, or unplug / re-plug the unit into power supply, then
depress the motor "ON" to continue.

5.2 PRESSURE TORQUE SETTING

WARNING: Make these adjustments BEFORE putting torque wrench on nut
or bolt head. The pump pressure setting may be above the pressure needed to
provide the required torque for your application. Exceeding required torque will
cause equipment damage and may lead to serious personal injury.
1. See torque wrench instructions for amount of pressure required
to produce desired torque.
2. Loosen lock nut and back out relief valve to prevent unintended
pressure build up.
3. Turn pump on. Press and the "ADVANCE" switch, and read
pressure gauge.
4. While holding the switch, turn relief valve in (clockwise) to increase pressure
or out (counter-clockwise) to
decrease maximum pressure. Repeat until correct pressure is obtained.
5. Tighten lock nut on the relief valve to maintain setting.
6. Run pump several times to test this setting before setting tool on the nut.
••• 5 •••
2 Position - 4 Way Solenoid
Motor/Valve Control Pendant
ON
OFF
JOG
Adjusting Knob
Lock Nut
Valve Assembly
