Initial Power- -Up - Carrier INFINITY ZONING CONTROL Installation Instructions Manual

transformer. Applying 24VAC isolation relay coil to furnace or fan
coil HUM and COM terminals will allow the Infinity Zone Control
to automatically energize the HUM output during a call for
humidification. The N.O. relay contacts will be used to energize the
humidifier. See fan powered humidifier installation instructions for
more details.
CAUTION
!
EQUIPMENT HAZARD
Failure to follow this caution may result in equipment damage.
Do not apply 24VAC fan powered humidifier (with internal
power supply) direct to indoor unit HUM and COM terminals.
INITIAL POWER- - UP
NOTE:
Refer to Functional Overview (Fig. 15) to become
familiar with key function buttons such as "System On/Off",
"Zone", "Fan", "Left- -Side" and "Right- -Side" buttons, etc. These
function buttons will be used frequently during setup.
Zone
ZONE
Button
Left-Side
Button
Time (+/-)
Button
Hold
Button
HOLD
SCROLL
SCHEDULE VACATION
Schedule & Vacation
Program Buttons
PROGRAM
Up/Down
Scroll Buttons
Schedule Vacation
to program to start/end
temperature vacation
schedule
Scroll
up & down

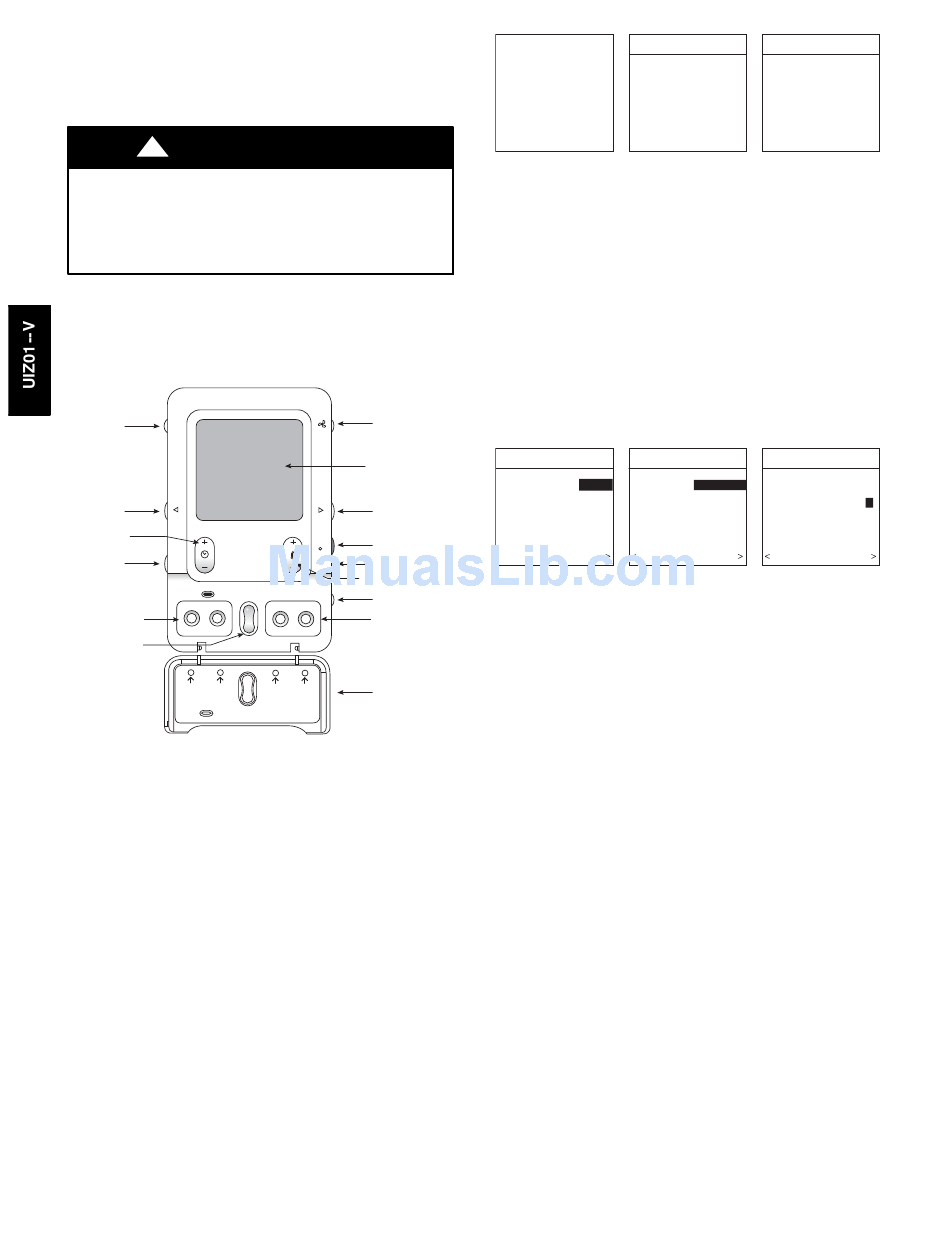

Fig. 15 - - Functional Overview
Power Up Sequence
This section addresses initial power up (or commissioning) of a
new Infinity Zone Control. The User Interface will communicate
and identify all Infinity components in the system. The following
is a typical example for a communicating Variable- -Speed Furnace
/ Fan Coil with a 2- -stage Air Conditioner / Heat Pump (including
Hybrid Heat).
The User Interface display will light up and indicate that it is now
"ESTABLISHING COMMUNICATIONS WITH EQUIPMENT
PLEASE WAIT". The User Interface will automatically continue
by "SEARCHING FOR
"SEARCHING FOR OUTDOOR EQUIPMENT" (See Fig. 16).
Once the indoor and outdoor equipment has been found, the
Installer will be asked to select Accessories. Packaged Products
will be automatically identified and the Installer will be asked to
select Accessories. Proceed to Selecting Accessories.
Fan Button
Display Screen
(LCD)
Right-Side
Button
HEAT
Heat Button
Cool Button
COOL
Temperature
(+/-) Button
System
On/Off Button
BASIC
ADVANCED
Basic & Advanced
Setup Buttons
SETUPS
Basic Advanced
Flip Down
to set time, for all other
Door
humidity settings
A04038
EQUIPMENT", followed
ESTABLISHING
COMMUNICATIONS
WITH EQUIPMENT
PLEASE WAIT
SOFTWARE
VERSION
Fig. 16 - - Power Up Sequence
NOTE: If the variable- -speed indoor equipment (furnace or fan
coil) cannot be found, the User Interface will display "CANNOT
COMMUNICATE WITH INDOOR UNIT". This MUST be
corrected before the initial power up sequence can continue. If
indoor unit is found, but outdoor unit is not found, "OUTDOOR
UNIT NOT IDENTIFIED" will appear. Proceed to the next section
for Outdoor Unit Identification.
Selecting Outdoor Unit
If there is no communicating outdoor unit, the screen, shown in
Fig. 17, will appear. Press either Left or Right Up/Down button to
select AC (air conditioner), HP (heat pump), or None (no unit
installed). Press right- -side button to continue to next screen.
OUTDOOR UNIT
NOT IDENTIFIED
SELECT TYPE: NONE
NONE, AC, HP
PRESS +/- TO MAKE
SELECTION
CONTINUE
Fig. 17 - - Selecting Outdoor Unit
If either AC or HP has been selected as the outdoor unit type, the
middle screen will appear (See Fig. 17). Press either Left or Right
Up/Down button to select appropriate Btu size of outdoor unit,
then press right side button to continue. If a NIM (Network
Interface Module) is applied for non- -communicating two- -stage
outdoor equipment, select 1 or 2- -stage compressor operation, and
press right- -side button to continue.
NOTE: Range of outdoor unit Btu selection is limited by model
number of indoor unit installed. The Infinity Zone Control will not
allow an outdoor unit size that is not supported by the installed
indoor unit.
NOTE: On new system installations, the model and serial number
will be recognized and displayed. On any indoor/outdoor board
replacements, the equipment will be recognized but the exact
model/serial number will not be displayed.
Selecting Indoor Evaporator Coil
If a furnace is installed with a variable capacity heat pump, a screen
will appear to select the installed indoor evaporator coil. This
selection is used to adequately calculate refrigerant charge required
by
while in the Heat Pump Charging screens under the Heat Pump
Checkout menu. Select "other" for non- -Carrier evaporators.
Selecting Electric Heater
If the equipment is a fan coil, packaged heat pump, or packaged
AC and the electric heater is not self- -identifying, "ELECTRIC
HEATER NOT IDENTIFIED" will appear (See Fig. 18). Press
either Left or Right Up/Down button to select appropriate size of
electric heater installed, then press right- -side button to continue.
An asterisks (*) will appear next to electric heater sizes that may
cause excessive airflow.
6
INDOOR UNIT OUTDOOR UNIT
SEARCHING FOR SEARCHING FOR
INDOOR EQUIPMENT OUTDOOR EQUIPMENT
WORKING WORKING
OUTDOOR UNIT OUTDOOR UNIT
ENTER HEAT PUMP HEAT PUMP
SIZE 36000 BTU
ENTER NUMBER OF
SPEEDS, 1 or 2:
18000 TO 60000 BTU
PRESS +/- TO MAKE PRESS +/- TO MAKE
SELECTION SELECTION
BACK CONTINUE BACK
A03195
1
CONTINUE
A03196
