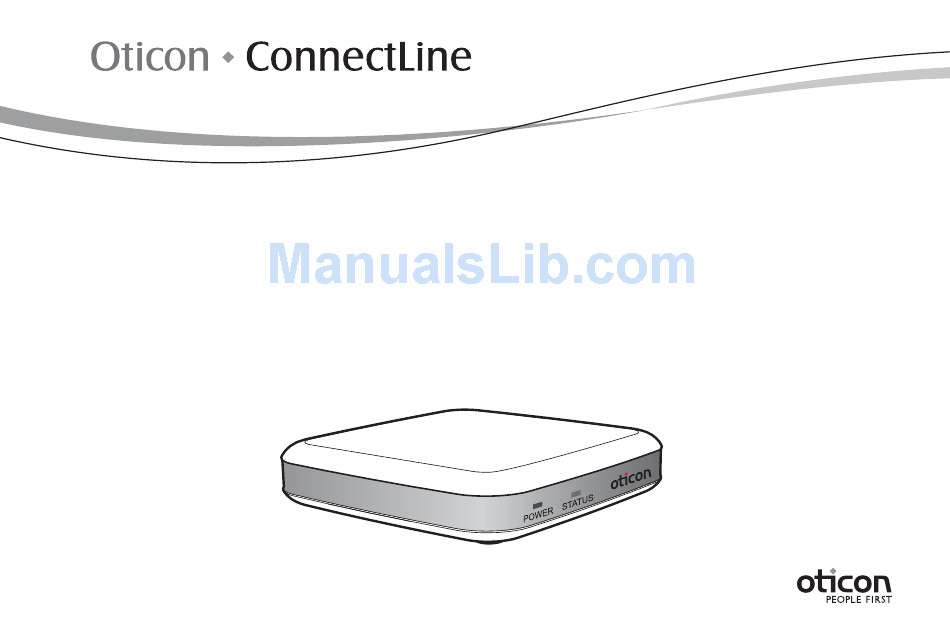

  • Page 1 INSTALLATION GUIDE ConnectLine TV Adapter Getting started...

  • Page 2: Purpose Of This Guide

    PURPOSE OF THIS GUIDE READ THIS FIRST Before your hearing instruments can receive sound from the TV, the adapter must be connected to the TV and a power outlet. This is an easy step-by-step guide through the installation of the TV adapter. All needed parts for the installation are included in the package.

  • Page 3: Tv Adapter Overview

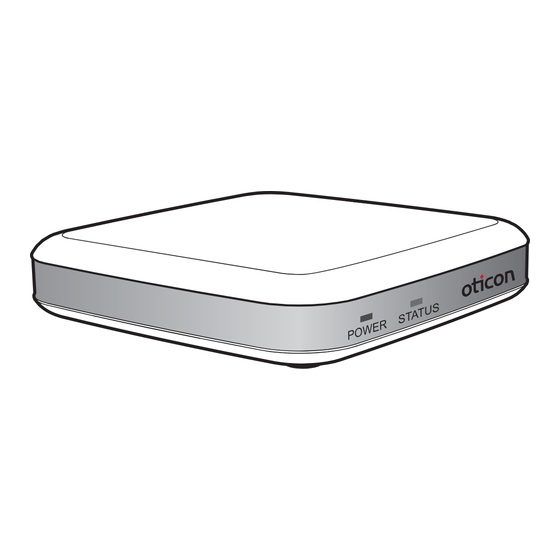

    TV ADAPTER OVERVIEW Back Front TV connection Mic. connection Power connection POWER INDICATOR STATUS INDICATOR Light Meaning Light Meaning Solid Green Power on Solid Orange Connected to Streamer and Off Power off streaming TV sound Off Stand-by Flashing Pairing...

  • Page 4: Connecting To Power

    CONNECTING TO POWER STEP ONE Connecting Power Adaptor to TV adaptor. Use the Power adapter from box no. 1. – Plug the power adapter into the wall socket or another power source. – Plug the power cord into the power connection marked A. –...
  • Page 5 CONNECTING TV CORD TO AUDIO OUTPUT TERMINAL STEP TWO Connecting the TV adapter to the TV. Use the TV cord from box no. 2. – Connect the black plug on the TV cord to the port marked B. – Connect the red and white connectors to the “AUDIO OUT” terminals on the TV. –...
  • Page 6 ALTERNATIVE INSTALATION INFORMATION If the TV does not have an AUDIO OUTPUT terminal, the jack adaptor found in box 3 should be used for connecting the TV cord. Note: This adaptor plugs into the HEADPHONE jack of the TV in which case only the person wearing the hearing aids will hear the sound.

  • Page 7: Option 1: Headphone Connection

    OPTIONAL JACK ADAPTER INSTALATION OPTION 1: HEADPHONE CONNECTION If connecting the TV box to the “AUDIO OUTPUT” jack is not possible for your TV, there are two alternative hook ups available. The JACK ADAPTOR and MICROPHONE are found in box 3. JACK ADAPTOR –...

  • Page 8: Option 2: Microphone Installation

    OPTIONAL MICROPHONE INSTALLATION OPTION 2: MICROPHONE INSTALLATION MICROPHONE INSTALLATION The TV cord is not used and must be removed from connector marked B. – Connect the microphone cord to the TV adaptor “marked C”. – Place the microphone on the TV speaker. Using the adhesive pad, attach the microphone where the richest sound is found.
  • Page 9 PREPARE STREAMER FOR TV LISTENING PAIRING The very fi rst time your Streamer is used with the TV adapter, the two devices must be paired together. Unlocked PAIRING: 1. When pairing, the devices must be placed close together. Place the Streamer right next to the TV adapter.

  • Page 10: International Warranty

    You can however watch TV with the Streamer plugged into its power cord. by the limited warranty and may void it. For further support or tips you can check the ConnectLine information on www.oticon.com/connectline The above warranty does not aff ect any legal rights that you might have under applicable national legisla- tion governing sale of consumer products.

  • Page 11: Product Approval Precautions And Markings

    Changes or modifi cations not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Oticon hereby declares that this TV adapter, TV 75-01 is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.
  • Page 12 WARNINGS The TV adapter is not a toy and therefore should be kept out of the reach of children and anyone else who might swallow parts or otherwise cause injury to themselves. Special attention should be paid to the smaller components in order to prevent children from swallowing them and choking.
