Summary of Contents for oticon ConnectLine
- Page 1 Order Number : GETEC-C1-12-289 FCC Part 15 subpart C 1 / 1 Test Report Number : GETEC-E3-12-100 Page APPENDIX H : USER’S MANUAL EUT Type: Bluetooth Analog Telephone adapter FCC ID.: UXZBSH200...
- Page 2 InstructIons for use InstallatIon guIde 0000122272000001...
- Page 3 Indication for use Thank you for choosing our product as your means to better hearing. The Phone adapter is intended to be used together with the Oticon Streamer and Oticon wireless hearing instruments. To support your efforts, we have put great care and attention into making sure that your new Phone adapter has the highest quality and is easy to use and maintain.
-
Page 4: Table Of Contents
contents Package content Phone adapter overview Warnings Installation Connecting the Phone adapter to a power outlet Connecting to phone line and landline phone Pairing the Streamer to the Phone adapter Technical information Important notIce Please familiarise yourself with the entire contents of this booklet before using your Phone adapter. -
Page 5: Package Content
package content Phone adaptor 2.0 – what is in the box The Phone adaptor box consists of the following elements: placeHolder placeHolder Phone adaptor Power supply Phone cable placeHolder placeHolder når forsider er InstructIons for use streamer Pro InstructIons for use streamer Pro godkendt og der ikke sidder placeholder på... -

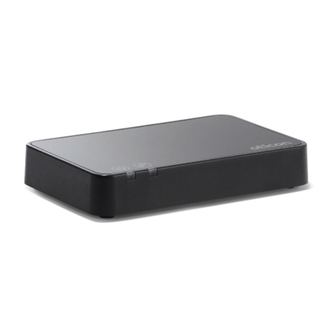

Page 6: Phone Adapter Overview
Phone indicator Power supply Condition Power indicator Phone indicator To PSTN wall plug Power On, no connection to the Streamer ConnectLine in/out* Pairing with the Streamer To landline phone The Streamer is wirelessly connected Incoming call Phone conversation Fault condition... -
Page 7: Warnings
Warnings Warnings You should familiarize yourself fully with the following general warnings and the entire • The Phone adapter is not a toy and therefore should be kept out of the reach of contents of this booklet before using your Phone adapter. children and anyone else who might swallow parts or otherwise cause injury to themselves. -
Page 8: Installation
Installation Activating the Phone adapter for the first time Before you can use the landline phone solution together with your hearing instruments, the Phone adapter must be connected to a power outlet and the public telephone line. This is a step-by-step guide on how to install the Phone adapter. All needed parts for the installation are included in the package. -
Page 9: Connecting The Phone Adapter To A Power Outlet
connecting the phone adapter to a power outlet Box 1 Use the power supply with USB cable from box no. 1 1. Plug the USB connector into the “power” connector on Phone adapter 2. Plug the power supply into the mains wall socket or another power source 3. -
Page 10: Connecting To Phone Line And Landline Phone
connecting to phone line and landline phone Box 2 Place the Phone adapter unit in a suitable spot near your landline phone or base station. 1. Unplug the phone line from the landline phone (or base station).* 2. Plug the phone line from the wall adapter into the Phone adapter “IN” connector. 3. -
Page 11: Pairing The Streamer To The Phone Adapter
pairing the streamer to the phone adapter The very first time your Streamer is used with the Phone adapter, the Streamer must be paired to the Phone adapter. For pairing: 1. Make sure the Phone adapter is powered on, i.e. the power indicator is steady green. Press the Streamer connect button (Streamer) or on/off button (Streamer Pro) for 5-6 seconds until the blue light starts blinking. - Page 12 Pairing Streamer Pro Streamer Pro Phone Description top status front adapter Streamer and Phone adapter on (1) Streamer in pairing mode (2) Pairing complete (4) Steady Steady Blinking...
-
Page 13: Technical Information
technical information Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. To comply with FCC RF The emission power from the Phone adapter is well below international emission limits exposure requirements, the device and the antenna for this device must be installed to for Human Exposure. - Page 14 This instrument contains a module with: These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio fre- FCC ID: UXZBSH200 (nye numre indsættes) quency energy and, if not installed and used in accordance with the instructions, may IC: 1350B-BSH200 cause harmful interference to radio communications.
- Page 15 IC statement Hereby, Oticon A/S declare that this Phone adapter is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. This device complies with Industry Canada licence-exempt RSS standard (s). Declaration of conformity is available at: Operation is subject to the following two conditions: 1) this device may not cause interference.
