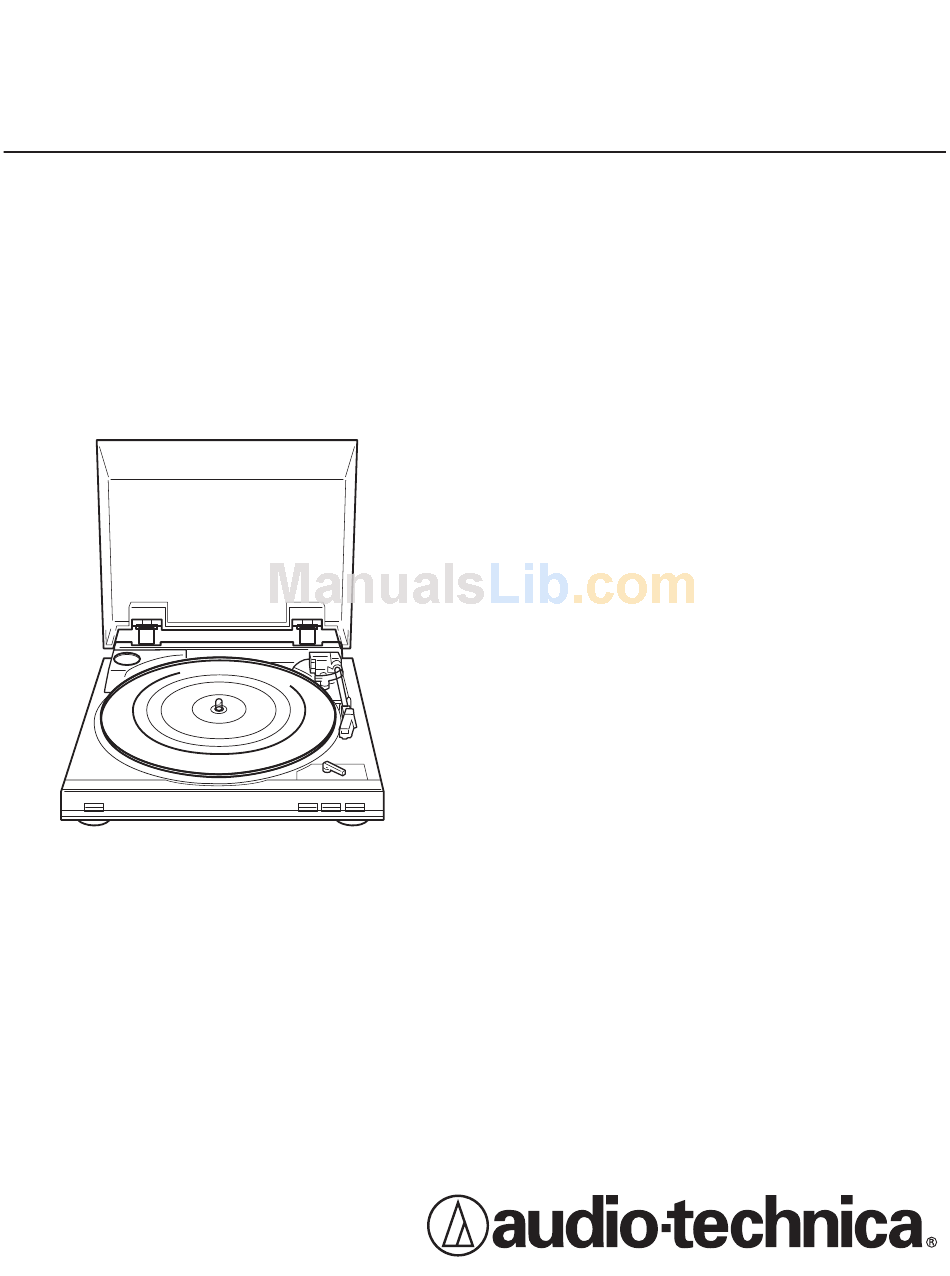

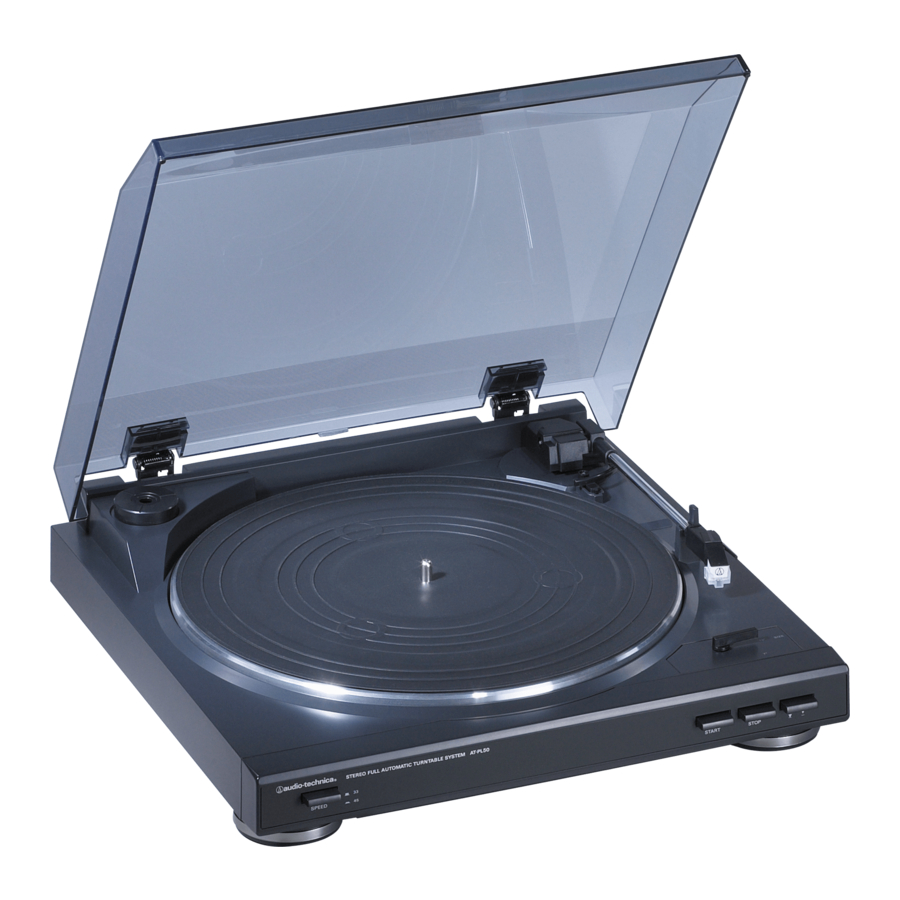

Automatic Stereo Turntable System AT-PL50 Installation and Operation...
Page 2
Référez tout réparation au personnel qualifié. Installation and Operation Thank you for purchasing the AT-PL50. Audio-Technica has been a leading manufacturer of innovative stereo phonograph products for more than 40 years. We are pleased to provide this turntable, with its excellent performance and many convenient features, for your enjoyment.
Figure 1 Inputs and pre-amp selector switch “AUX” Input Jacks Pre-amp Selector Switch Setting the Pre-amp Switch For increased flexibility of use, this turntable has an internal stereo phono pre-amplifier. The Pre-amp Selector Switch is located under the turntable platter, in the rear-center (Fig.
To use either adapter cable, connect the turntable's red and white RCA-type plugs to the cable adapter's RCA-type jacks. * When using either cable adapter, always set the AT-PL50 turntable’s Pre-amp Selector Switch to the “ON” position. (Switch is located under the AT-PL50 turntable platter.)
(Fig. 9b). Replace the stylus after 400 hours of use. To maintain original performance, insist upon a genuine Audio-Technica brand replacement stylus. Look for the Audio-Technica trademark ( ) on the front of the stylus assembly and on the packaging.
Turntable does not operate Make certain the turntable’s AC cord is plugged into an AC outlet, and that the AC outlet is “live.” Check the drive belt to make certain it is on correctly. (See Figure 10.) A) Remove the record mat from the turntable platter (Fig.
Troubleshooting, continued Turntable operates, but no sound at all The stylus guard is still in place. The tone arm Lift button is pressed in. Amplifier controls set incorrectly: wrong input select- ed, tape monitor on, speakers switched off, etc. Check the stylus on phono cartridge for correct place- ment.
Page 8
One-Year Limited Warranty Audio-Technica brand products purchased in the U.S.A. are warranted for one year from date of purchase by Audio-Technica U.S., Inc. ( A. T .U.S.) to be free of defects in materials and workmanship. In event of such defect, product will be repaired promptly without charge or, at our option, replaced with a new product of equal or superior value if delivered to A.
