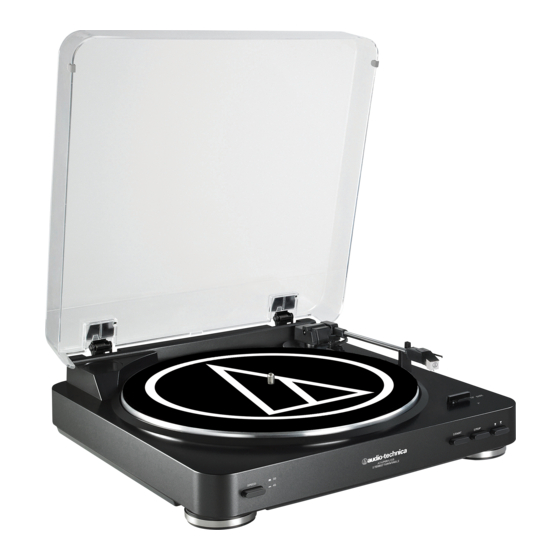

Audio-Technica USB Turntables Contents A note about software Your Audio-Technica AT-LP60-USB or AT-LP120-USB turntable is supplied with Audacity A note about software ....................... 2 recording software for your convenience. Please note that other third-party recording System requirements ......................2 software packages are also compatible with this turntable.
Installing Audacity software for MAC OSX and above 1. Before installing software, assemble the turntable, following directions in the 5. Turn your computer on. included Owners Manual. 6. Insert the included Audacity CD in your Mac’s CD drive. Open the CD icon on your 2.
Setting up your MAC (OSX and above) to work with your USB Turntable 1. Open the Audacity program. 3. Select Audio I/O tab at the top left. • Under Playback, Device, select Built-in Audio. 2. Select Preferences from the Audacity menu. •...
Page 5
Setting up your MAC (OSX and above) to work with your USB Turntable 4. Next, select Quality tab at the top. 5. Next, from the main Audacity window, select the drop-down box (arrow pointing • Default Sample Rate: 44100 down) next to the microphone at the right side of your screen. •...
Additional MAC audio settings We have set the Audacity playback and record settings. Now it’s time to set the separate Macintosh audio playback and record settings. 1. Go to Applications > Utilities > then select and open Audio MIDI Setup. 2.
Installing Audacity software for PC 1. Before installing software, assemble the turntable, following directions in the 5. Turn your computer on. included Owners Manual. 6. Insert the included Audacity CD. An Audacity window will appear. Click Audacity 2. Plug the AC cord on your turntable into an AC power outlet. Setup icon to install.
Setting up your PC (with Windows XP) to work with your USB Turntable 1. Close programs operating on your computer. • Select (double-click) Sounds and Audio Devices. Start menu > Control Panel > Sounds and Audio Devices • Begin at your Start menu.
Page 9
3. The following screen will pop up: 4. Select the Voice tab. • In the Voice playback area of the window, select your computer’s internal sound card (not USB Audio CODEC; Microsoft Sound Mapper). • In the Voice recording area of the window, select USB Audio CODEC.
Page 10
Setting up your PC (with Windows XP) to work with your USB Turntable 5. Next, select the Audio tab. • In the Sound playback area of the window, select your computer’s internal sound card. • In the Sound recording area of the window, select USB Audio CODEC.
Setting up your PC (with Windows Vista) to work with your USB Turntable Start menu > Control Panel > Sound. 3. Select the Recording tab. Make sure that the USB Audio CODEC is set as the Begin at your Start menu. Select Control Panel (classic view). default recording device.
Page 12
Setting up your PC (with Windows Vista) to work with your USB Turntable Select the Playback tab. Select your internal sound card speakers (these are usually the first listed). Click Apply; then click OK. Close your Control Panel.
Setting up your PC to work with Audacity 1. Launch the Audacity program from your Start menu. 3. Select Audio I/O tab at the top left. • Under Playback, Device, select your internal sound card. 2. Select from the Edit tab in the Audacity Menu. •...
Page 14
Setting up your PC to work with Audacity 4. Next, select Quality tab at the top. 5. Next, from the main Audacity window, select the drop-down box (arrow • Default Sample Rate: 44100 pointing down) next to the microphone near the middle of your screen. •...
Recording Albums with Audacity To get started with Audacity, follow the instructions below. For in-depth information How to record on recording and saving projects, please visit the on-line Audacity manual at http:// • Set your USB turntable up to play the song or album you want to record. audacity.sourceforge.net/manual-1.2/index.html Saving a project •...
Tourne-disques USB Audio-Technica Table des matières Remarque concernant les logiciels Pour votre confort, le tourne-disque Audio-Technica AT-LP60-USB ou AT-LP120-USB est Remarque concernant les logiciels ................. 16 accompagné du logiciel d’enregistrement Audacity. Veuillez noter que d’autres progiciels Configuration système requise ..................16 d’enregistrement sont également compatibles avec ce tourne-disque.
Français Installation du logiciel Audacity (instructions pour Mac Configuration de votre MAC (OSX et versions OSX et versions supérieures) supérieures) pour pouvoir utiliser le tourne-disque USB 1. Avant d’installer le logiciel, assemblez le tourne-disque en suivant les instructions du 1. Ouvrez le programme Audacity. Manuel de l’utilisateur fourni avec le tourne-disque.
Paramètres audio Macintosh supplémentaires Installation du logiciel Audacity — instructions pour PC Les paramètres de lecture et d’enregistrement d’Audacity sont maintenant configurés. Il 1. Avant d’installer le logiciel, assemblez le tourne-disque en suivant les instructions reste à définir les paramètres de lecture et d’enregistrement audio Macintosh séparés. du Manuel de l’utilisateur fourni avec le tourne-disque USB.
Français Configuration de votre PC (sous Windows XP) pour Configuration de votre PC (sous Windows Vista) pour pouvoir utiliser le tourne-disque USB pouvoir utiliser le tourne-disque USB 1. Fermez tous les programmes en cours d’exécution sur votre ordinateur. Start menu (Démarrer) > Control Panel (Panneau de configuration) > Sound (Son). Pour commencer, cliquez sur le menu Start (Démarrer).
Configuration de votre PC pour pouvoir utiliser Audacity Enregistrement d’albums avec Audacity 1. Lancez le programme Audacity à partir du menu Start (Démarrer). Pour prendre en main Audacity, suivez les instructions ci-dessous. Pour obtenir des infor- mations plus détaillées sur l’enregistrement de disques et de projets, consultez le manuel 2.
