BLDC Motor Theory

3.1 Digital Control of a BLDC Motor

Designer Reference Manual
18
Freescale Semiconductor, Inc.
The BLDC motor is driven by rectangular voltage strokes coupled with
the given rotor position (see Figure 3-2. Voltage Strokes Applied to
the 3-ph BLDC Motor). The generated stator flux interacts with the rotor
flux, which is generated by a rotor magnet, defines the torque and thus
the speed of the motor. The voltage strokes must be properly applied to
the two phases of the three-phase winding system so that the angle
between the stator flux and the rotor flux is kept close to 90°, to get the
maximum generated torque. Due to this fact, the motor requires
electronic control for proper operation.
Voltage
+U
DCB
Phase A
-U
DCB
+U
DCB
Phase B
-U
DCB
+U
DCB
Phase C
-U
DCB
30º 60º

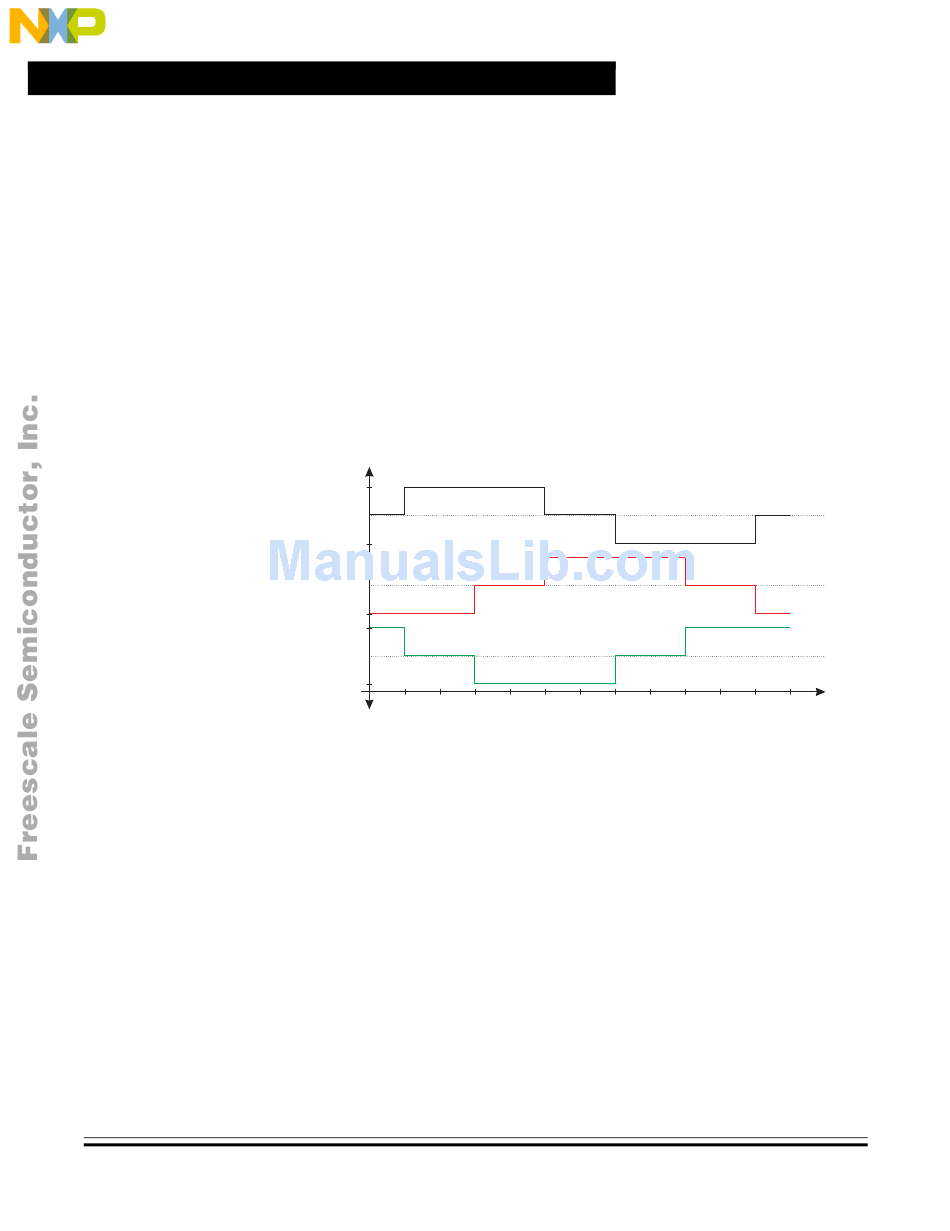

Figure 3-2. Voltage Strokes Applied to the 3-ph BLDC Motor
For the common 3-phase BLDC motor a standard 3-phase power stage
is used, as is illustrated in
The power stage utilizes six power transistors with switching in either the
independent mode or complementary mode.
BLDC Motor Theory
For More Information On This Product,
Go to: www.freescale.com
90º 120º 150º 180º 210º 240º
Figure 3-3. 3-phase BLDC Power
270º 300º 330º Electrical
angle
Stage.
