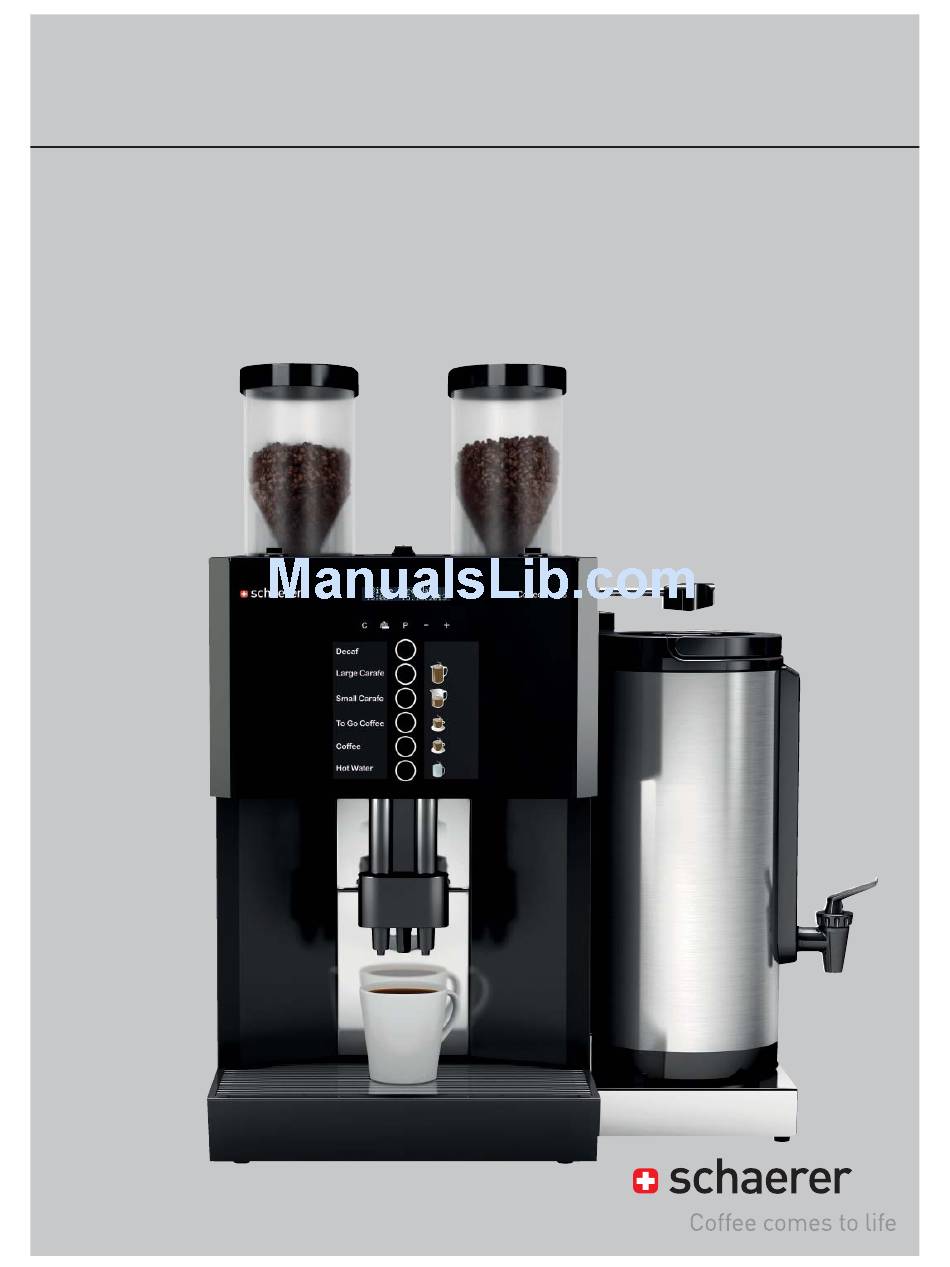

- Page 1 Schaerer Coffee Press User Manual | 06.2014 | v01 Models: 03.1210.8000 Coffee Press 03.1210.8001 Coffee Press with Brewing Arm...
- Page 2 All information, illustrations, and specifi cations are based on the latest product information available at the time of publication approval. Schaerer USA Corporation reserves the right to change the content at any time without prior notice.
- Page 3 Cautions & Warnings Cautions & Warnings USE CAUTION WHILE OPERATING AND CLEAN- ING THE SCHAERER COFFEE PRESS MACHINE WARNING: TO PREVENT ELECTRICAL SHOCK, DO NOT REMOVE SIDE OR BACK PANELS FROM THIS MACHINE. NO USER SERVICE- ABLE PARTS INSIDE. REFER SERVICING TO AUTHORIZED SERVICE PERSONNEL ONLY.
-
Page 4: Table Of Contents
Beverage Output - Sample Tips During Operation Maintenance Daily Cleaning - Staff Operated Daily Cleaning - Self Serve Weekly Hopper Cleaning Error Messages How to Get Help Warranty Information Appendix MSDS Schaerer Cleaning Tablets User Manual | 06.2014 | v01... -
Page 5: Machine Overview

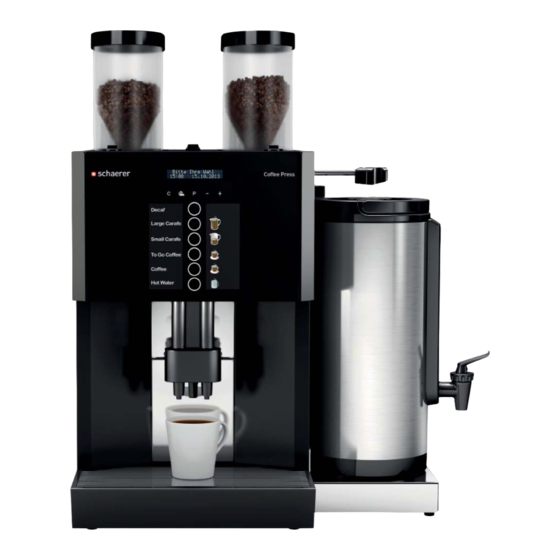

Introduction | Machine Overview Machine Overview Available Models Coffee Press Coffee Press Model #: 03.1210.8000 Model #: 03.1210.8001 Description: Coffee Press Description: Coffee Press with Brewing Arm User Manual | 06.2014 | v01 - 5 -... -
Page 6: General Overview
www.schaererusa.com Introduction | Machine Overview General Overview Dual bean hoppers each hold up to .77 kg (1.7lbs.) Decaf (left) and Regular (right) Cleaning tablet funnel LED display Coffee Press Optional brewing arm (for batch brewing) Beverage button panel (6 programmable options) ON/OFF switch (front panel bottom right corner) Urn*... - Page 7 www.schaererusa.com Introduction | Machine Overview Button Panel C icon - Cancel operation / entry and cancel beverage dispensing. Care icon - Start warm-up rinsing (press and hold for > 2 seconds. Access care and cleaning program. P icon - Access programs. Confi rm selection. Minus icon - Step back.
-
Page 8: Grounds Bin
Cleaning Tablet Funnel The cleaning tablet funnel is located between the two bean hoppers. Only Schaerer Cleaning Tablets should be dropped into this funnel during the cleaning procedure. Refer to pages 19-22 for daily cleaning instructions. Use only Schaerer Cleaning Tablets (item # 65221) for the daily cleaning procedure. - Page 9 www.schaererusa.com Introduction | Machine Overview Brewing Arm The brewing arm is located on the right panel. The brewing arm is for dis- pensing into a large container/urn*. When the brew arm is pulled out, all beverage buttons are inactive except for hot water. Dispensing may take several minutes depending on volume.
- Page 10 User Manual | 06.2014 | v01 - 10 -...
-
Page 11: Machine Accessories
www.schaererusa.com Introduction | Machine Accessories Machine Accessories Large Cleaning Brush (Item #67409) Cleaning Tablets (Item #65221) TO ORDER CLEANING SUPPLIES PLEASE CALL 888.989.3004 (PRESS 1, THEN PRESS 4) User Manual | 06.2014 | v01 - 11 -... -
Page 12: Utility Hook-Up Requirements
www.schaererusa.com Utility Hook-Up Requirements Utility Hook-Up Requirements 9” Clearance 2” Clearance each side 5” Clearance 22” 12 3/4” 7 1/8” 3 3/4” Coffee Press 31” 3 1/2” 2 3/4” 4” Clearance 4” 3” Diameter access hole located rear center of machine 1”... -
Page 13: General Operation
www.schaererusa.com Operation | General Operation General Operation Introduction This chapter describes the basic functions of the coffee machine. Read the instructions carefully to ensure smooth routine operation. Filling Bean Hoppers Only use whole beans in the bean hoppers! Never reach with your hands into the bean hoppers when the machine is switched on. -
Page 14: Switching Off The Coffee Machine
www.schaererusa.com Operation | General Operation Switching Off the Coffee Machine If the coffee machine is not used for longer periods, i.e. overnight, it can be switched off. 1. the ON/OFF button located on the bottom right corner of the front panel. -
Page 15: Beverage Output - Sample
www.schaererusa.com Operation | Beverage Output - Sample Beverage Output - Sample Regular Coffee and Decaf Coffee All beverages dispensed by the machine are extremely hot! Regular Coffee Decaf Coffee 1. Place cup under coffee spout. 1. Place cup under coffee spout and press the SMALL, MEDIUM or LARGE button. - Page 16 www.schaererusa.com Operation | Beverage Output - Sample Dispensing into Container Regular Coffee - Container Decaf Coffee - Container 1. Pull brewing arm outward then place and 1. Pull brewing arm outward then place and align container/urn* with brew arm. align container/urn* with brew arm. 2.
-
Page 17: Tips During Operation
www.schaererusa.com Operation | Tips During Operation Tips During Operation Always run the daily cleaning procedure Empty the grounds bin regularly and when when prompted by the machine display. prompted by the machine display. Rinsing it Refer to pages 19-22 for details. nightly will prevent caked-up grounds from forming. - Page 18 User Manual | 06.2014 | v01 - 18 -...
-
Page 19: Daily Cleaning - Staff Operated
Item# 65221 Item# 67409 • Touch to begin. • Touch to select “cleaning” from • Use only Schaerer cleaning sup- the menu. plies for this procedure. • If you pass “cleaning” continue touching until it appears again. If no selection is made withing 15... - Page 20 • Lift dome lid located between two • Remove loose grounds. • Place grounds container back. bean hoppers and drop in one Schaerer cleaning tablet. Close • Touch to continue. lid after dropping tablet. ■ • Touch to initiate cleaning.
-
Page 21: Daily Cleaning - Self Serve
Item# 65221 Item# 67409 • Touch and hold the blank area • Additional icons will appear above • Use only Schaerer cleaning sup- centered between the display and the product buttons. plies for this procedure. the product buttons for 5 seconds. - Page 22 • Lift dome lid located between two • Remove loose grounds. • Place grounds container back. bean hoppers and drop in one Schaerer cleaning tablet. Close • Touch to continue. lid after dropping tablet. ■ • Touch to initiate cleaning.
-
Page 23: Weekly Hopper Cleaning
www.schaererusa.com Maintenance | Weekly Hopper Cleaning Weekly Hopper Cleaning Read and follow the instructions carefully before you begin the weekly hopper cleaning procedure. This procedure should be performed on a weekly basis. Always protect hair with a hairnet before performing this procedure. Do not clean the bean hoppers in the dishwasher. - Page 24 User Manual | 06.2014 | v01 - 24 -...
-
Page 25: Error Messages
www.schaererusa.com Error Messages & Numbers Error Messages & Numbers Display Message Cause / Error Description Remedy • Appears when the machine is ready to your selection pls operate. Beverages can be dispensed. • The grounds container has been removed ► Reinsert the grounds container. (Cleaning program). - Page 26 www.schaererusa.com Error Messages & Numbers Display Message Cause / Error Description Remedy ► Replace or reseat the brewing unit. • Insert the brewing unit. If the message persists, call for service. ► Switch off the coffee machine. • Brewing unit lockup current / brewing unit stiff. ►...
-
Page 27: How To Get Help
Call 888.989.3004 (within the U.S. and Canada) or 562.989.3004 (outside the U.S. and Canada) Normal Business Hours During normal business hours, a Schaerer representative will answer your call directly. If all lines are busy, please leave a message according to the instructions you hear on the voicemail. Monday through Friday:... - Page 28 User Manual | 06.2014 | v01 - 28 -...
-
Page 29: Warranty Information
In general, manufacturer’s warranty covers malfunctioning of major components. If, during the warranty period (1 year from installation), a component does not work and needs to be replaced or repaired, Schaerer USA will cover time & materials for the service call. - Page 30 Schaerer USA will coordinate scheduling through its Service Vendors. In the event that the store or site does not make itself available for a PM visit, Schaerer USA reserves the right to void its obligation toward this visit and the warranty in general.
-
Page 31: Msds Schaerer Cleaning Tablets
Appendix | MSDS Schaerer Cleaning Tablets MSDS Schaerer Cleaning Tablets Product and Company Identification Product Name: Schaerer Espresso Machine Cleaning Tablets (an Urnex Brand product) General Use: For cleaning of super-automatic commercial espresso machines. Product Description: White circular tablet with “S” logo Manufacturer: Urnex Brands, Inc. - Page 32 Appendix | MSDS Schaerer Cleaning Tablets Appearance: White circular tablet Flash Point: Non-Flammable 10. Reactivity Stability: Stable. Hazardous Polymerization: Will not occur Incompatibility: Strong inorganic acids, strong oxidizers and reducing agents. Conditions to Avoid: Do not mix with inorganic acids, strong oxides and reducing agents. MIX WITH WATER ONLY.
- Page 33 www.schaererusa.com Notes Notes User Manual | 06.2014 | v01 - 33 -...
- Page 34 www.schaererusa.com Notes Notes User Manual | 06.2014 | v01 - 34 -...
