2.8

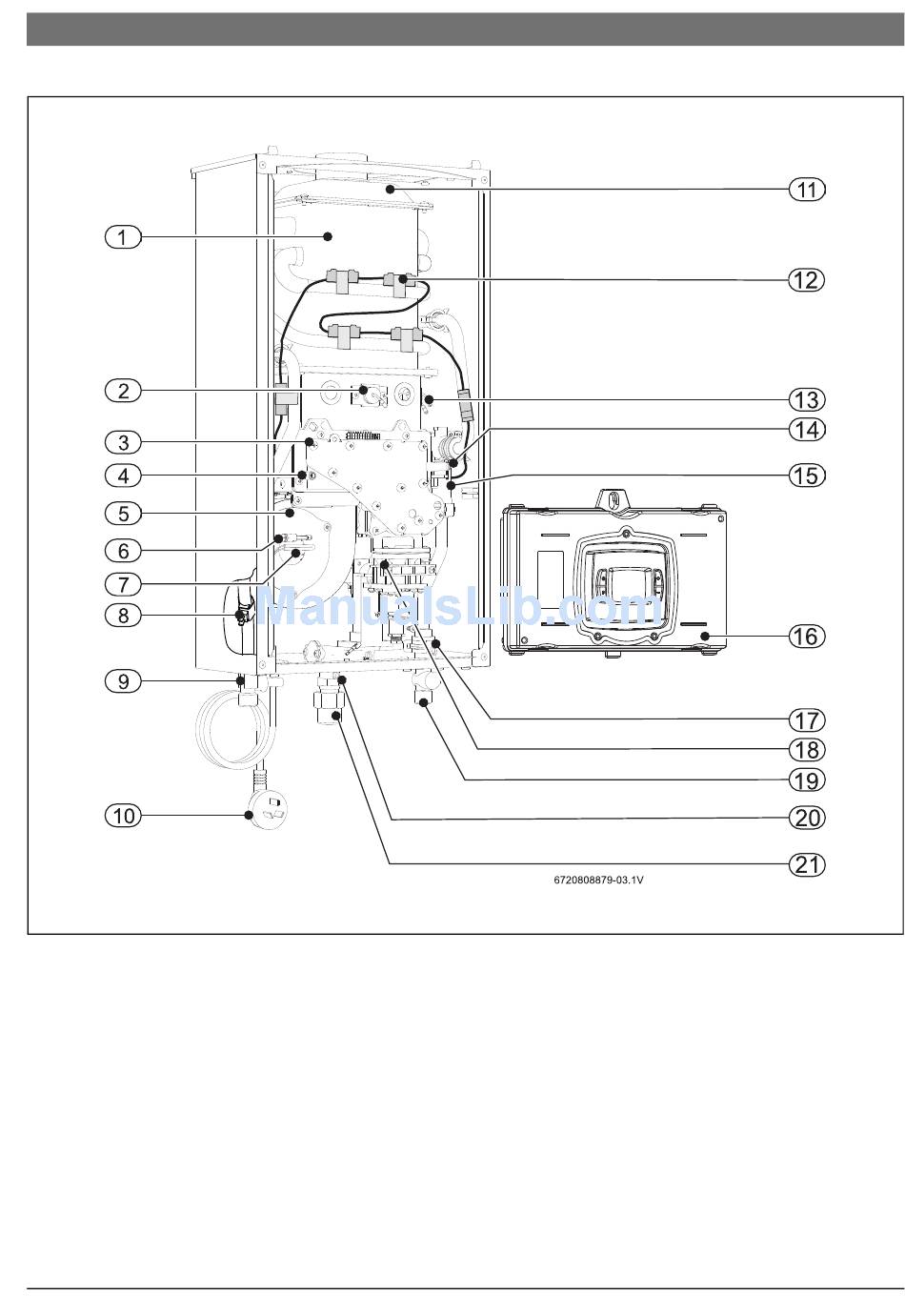

Appliance layout

Fig. 2
[1] Heat exchanger
[2] Flame sensor rod
[3] Burner
[4] Air pressure test point
[5] Fan
[6] Air temperature sensor
[7] Thermal fuse
[8] Hot water temperature sensor
[9] Hot water outlet
[10] Power cord and plug
[11] Combustion gas collector
[12] Frost protection device
Optiflow Professional
[13] Ignition electrode
[14] Burner pressure test point
[15] Water flow sensor and Water valve
[16] Electronic control unit
[17] Cold water temperature sensor
[18] Gas shut-off valve
[19] Cold water inlet
[20] Gas pressure test point
[21] Gas inlet
Product details | 7
6 720 810 560 (2016/06)
