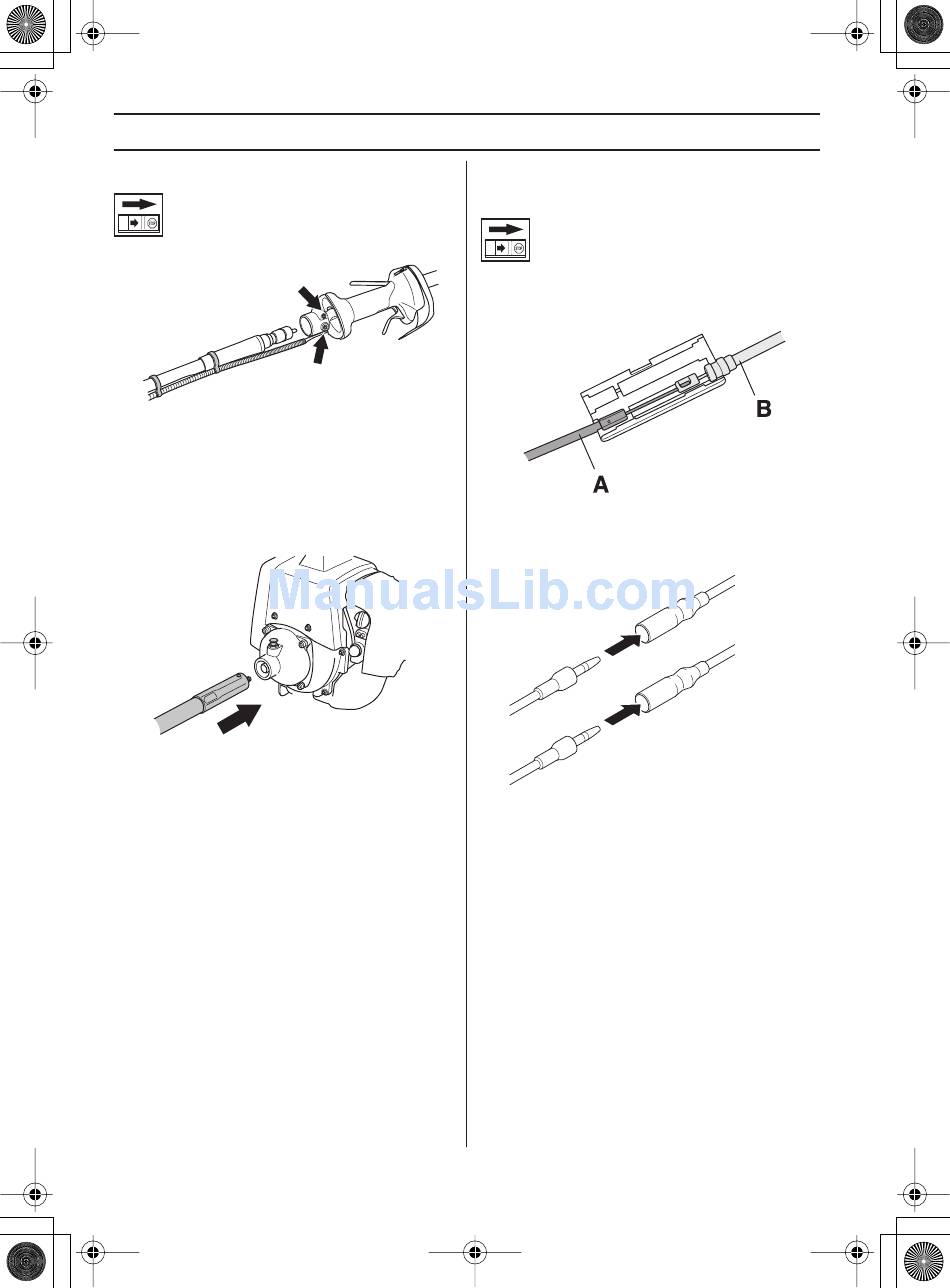

Fitting the flexible drive shaft
• Loosen two screws at the shaft coupling.
• Slide the flexible shaft through the loops at the
cabling, and fit the flexible shaft to the shaft coupling.
Make sure the shaft engages correctly by turning it
and pushing at the same time.
• Tighten the two screws.
• Install the drive shaft sleeve in the clutch cover so that
the hole is positioned directly underneath the locking
button on the clutch cover.
• Make sure the shaft engages correctly by turning it
and pushing at the same time.
• Make sure the locking pin returns to its original
position, so that the drive shaft sleeve cannot come off
the clutch case.
12 – English

ASSEMBLY

Connecting throttle cable and
stop switch wires
• Place the throttle wire from the cabling (A) and the
throttle wire from the engine (B) in the plastic sleeve
as shown.
• Close the plastic sleeve.
• Plug the stop switch wires into the matching
connectors from the engine. Note that wire polarity is
not important.
