Oper ator ′ s manual 操作手册 226HD G G G G B B B B ( ( ( ( 2 2 2 2 - - - - 2 2 2 2 0 0 0 0 ) ) ) ) Please r ead the operator’s manual carefully and make sure you understand the instructions before using the machine.
H1157096-38,226HD60S,GBCN.fm Page 2 Wednesday, September 2, 2015 2:08 PM KEY T O SYMBOLS Symbols W ARNING! Incorrect or careless use of Locking lever, handle adjustment a hedge trimmer can turn it into a dangerous tool that can cause serious or even fatal injury. It is extremely important that you read and understand the contents of this operator's manual.
H1157096-38,226HD60S,GBCN.fm Page 3 Wednesday, September 2, 2015 2:08 PM CONTENTS Contents Note the f ollowing before starting: KEY TO SYMBOLS Symbols ..............2 Please read the oper ator's manual carefully. CONTENTS Contents ............... 3 W ARNING! Long-term exposure to noise can result in permanent hearing Note the following before starting: ......
The business concept is to develop, manufacture and market motor-driven products for forestry and gardening, as well as for the building and construction industry. Husqvarna ′ s aim is also to be at the front edge for ergonomics, usability, security and environmental protection. That is the reason why we have developed many different features to add to our products within these areas.

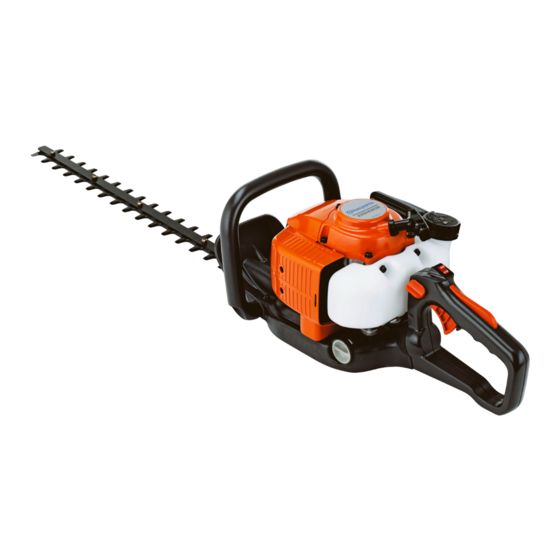

H1157096-38,226HD60S,GBCN.fm Page 5 Wednesday, September 2, 2015 2:08 PM WHA T IS WHA T? What is what? Operator ′ s manual 13 Rear handle Lubricant filler cap, gear 14 Throttle trigger Gear 15 Lock for handle Blades 16 Fuel tank Blade guard 17 Spark plug cap and spark plug Hand guard...
H1157096-38,226HD60S,GBCN.fm Page 6 Wednesday, September 2, 2015 2:08 PM GENERAL SAFETY PRECA UTIONS Impor tant W ARNING! Faulty blades can increase the risk of accidents. IMPORTANT! The hedgetrimmer is only designed for cutting branches Personal protective equipment and twigs. Never use a machine that has been modified in any way IMPOR TANT! from its original specification.
H1157096-38,226HD60S,GBCN.fm Page 7 Wednesday, September 2, 2015 2:08 PM GENERAL SAFETY PRECA UTIONS CLO THING the throttle control is automatically locked at the idle setting. Wear clothes made of a strong fabric and avoid loose clothing that can catch on twigs and branches. Always wear heavy, long pants.
Page 8
H1157096-38,226HD60S,GBCN.fm Page 8 Wednesday, September 2, 2015 2:08 PM GENERAL SAFETY PRECA UTIONS Stop s witch Regularly check the vibration damping units for cracks or deformation. Check that the vibration damping element is Use the stop s witch to switch off the engine. undamaged and securely attached.
Page 9
H1157096-38,226HD60S,GBCN.fm Page 9 Wednesday, September 2, 2015 2:08 PM GENERAL SAFETY PRECA UTIONS F or mufflers it is very important that you follow the Gear instructions on checking, maintaining and servicing your The gear housing gets hot when the machine has been in machine.
flames. • Ensure the machine is cleaned and that a complete • For best results and performance use HUSQVARNA service is carried out before long-term storage. two-stroke engine oil, which is specially formulated for our air-cooled two-stroke engines.
H1157096-38,226HD60S,GBCN.fm Page 11 Wednesday, September 2, 2015 2:08 PM FUEL HANDLING • Mix (shake) the fuel mixture thoroughly before filling • Ensure that the fuel is well mixed by shaking the the machine’s fuel tank. container before filling the tank. •...
H1157096-38,226HD60S,GBCN.fm Page 12 Wednesday, September 2, 2015 2:08 PM STARTING AND STOPPING Check before starting Cold engine Ignition: Set the stop switch to the start position. (Run position) Primer bulb: Press the air purge repeatedly until fuel begins to fill the bulb. The bulb need not be completely •...
Page 13
H1157096-38,226HD60S,GBCN.fm Page 13 Wednesday, September 2, 2015 2:08 PM STARTING AND STOPPING CAUTION! Do not pull the starter cord all the way out and do not let go of the starter handle when the cord is fully extended. This can damage the machine. Stopping The engine is switched off by moving the stop switch to the stop position.
H1157096-38,226HD60S,GBCN.fm Page 14 Wednesday, September 2, 2015 2:08 PM WORKING TECHNIQUES General working instructions • Never work from a ladder, stool or any other raised position that is not fully secured. IMPORTANT! This section takes up the basic safety precautions for working with a hedge trimmer.
Page 15
H1157096-38,226HD60S,GBCN.fm Page 15 Wednesday, September 2, 2015 2:08 PM WORKING TECHNIQUES • Check the working area for foreign objects such as • Hold the machine as close to your body as possible to electricity cables, insects and animals, etc, or other get the best balance.
MAINTENANCE Carburettor The blades must also remain stationary when the choke control is in the start throttle position. Your Husqvarna product has been designed and manufactured to specifications that reduce harmful emissions. WARNING! The complete clutch cover and gear housing must be fitted before...
H1157096-38,226HD60S,GBCN.fm Page 17 Wednesday, September 2, 2015 2:08 PM MAINTENANCE Contact your dealer to inspect the muffler. A blocked The spark plug should be replaced after about a month in mesh will cause the machine to overheat and result in operation or earlier if necessary.
Tighten the blade securing bolts. gun to top up with grease. This should be carried out after • Loosen the tightened blade securing bolts with a 1/2 - approximately every 50 working hours. Use Husqvarna 3/4 turns. special grease. •...
H1157096-38,226HD60S,GBCN.fm Page 19 Wednesday, September 2, 2015 2:08 PM MAINTENANCE Maintenance schedule The following is a list of the maintenance steps that must be performed on the machine. Most of the items are described in the Maintenance section. The user must only carry out the maintenance and service work described in this Operator's Manual.
H1157096-38,226HD60S,GBCN.fm Page 20 Wednesday, September 2, 2015 2:08 PM TECHNICAL DATA Technical data Technical data 226HD Engine Cylinder displacement, cm 23,6 Cylinder bore, mm 34,0 Stroke, mm Idle speed, rpm 3000±200 Max. engine output, acc. to ISO 8893 0,85/8500 Catalytic converter muffler...
