- Page 1 Megapixel Wireless IP camera with Night Mode & Audio Support V1.2 2018-06-21 As our products undergo continuous development the specifications are subject to change without prior notice ________________________________________________________________________________________________...
- Page 2 Please check with your local distributors for latest information. No part of this document can be copied or reproduced in any form without written consent from the company. Trademark DIGISOL is a trademark of Digisol Systems Ltd. All other trademarks are the property of the respective manufacturers.
-
Page 3: Table Of Contents
Wireless IP camera User Manual INDEX 1 Product Information........................4 1-1 Introduction & Safety Information..................4 1-2 Safety Information........................5 1-3Minimum Requirements......................5 1-4 Package Contents........................5 1-5 Camera Hardware Overview....................6 1-6 Camera Setup...........................6 2 Camera Configuration using Yoosee app...................7 3 Advanced Camera configuration using Yoosee app..............12 3-a) Date &... -
Page 4: Introduction & Safety Information

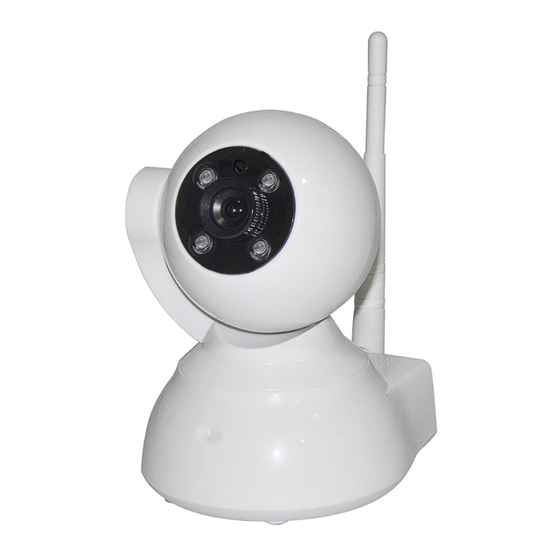

1-1 Introduction and safety information Thank you for purchasing DIGISOL IP cameras!! DG-SC3600W is a 1Megapixel Wireless IP camera with IR LED and IR-cut Filter. This camera offers the latest compression technology with a CMOS sensor & a real time image processing hardware. -
Page 5: Safety Information
Wireless IP camera User Manual 1-2 Safety Information In order to keep the safety of users and your properties, please follow the safety instructions as mentioned below. The warranty will become void if you disobey these safety instructions. This Network IP Camera is sophisticated electronic device; DO NOT drop it from a height. ... -
Page 6: Camera Hardware Overview
1-5 Camera Hardware Overview Antenna 4PCS IR Array Camera Lens Micro SD Slot Power connector A) Front View B) Rear View * On DG-SC3600W, reset hole is located on the bottom side of IP camera. 1-6 Camera Setup Over the WAN HOME... -
Page 7: Camera Configuration Using Yoosee App
Wireless IP camera User Manual 2 Camera Configuration using Yoosee App Please follow the instructions mentioned below to setup your new IP camera using the Yoosee app Download Yoosee app on your smartphone or tablet using the below QR code available on bottom side of an IP camera. - Page 8 Wireless IP camera User Manual Once the Email ID is registered, login to the app with same credentials. After login, it will display the app interface as shown above. Now turn ON the camera Once the camera boot up, it prompt’s a voice message to “connect the camera AP network”. Go to Wireless Settings on your Mobile phone.
- Page 9 Wireless IP camera User Manual It will display Camera AP SSID as “GW_AP_12132599” in available Wi-Fi network list as shown below:- Click on it to connect AP network. By default its an open network & will assign IP address in 10.X.X.X range.
- Page 10 Wireless IP camera User Manual Once you click on it, will prompt to select the desired Wi-Fi network along with password from the list as shown below:- Select the desired Wi-Fi network & feed in password detail. Then click Next. It will prompt a message to connect your mobile phone to same Wi-Fi network.
- Page 11 Wireless IP camera User Manual Connect your phone to same Wi-Fi network & then go to Yoosee app to proceed further. It will display ‘Add Device’ page as shown above. Once the connection is established, it will prompt the voice message as Device is Online & you can see the below screen in Yoosee app.
- Page 12 Wireless IP camera User Manual You can see the following icons as highlighted above below the IP camera live view. Also, you can change the video resolution to HD (High definition)/ SD (Standard Definition)/ LD (Low Definition) as highlighted on L.H.S of above image.
-
Page 13: Advanced Camera Configuration Using Yoosee App
Wireless IP camera User Manual 3 Advanced Camera configuration using Yoosee app You can click on settings icon as highlighted below to configure the advanced settings in Yoosee app. 3-a) Date & time You can set the Date & Time on IP camera using this option in app. -
Page 14: 3-B) Picture & Sound
Wireless IP camera User Manual You can view the IP camera version by clicking on ‘Device Info’ button. 3-b) Picture & Sound Setting You can view the Picture & Sound setting of IP camera view under this tab. -
Page 15: 3-C) Network Settings
Wireless IP camera User Manual 3-c) Network Settings You can view the network settings under this tab. 3-d) Alarm Settings Under this tab, you can enable Motions Detection & set the Alarm Message, Buzzer for event triggered by Motion Detection. - Page 16 Wireless IP camera User Manual Once you set the Alarm & Alarm Recording settings, click on defense icon as highlighted below under the Main Window of Yoosee app. IP camera will beep once you click this icon & lock the settings.
- Page 17 Wireless IP camera User Manual If you have set “Receive Alarm” for Motion Detection, it will display the alarm buzzer as shown below on your smartphone whenever motion is triggered by an IP camera. Clicking the highlighted icon will direct you to IP camera live view. If you click icon, it will disable the alarm push message for your smartphone.
-
Page 18: 3-E) Recording Settings
Wireless IP camera User Manual 3-e) Recording Settings You can set the Recording Mode under this tab ( i.e Manual/ Schedule/ Alarm-based Recording). The Micro SD card will be listed here. You can view the Used/ Available capacity of SD card under this tab. -
Page 19: 3-G) Firmware Update
Wireless IP camera User Manual 3-g) Firmware Update Under this tab, you can view if there is any update for an IP camera. 3-1) Other Menu In the Main interface of Yoosee app, there are other icons available which are described as below:- You can click the highlighted icon to edit the camera ID or delete the device. - Page 20 Wireless IP camera User Manual You can scan the QR code of device by clicking this icon in Yoosee app. You can view the recordings under the highlighted icon: If you have configured Alarm Recording, it will show the messages under this tab.
- Page 21 Wireless IP camera User Manual The captured snapshots can be viewed under this tab.
-
Page 22: 3-2) More Menu
Wireless IP camera User Manual 3-2) More Menu Under My tab, following options are displayed: 3-2-a) Account You can bind/ unbind the configured Email/ Phone Account & set the login password under this tab. -
Page 23: 3-2-C) Help & Feedback
Wireless IP camera User Manual 3-2-b) General Settings You can set the Alarm ring/ Alarm Vibrate for Motion Detection & also can configure Notification bar icon, automatically start option under this tab. 3-2-c) Help & Feedback: You can check the Help Section under this tab. -
Page 24: 3-2-D) About
Wireless IP camera User Manual 3-2-d) About You can check the app details & new function description under this tab. Latest version of Yoosee app adopts sharing algorithm to secure camera. The admin can use the QR code to share the device & only shared users can access your camera. The app will automatically create a guest password which only has permission to view video. - Page 25 Wireless IP camera User Manual After adding the camera to your smartphone, it will appear in your app device list. You will find a sharing button float on device entry as highlighted below: To share the camera with other people, click the sharing button. It will go to "Sharing management", where it offers sharing information and QR code to allow other users to add it by scanning this QR code.
- Page 26 Wireless IP camera User Manual You can share this link to Other users to add the camera via shared QR code/ link information as shown above. Once the user click on received link it will display the below screen if Yoosee application is not installed on user mobile phone &...
- Page 27 Wireless IP camera User Manual Click on ‘Go to Connect’ to add the shared device. Then click ‘ I get it’ to display the camera under Device list as shown below: NOTE: Only admin account can modify/ edit the IP camera settings & playback the recordings via Yoosee app.
-
Page 28: 3-2-E) Log Out
Wireless IP camera User Manual Accessing the camera's settings, you will find a new option "Unbind devices", don't unbind the device, unless you want to delete the camera from your account. Your camera will bind with your account, only this account can set the camera. This means if your camera is stolen by someone else, they are not able to use/ edit any settings on it. -
Page 29: 4Appendix
Wireless IP camera User Manual 4 Appendix 4-1 Specification Type DG-SC3600W Sensor ¼” CMOS Sensor Lens 3.6mm, Fixed Lens Min Illumination 0.3Lux IR Array 4PCS IR distance Up to 10m IR-Cut Filter Video Compression H.264 Max Resolution 1280 X 720 (1MP) Audio Support Yes;... -
Page 30: Troubleshooting
If you're trying to connect to the IP camera from Internet, please make sure the port that IP camera uses is not blocked by firewall or other software / hardware. Contact DIGISOL helpdesk, above solutions do not work. Image refreshes very slowly ... -
Page 31: Glossary
IR LED’s are triggered automatically for better visibility. This product comes with Two Years warranty. For further details about warranty policy and Product Registration, please visit support section of www.digisol.com...
