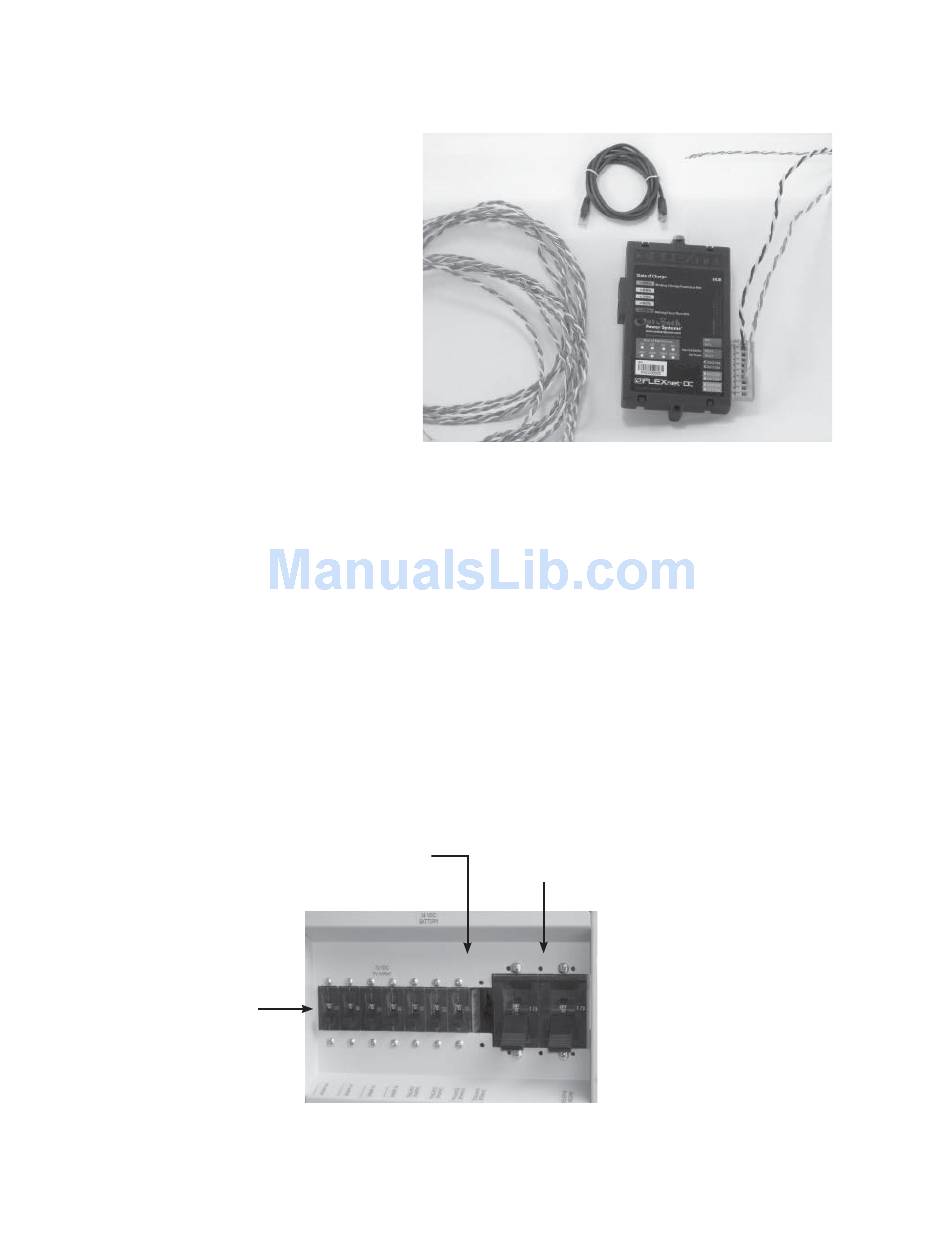

The FLEXNet DC package includes:
A. FLEXnet DC
B. Ten-pin wiring plug for shunt, relay
and battery connections
C. Six feet of CAT5 cable for HUB connection
D. Ten-foot color-coded twisted pair
(TP) cable connects to the battery
E. Three six-foot, color-coded,
twisted pair cables for shunt connections
F. Two #6-32 X 3/8" panhead
machine screws
G. Colored labels identifying shunts
Installing the FLEXnet DC
The FLEXnet DC mounts in a 3/4" DC breaker slot in an OutBack DC breaker bracket installed inside
a FLEXware enclosure or previous model OutBack enclosure. To mount the FLEXnet DC inside an
OutBack enclosure:
1.
Put the system into bypass mode
2.
Shut off all AC input to inverters
3.
Shut off all PV and DC breakers
4.
Disconnect the battery cables at the battery
5.
Remove the breaker bracket from its enclosure by removing the four corner screws
6.
Remove a DC breaker knockout
FLEXnet DC mounts in a DC breaker
slot after removing the breaker
knockout
PV breakers off
7
C
E
A
DC breakers off
D
E
B
