MATE Screens

MAIN-------------------------------
11:30:55A
SUM STATUS SETUP ADV
E
Battery Charging
State of charge 99%
DC NOW 12.5V
In 0.0A
Out 0.5A
Bat -0.5A
DC Today min/SOC
In 347AH
Out 331AH
Bat 16AH
Press to view
previous days' history
17
F
99%
0.000kW
0.000kW
0.000kW
76%
9.040kWH
8.510kWH
0.530kWH
Press to move
forward one day

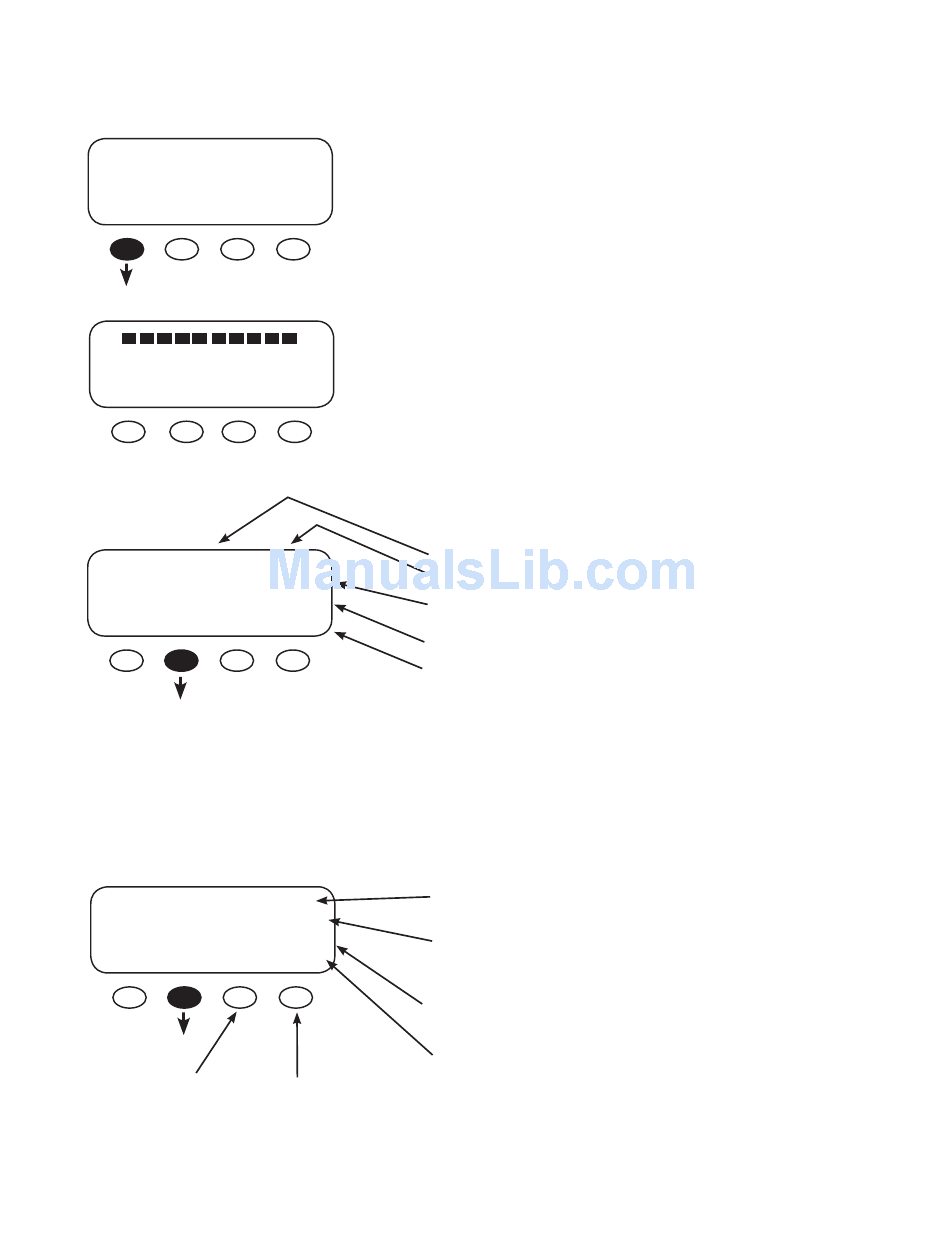

From the MAIN MATE menu, press the <SUM> soft key
to view a summary of the system's operation.
This fi rst summary screen appears for a few seconds
to display the battery State of Charge. The screen
automatically disappears and a system summary
screen appears.
• Battery voltage
• The current battery state-of-charge (SOC)
• In shows the amount of DC current coming into the
system from all sources
• Out shows DC current from the system
• Bat(tery) displays diff erence between the In and Out
values and shows whether the battery is storing or
using current
Press the second soft key to view the next SUM screen
(the screens will also scroll automatically after a user-
determined period of time programmed in the MATE).
• Minimum SOC today (since midnight)
• In: Amp hours and kiloWatt hours from sources
today
• Out: Amp hours and kiloWatt hours output by
system today
• Bat: Diff erence of battery in and out amp hours and
kiloWatt hours
Press the second soft key to view the next SUM screen
