Installation

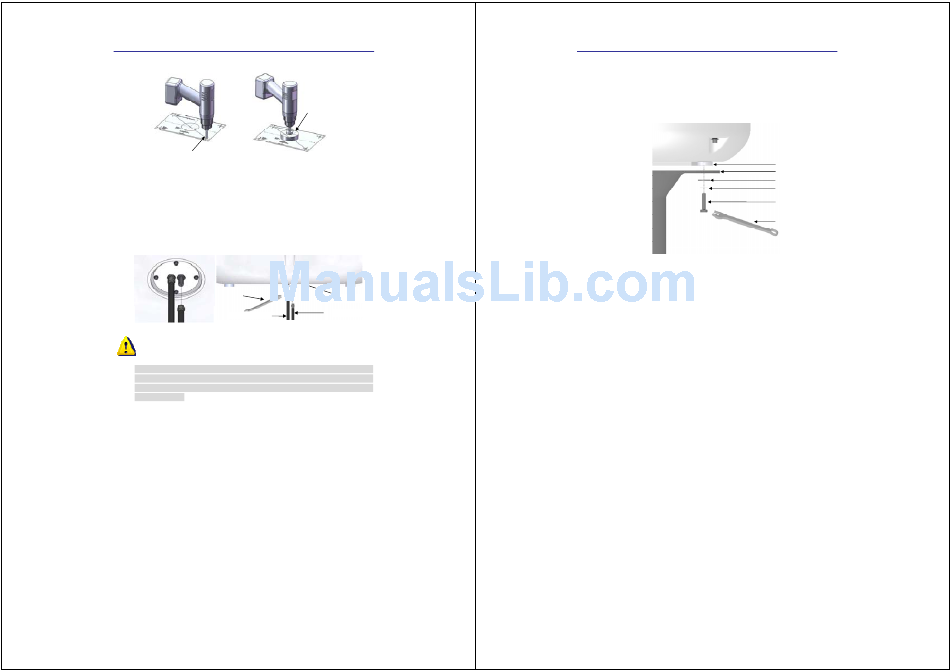

Securing hole for bolts and cable way
Ø10mm Drill
Make 4 bolt holes of 10mm diameter, one at each corner of a rectangle drawn
as above, and make a circular hole of 80mm diameter at the center of the
rectangle through which the cable will run.
Connection of RF cable
Remove the rubber protector from RF connector. Connect the RF cable to the
RF connector under the base plate through the access hole using a 11mm
spanner. Be careful not to tighten it too much, as you may damage the
connector.
11mm
Spanner
RF Cable
WARNING WARNING
Do not use excessive force when using the spanner, this will damage the
threads. Be careful that the connectors do not contact the mounting surface
of the antenna, this may cause a critical malfunction and serious damage to
the equipment.
13
ø80mm
Hole saw
Antenna Unit
Optional
14 i3/i4/i4P Satellite Antenna System – Install and User Manual
Mounting the antenna
Attach the antenna by using the hex head bolts (M8X35L), M8 spring
washers, and M8 flat washers supplied.
Antenna Unit Support
Deck
M8 Flat Washer
M8 Spring Washer
M8 Hex. Bolt
13mm Spanner
