Installation

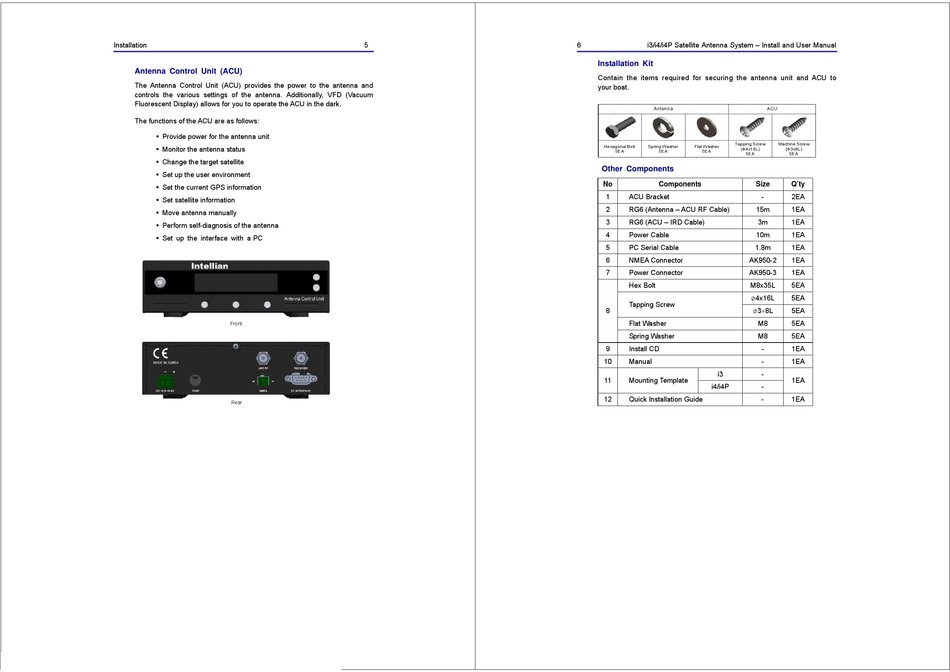

Antenna Control Unit (ACU)
The Antenna Control Unit (ACU) provides the power to the antenna and
controls the various settings of the antenna. Additionally, VFD (Vacuum
Fluorescent Display) allows for you to operate the ACU in the dark.
The functions of the ACU are as follows:
 Provide power for the antenna unit
 Monitor the antenna status
 Change the target satellite
 Set up the user environment
 Set the current GPS information
 Set satellite information
 Move antenna manually
 Perform self-diagnosis of the antenna
 Set up the interface with a PC
Front
Rear
5 6 i3/i4/i4P Satellite Antenna System – Install and User Manual
Installation Kit
Contain the items required for securing the antenna unit and ACU to
your boat.
Antenna
Tapping Screw
Hexagonal Bolt Spring Washer Flat Washer
(Φ4x16L)
5EA 5EA 5EA
5EA
Other Components
No Components Size
1 ACU Bracket
2 RG6 (Antenna – ACU RF Cable) 15m
3 RG6 (ACU – IRD Cable)
4 Power Cable 10m
5 PC Serial Cable 1.8m
6 NMEA Connector AK950-2
7 Power Connector AK950-3
Hex Bolt M8x35L
ø4x16L
Tapping Screw
8
ø38L
Flat Washer
Spring Washer
9 Install CD
10 Manual
i3
11 Mounting Template
i4/i4P
12 Quick Installation Guide
ACU
Machine Screw
(Φ3x8L)
5EA
Q'ty
- 2EA
1EA
3m 1EA
1EA
1EA
1EA
1EA
5EA
5EA
5EA
M8 5EA
M8 5EA
- 1EA
- 1EA
-
1EA
-
- 1EA
