Installation
Ø43 (17")
Intellian i3
WARNING WARNING
Before installing the antenna you have to dismantle the radome with a
hexagon wrench tool and remove the foam fixation from the antenna
interior. You have to reassemble the radome before installation. The
system functions will be abnormal if the radome is off.

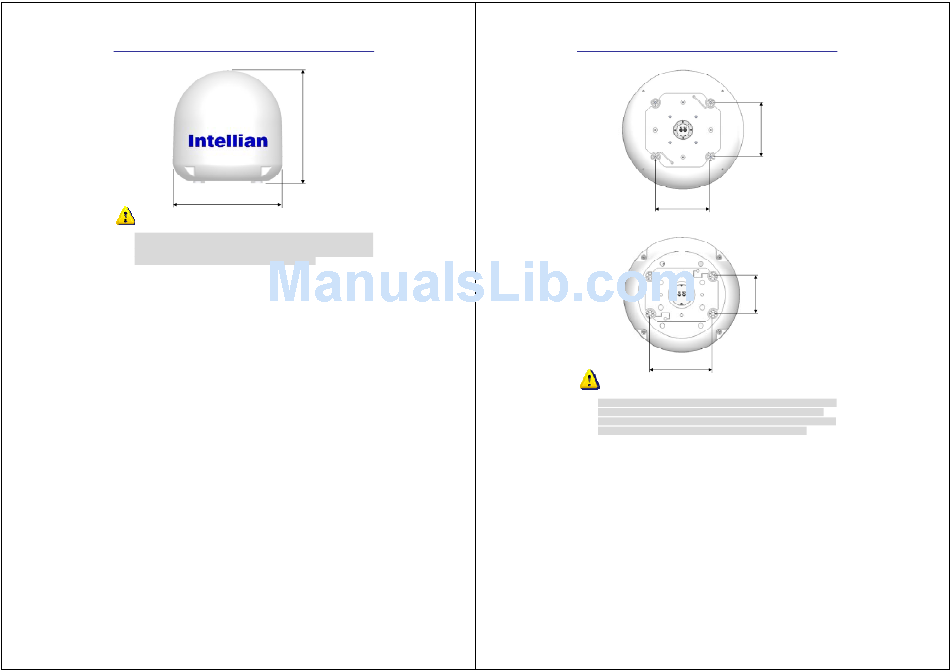

Mark of the antenna mounting position
Referring to the mounting template, mark where antenna is to be mounted on board
the ship (it must be a flat surface) or on a separate power tower by the drawing
below.
11
44 (17.3")
12 i3/i4/i4P Satellite Antenna System – Install and User Manual
22.86 (9")
Intellian i4/i4P
23.3 (9.2")
Intellian i3
WARNING WARNING
If a power tower is not sued to mount the antenna, separate cable shock and
waterproofing measures must be taken to protect the RF connector from
begin exposed to the sea water and external shocks. An exposed cable may
cause electric shock and cause serious damage to the equipment.
22.86 (9")
14.15 (5.6")
