Power button board
Description
Power button board (includes cable)
Before removing the power button board, remove the following components:
1.
Battery (see
2.
Service access cover (see
3.
Hard drive (See
4.
Optical drive (see
5.
WLAN module (see
6.
Memory module (see
7.
Keyboard (see
8.
Top cover (see

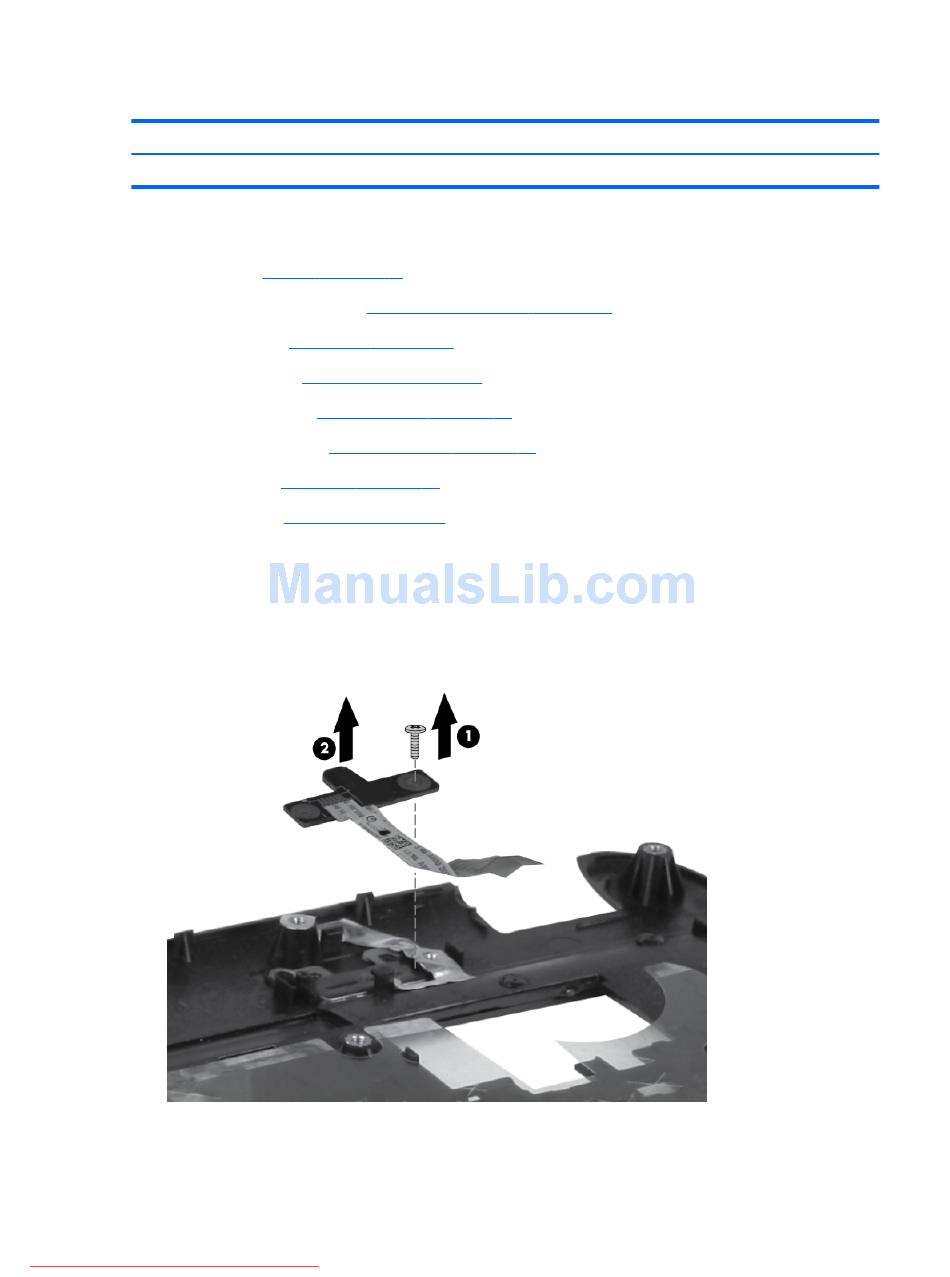

Remove the power button board:
1.
Position the top cover upside down, with the rear edge toward you.
2.
Remove the Phillips 3.0×2.0 screw (1) that secures the power button board to the top cover.
3.
Lift up and remove the power button board (2).
Reverse this procedure to install the power button board.
