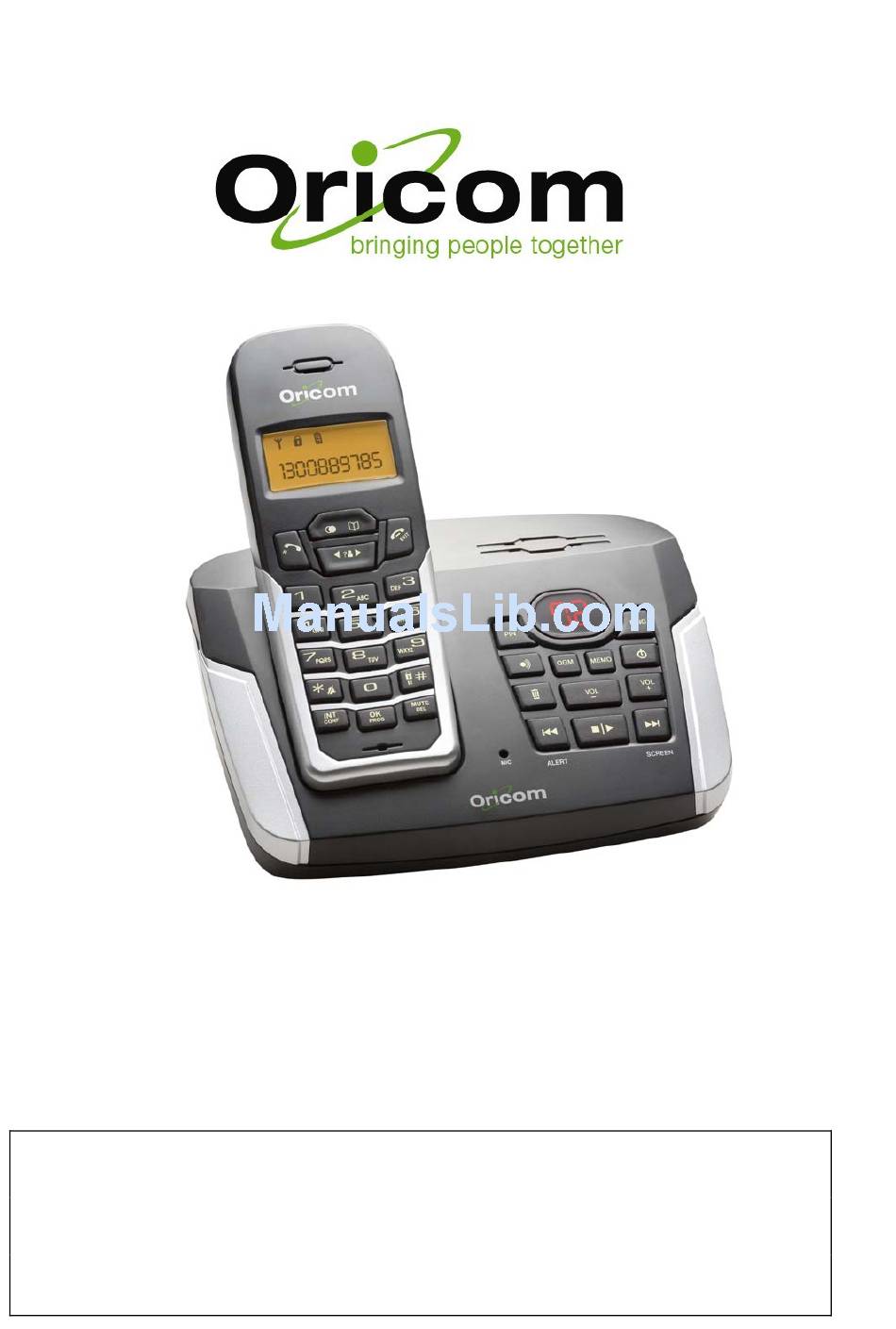

Oricom P700 Series
1.8GHz DECT Cordless phone
Keep this user guide for future reference.
WARNING
DO NOT USE STANDARD/ALKALINE BATTERIES IN THIS PRODUCT,
AS THERE IS A RISK OF EXPLOSION AND/OR INJURY.
USE ONLY Ni-MH RECHARGEABLE BATTERIES AS SPECIFICED IN
THIS USER GUIDE. CONTACT ORICOM FOR REPLACEMENT
BATTERIES
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Oricom P700 Series
Summary of Contents for Oricom P700 Series
- Page 1 Keep this user guide for future reference. WARNING DO NOT USE STANDARD/ALKALINE BATTERIES IN THIS PRODUCT, AS THERE IS A RISK OF EXPLOSION AND/OR INJURY. USE ONLY Ni-MH RECHARGEABLE BATTERIES AS SPECIFICED IN THIS USER GUIDE. CONTACT ORICOM FOR REPLACEMENT BATTERIES...
-
Page 3: Table Of Contents
SAFETY INFORMATION...5 GETTING STARTED ...6 Key Layout ...6 LCD display on the handset ...7 Basic steps to install...8 Charging the handset...9 BASIC OPERATIONS ...9 During standby ...9 Answering an incoming external call ...9 Making an external call ...10 Normal dialling...10 Predialling...10 Dialling from a phonebook record...10 Redialling the last dialled number...11... - Page 4 PIN code ...18 Reset...18 DIGITAL ANSWERING MACHINE...19 Display ...20 Getting started...20 Turning the answering machine on/off ...20 Outgoing messages (OGM) ...21 Recording an OGM ...22 Listening to the current OGM ...22 Deleting an OGM...22 Incoming messages (ICM) ...22 Playing ICM ...23 Deleting an ICM...23 Deleting all ICMs ...24 Memo ...24...
-
Page 5: Safety Information
This telephone is not designed for making emergency telephone calls when the power fails. Make alternative arrangements for access to emergency services. SAFETY INFORMATION Read the safety instructions before first use of this phone. • Use only the batteries supplied with this telephone. •... -
Page 6: Getting Started
GETTING STARTED Key Layout LCD Display Redial CID / Phonebook Scroll backward Talk / Recall CID / Scroll forward Off / Exit # / Keylock / Ringer On-Off Pause Intercom / Mute / OK / Conference Delete Program... -
Page 7: Lcd Display On The Handset
LCD display on the handset Handset Ringer Setting Battery Signal Character Display Left Arrow Ringer Off Phonebook Key lock The handset is linked to the base Displays the current battery level. It scrolls during charging. Appear together with either handset or base ringer setting. Use to set the handset ringer. -
Page 8: Basic Steps To Install
DO NOT USE STANDARD/ALKALINE BATTERIES IN THIS PRODUCT, AS THERE IS A RISK OF EXPLOSION AND/OR INJURY. USE ONLY Ni-MH RECHARGEABLE BATTERIES AS SPECIFICED IN THIS USER GUIDE. CONTACT ORICOM FOR REPLACEMENT BATTERIES NiMH batteries must be disposed of in accordance with applicable waste... -
Page 9: Charging The Handset
BASIC OPERATIONS During standby ORICOM When the phone is in standby, the LCD displays the handset label. The handset number related to the connected base will also be displayed right justified. -
Page 10: Making An External Call
If you press when the phone is ringing, the handset ringer will be turned off for this incoming call. 1. Press to answer the call. 2. Call timer is displayed 10 seconds after the call is connected 3. Press or place the handset on the base cradle to disconnect. Making an external call Your phone allows you to dial out a phone number in various ways. -
Page 11: Redialling The Last Dialled Number
Redialling the last dialled number 1. Press . The last number dialled is displayed. turns on when the number contains more than 12 digits. Press to view the off-page digits. 3. Press to dial out the number. During an external call Call timer 01-10 The call timer will be displayed a short while after your call is connected. -
Page 12: Receiving A Second Call
Receiving a second call If you have subscribed to the service of CID on Call Waiting, the telephone will show the phone number of another incoming call while you are talking on the phone. 1. Press to put the current call on hold and talk with the second caller. 2. -
Page 13: Deleting A Cid Record
While you are viewing the CID record that you would like to save, 1. Press 2. If there is caller name in the CID record, the first 8 characters are displayed for you to edit. If no caller name is available, you will be prompted to enter a name. -
Page 14: Deleting A Previously Dialled Number
to do the editing. A name can contain up to 8 characters. If there’s already a phonebook record matching the number, that phonebook name will appear and you can edit it. 3. Press to save the name. You will not be able to save it if this name already exists in the phonebook. -
Page 15: How To Enter Names
How to enter names The number buttons are also inscribed with letters for entering the name. By repeatedly pressing the appropriate button, upper case letters as well as numbers and special characters can be entered. Space 2ABC 3DEF 4GHI 5JKL 6MNO 7PQRS 8TUV... -
Page 16: Deleting The Entire Phonebook
5. Press to confirm. Repeat steps 1 to 5 to delete another record. Deleting the entire phonebook 1. While reviewing the phonebook, press and hold 2. Press when prompted to confirm the action. The phonebook is now empty. PROGRAMMING THE PHONE Press during standby to enter program mode. -
Page 17: Recall Duration
2. Press to select. 3. Press to listen to and select from the 5 melodies. 4. Press to confirm your selection and you will be prompted to volume Setting. 5. Press to listen to and select from the different volume levels. -
Page 18: Deregister
You will hear a confirmation tone if the registration is successful. The handset label and the handset number will be displayed. If the registration is not successful, you will see NOT REG on the handset. Follow the procedure and try again. Deregister A handset can deregister another handset registered to the same base. -
Page 19: Digital Answering Machine
DIGITAL ANSWERING MACHINE Page 7-Segment Display Delete Stop / Play Message Alert / Previous Message Memo Ring Answer Machine On / Off Volume Up / Scroll Up Call Screening / Next Message Volume Down / Scroll Down... -
Page 20: Display
Display There is a display on the answering machine and the following table describes what they mean. Display Memory is full. No new messages can be recorded. The answer machine is being accessed from an external touch tone phone. Memo 2 rings 3 rings 4 rings... -
Page 21: Outgoing Messages (Ogm)
To turn the answering machine on/off, 1. Press during standby mode. The 7-segment LCD displays answering machine is activated or deactivated. The 7-segment LCD will be on when the answering machine is turned on. When the answering machine is on, it will answer the call after a certain number of rings depending on the ring delay setting (See page 25 for adjusting the ring delay setting). -
Page 22: Recording An Ogm
When memory is full, no incoming message will be recorded. The answering machine will announce the following outgoing message (OGM) and release the line. “Hello, we’re sorry your call cannot be taken at the moment, and you cannot leave a message, so please call later.” Recording an OGM The maximum recording time is 40 seconds. -
Page 23: Playing Icm
recording, if the call is answered by a registered handset or a parallel phone, the recording will stop. Playing ICM ICM will be played back in the sequence they were recorded. A beep will be emitted at the end of each ICM. To playback ICM, 1. -
Page 24: Deleting All Icms
Deleting all ICMs To delete all ICMs, during standby, 1. Press for 2 seconds. The answering machine emits 2 short beeps. 2. Press again within 5 seconds to permanently delete all new or old messages or press NOTE: Deleted messages cannot be recovered. The delete all function will delete any new (unheard) message(s). -
Page 25: Call Screening
NOTE: Memo will also be deleted by deleting all function if it is already played back. (See the Section: Deleting All ICMs function) Call screening Call screening allows you to hear the caller before you pick up the call by turning on the answering machine’s speaker during the recording of incoming messages. -
Page 26: Security Pin
1. Press RING during standby. The 7-segment LCD displays the current setting such as To change the ring delay setting, RING 1. Press for 2 seconds. The 7-segment LCD displays the current setting such as 2. Use VOL+ VOL- 3. Press again to confirm. - Page 27 To access the answering machine remotely, 1. Make a call from an external phone to your answering machine. 2. When the answering machine answers the call and starts playing the OGM, press *. 3. Enter the Security PIN. You will hear a short beep if a correct PIN is entered.
-
Page 28: The Remote Access Function
The remote access function Function To play messages To play OGM To record OGM To play Memo To record Memo To stop To turn on the AM when the AM is off; To turn off the AM when the AM is on. -
Page 29: Other Features
OTHER FEATURES Key lock Press and hold during standby to lock the keypad. appears whenever keypad is locked. When the keypad is locked, you can still answer an incoming call by pressing . During the call, the keypad functions as normal. When the call is ended, the keypad will be locked again. -
Page 30: Multi-Handset Operation
bring the handset back in range with the base. Failing to do so will result in the call being disconnected. When the handset is too far away from the base during standby, you will flashing. MULTI-HANDSET OPERATION You are offered with these additional features if you have 2 or more handsets registered to the base. -
Page 31: Call Transfer
3. After the other handset has answered, you can press repeatedly to switch between the external line and the intercom. If the other handset does not answer, press attempt and return to the external line. Call transfer While you are in an inquiry call with the other handset, press the handset to the base cradle. -
Page 32: Troubleshooting
TROUBLESHOOTING Are you having trouble with your phone? Here are some of the most common problems and solutions. Problems The phone does not work at all The phone does not ring There is no dial tone CID does not work properly The CIDCW call cannot be answered... -
Page 33: Notes For Operation In New Zealand
Unable to perform remote operation. The 7-segment LCD blinks FU. NOTES FOR OPERATION IN NEW ZEALAND The grant of a Telepermit for any item of terminal equipment indicates only that Telecom has accepted that the item complies with the minimum conditions for connection to its network. -
Page 34: Warranty Information
This telephone is not designed for making emergency telephone calls when the power fails. Make alternative arrangements for access to emergency services. WARRANTY INFORMATION This product is covered by a 12 month warranty against defective workmanship or parts. The warranty does not extend to damage caused by misuse, negligence, excessive voltage, faults on the telephone line or lightning. -
Page 35: Conformance To Regulation
CONFORMANCE TO REGULATION This product complies with the essential requirements for Radio and Telecommunications Terminal Equipment. For enquiries, contact … Australia Oricom International Pty Ltd NFORMANCE TO REGULATION Locked Bag 658 South Windsor, NSW 2756 Customer support Email: support@oricom.com.au Web: www.oricom.com.au...
