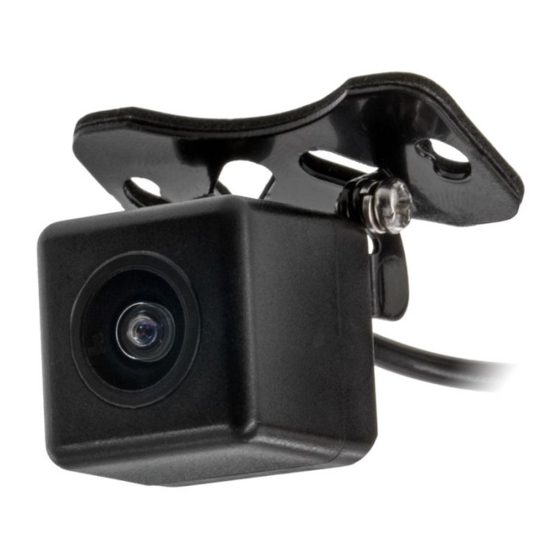

Rearview camera with dynamic parking line

Advertisement

Rearview Camera
with dynamic parking line
VTB100TJ
Product Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VTB100TJ and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Boyo VTB100TJ

  • Page 1 Rearview Camera with dynamic parking line VTB100TJ Product Manual...
  • Page 2 I. Specifications Sensor 1/3” CMOS PC3089 Effective Pixel 762(H)X504(V) Video Signal PAL60HZ/ NTSC60HZ Dynamic Guidance Trajectory Embedded Scanning system 2:1 interface Auto Auto Resolution 600 TV lines S/N Ratio More Than 48dB Current Consumption No more 180mA Power Supply DC 12V Operating temperature -20℃~70℃...
  • Page 3 Ⅱ. Installation Instructions 1) Find a suitable location to mount the camera so its view is unobstructed. 2) Connect the RED wire to either a +12 volt accessory wire (if you want the camera to come on with the ignition) or to the +12 volt reverse wire (if you want the camera to come on only when the vehicle is in reverse).
  • Page 4: Installation Notes

    Ш. Installation NOTES Caution: The smart rear view camera must be mounted at certain angle (30° 40°) . It must not be mounted horizontally straight. Otherwise the sensitivity and accuracy will be affected accordingly. Please do not modify the structure or cut off the wires without permission.
