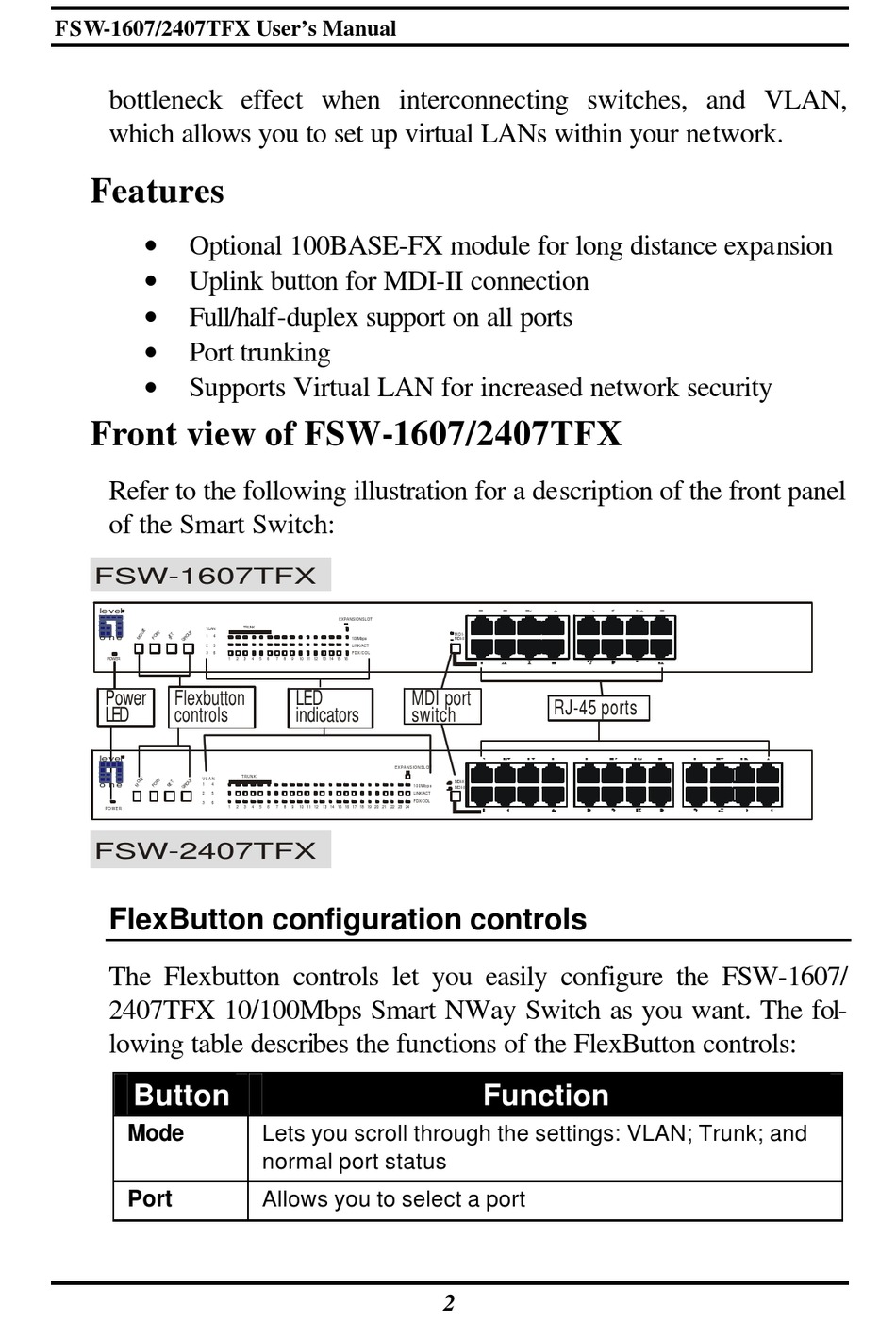

FSW-1607/2407TFX User's Manual
bottleneck effect when interconnecting switches, and VLAN,
which allows you to set up virtual LANs within your network.

Features

•
Optional 100BASE-FX module for long distance expansion
•
Uplink button for MDI-II connection
•
Full/half-duplex support on all ports
•
Port trunking
•
Supports Virtual LAN for increased network security

Front view of FSW-1607/2407TFX

Refer to the following illustration for a description of the front panel
of the Smart Switch:
FSW-1607TFX
le e v l
R
VLAN
1 4
o n e
5
3 6
POWER
Power Flexbutton
LED controls
le e v l
R
V L A N
1 4
o n e
5
3 6
P O W E R
FSW-2407TFX
FlexButton configuration controls
The Flexbutton controls let you easily configure the FSW-1607/
2407TFX 10/100Mbps Smart NWay Switch as you want. The fol-
lowing table describes the functions of the FlexButton controls:
Button
Mode
Port
EXPANSION SLOT
TRUNK
100Mbps
LINK/ACT
FDX/COL
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
LED
indicators
EXPANSION SLOT
TRUNK
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24
Lets you scroll through the settings: VLAN; Trunk; and
normal port status
Allows you to select a port
M D I - X
MDI-II
MDI port
RJ-45 ports
switch
MDI-X
100Mbps
MDI-II
LINK/ACT
FDX/COL
Function
2
