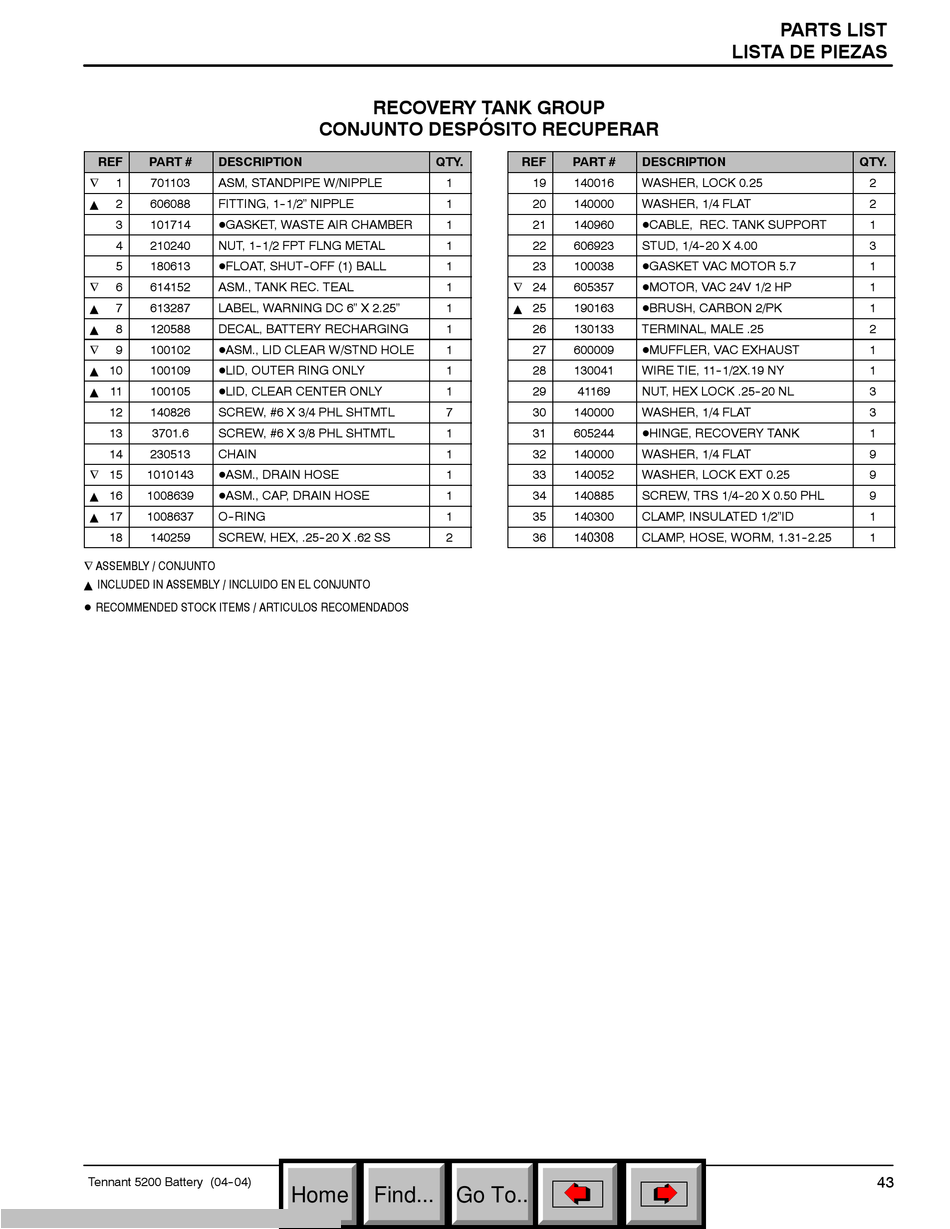

Recovery Tank Group - Tennant 5200 Operator And Parts Manual

REF PART # DESCRIPTION
1 701103 ASM, STANDPIPE W/NIPPLE
∇
2 606088 FITTING, 1- -1/2" NIPPLE
Y
3 101714 DGASKET, WASTE AIR CHAMBER
4 210240 NUT, 1- -1/2 FPT FLNG METAL
5 180613 DFLOAT, SHUT- -OFF (1) BALL
6 614152 ASM., TANK REC. TEAL
∇
7 613287 LABEL, WARNING DC 6" X 2.25"
Y
8 120588 DECAL, BATTERY RECHARGING
Y
9 100102 DASM., LID CLEAR W/STND HOLE
∇
10 100109 DLID, OUTER RING ONLY
Y
11 100105 DLID, CLEAR CENTER ONLY
Y
12 140826 SCREW, #6 X 3/4 PHL SHTMTL
13 3701.6 SCREW, #6 X 3/8 PHL SHTMTL
14 230513 CHAIN
∇ 15 1010143 DASM., DRAIN HOSE
16 1008639 DASM., CAP, DRAIN HOSE
Y
17 1008637 O- -RING
Y
18 140259 SCREW, HEX, .25- -20 X .62 SS
∇ ASSEMBLY / CONJUNTO
INCLUDED IN ASSEMBLY / INCLUIDO EN EL CONJUNTO
Y
D RECOMMENDED STOCK ITEMS / ARTICULOS RECOMENDADOS
Tennant 5200 Battery (04- -04)

RECOVERY TANK GROUP

CONJUNTO DESPÓSITO RECUPERAR
QTY.
1
1
1
1
1
1
1
1
1
1
1
7
1
1
1
1
1
2
Home Find... Go To..
REF PART # DESCRIPTION
19 140016 WASHER, LOCK 0.25
20 140000 WASHER, 1/4 FLAT
21 140960 DCABLE, REC. TANK SUPPORT
22 606923 STUD, 1/4- -20 X 4.00
23 100038 DGASKET VAC MOTOR 5.7
∇ 24 605357 DMOTOR, VAC 24V 1/2 HP
25 190163 DBRUSH, CARBON 2/PK
Y
26 130133 TERMINAL, MALE .25
27 600009 DMUFFLER, VAC EXHAUST
28 130041 WIRE TIE, 11- -1/2X.19 NY
29 41169 NUT, HEX LOCK .25- -20 NL
30 140000 WASHER, 1/4 FLAT
31 605244 DHINGE, RECOVERY TANK
32 140000 WASHER, 1/4 FLAT
33 140052 WASHER, LOCK EXT 0.25
34 140885 SCREW, TRS 1/4- -20 X 0.50 PHL
35 140300 CLAMP, INSULATED 1/2"ID
36 140308 CLAMP, HOSE, WORM, 1.31- -2.25
PARTS LIST
LISTA DE PIEZAS
QTY.
2
2
1
3
1
1
1
2
1
1
3
3
1
9
9
9
1
1
43
