REF PART # DESCRIPTION
1 230874 LEVER, BRUSH LIFT FOOT
2 200816 GRIP, HANDLE
3 102560 PAD, NON- -SLIP 1.62 SQ.
4 140509 NUT, 1/2- -13 HEXJAM
5 140045 WASHER, FLAT, 0.51B 1.25D .06 SS
6 140139 SLEEVE, 0.625D 0.50B 0.25L STL
7 140024 WASHER, LOCK 0.50 SS
8 140236 SCREW, .50- -13 X 1.25
9 230870 WELDMENT, LIFT BRACKET
10 02931 NUT, HEX .50- -13 LOCK NY
11 230869 BRACKET, AXLE & SQ PIVOT MNT
12 140024 WASHER, LOCK 0.50 SS
13 140237 SCREW, HEX .50- -13 X 1.00
14 140045 WASHER, FLAT, 0.51B 1.25D .06 SS
D RECOMMENDED STOCK ITEMS / ARTICULOS RECOMENDADOS
Tennant 5200 Battery (04- -04)

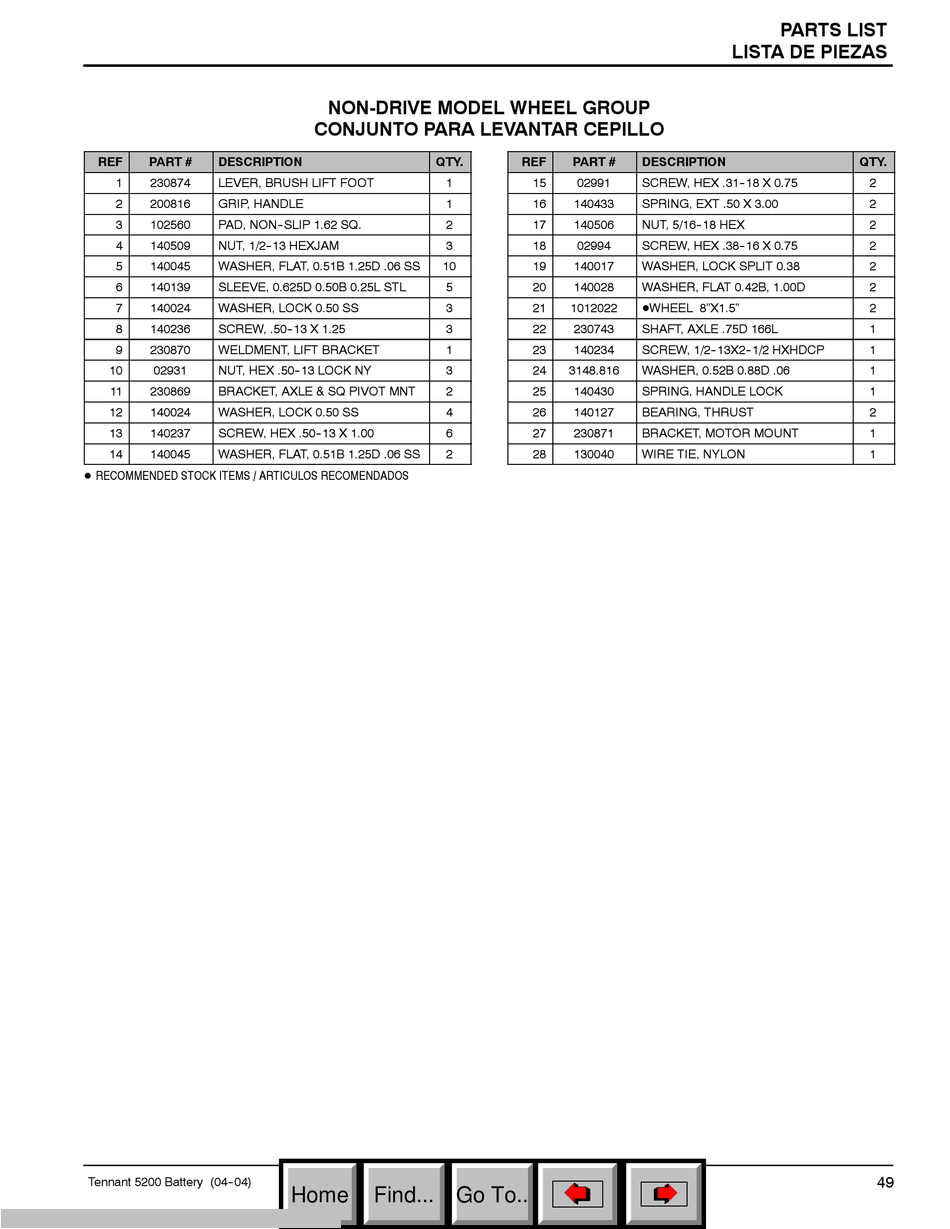

NON-DRIVE MODEL WHEEL GROUP
CONJUNTO PARA LEVANTAR CEPILLO
QTY.
1
1
2
3
10
5
3
3
1
3
2
4
6
2
Home Find... Go To..
REF PART # DESCRIPTION
15 02991 SCREW, HEX .31- -18 X 0.75
16 140433 SPRING, EXT .50 X 3.00
17 140506 NUT, 5/16- -18 HEX
18 02994 SCREW, HEX .38- -16 X 0.75
19 140017 WASHER, LOCK SPLIT 0.38
20 140028 WASHER, FLAT 0.42B, 1.00D
21 1012022 DWHEEL 8"X1.5"
22 230743 SHAFT, AXLE .75D 166L
23 140234 SCREW, 1/2- -13X2- -1/2 HXHDCP
24 3148.816 WASHER, 0.52B 0.88D .06
25 140430 SPRING, HANDLE LOCK
26 140127 BEARING, THRUST
27 230871 BRACKET, MOTOR MOUNT
28 130040 WIRE TIE, NYLON
PARTS LIST
LISTA DE PIEZAS
QTY.
2
2
2
2
2
2
2
1
1
1
1
2
1
1
