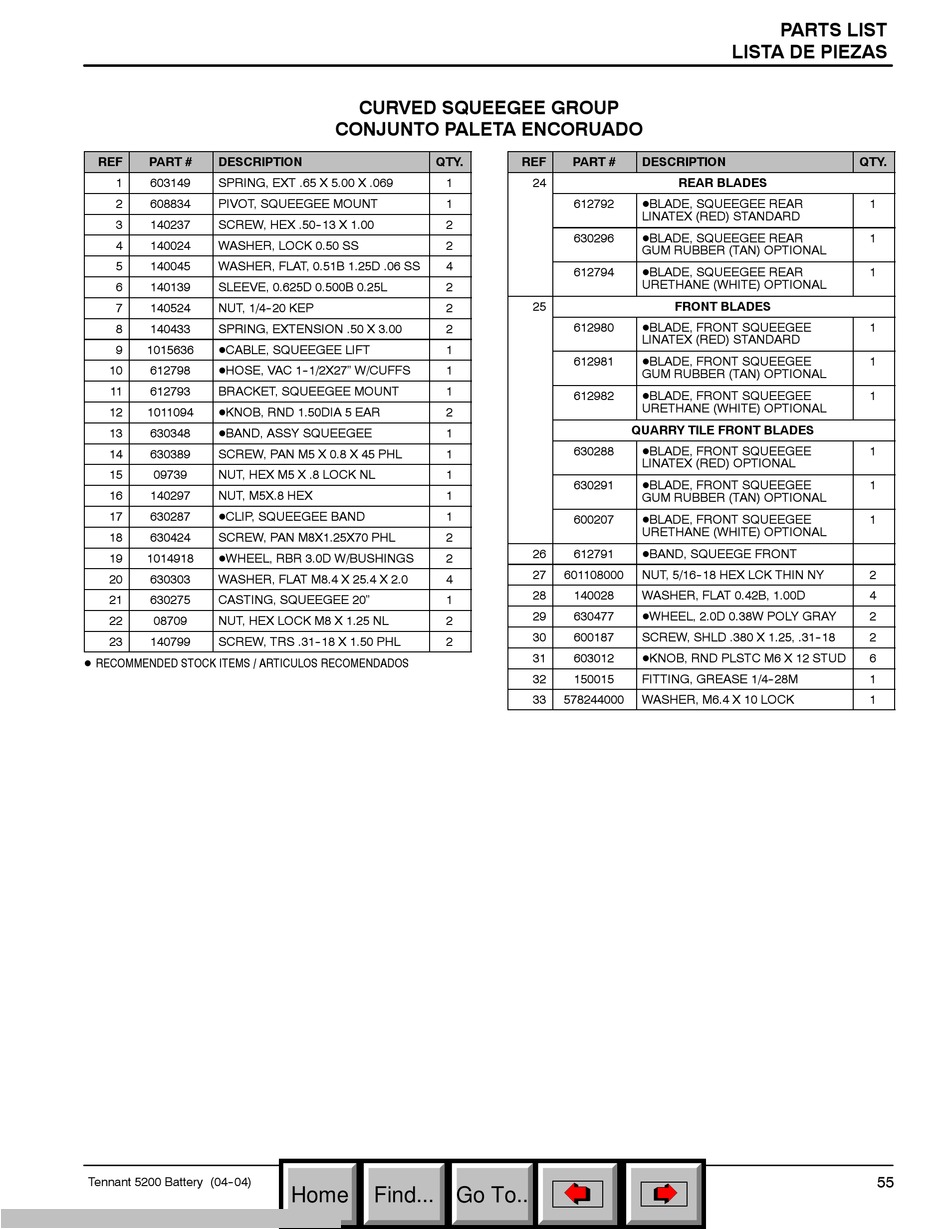

Tennant 5200 Operator And Parts Manual page 24

REF PART # DESCRIPTION
1 603149 SPRING, EXT .65 X 5.00 X .069
2 608834 PIVOT, SQUEEGEE MOUNT
3 140237 SCREW, HEX .50- -13 X 1.00
4 140024 WASHER, LOCK 0.50 SS
5 140045 WASHER, FLAT, 0.51B 1.25D .06 SS
6 140139 SLEEVE, 0.625D 0.500B 0.25L
7 140524 NUT, 1/4- -20 KEP
8 140433 SPRING, EXTENSION .50 X 3.00
9 1015636 DCABLE, SQUEEGEE LIFT
10 612798 DHOSE, VAC 1- -1/2X27" W/CUFFS
11 612793 BRACKET, SQUEEGEE MOUNT
12 1011094 DKNOB, RND 1.50DIA 5 EAR
13 630348 DBAND, ASSY SQUEEGEE
14 630389 SCREW, PAN M5 X 0.8 X 45 PHL
15 09739 NUT, HEX M5 X .8 LOCK NL
16 140297 NUT, M5X.8 HEX
17 630287 DCLIP, SQUEEGEE BAND
18 630424 SCREW, PAN M8X1.25X70 PHL
19 1014918 DWHEEL, RBR 3.0D W/BUSHINGS
20 630303 WASHER, FLAT M8.4 X 25.4 X 2.0
21 630275 CASTING, SQUEEGEE 20"
22 08709 NUT, HEX LOCK M8 X 1.25 NL
23 140799 SCREW, TRS .31- -18 X 1.50 PHL
D RECOMMENDED STOCK ITEMS / ARTICULOS RECOMENDADOS
Tennant 5200 Battery (04- -04)
CURVED SQUEEGEE GROUP
CONJUNTO PALETA ENCORUADO
QTY.
1
1
2
2
4
2
2
2
1
1
1
2
1
1
1
1
1
2
2
4
1
2
2
Home Find... Go To..
REF PART # DESCRIPTION
24 REAR BLADES
612792 DBLADE, SQUEEGEE REAR
LINATEX (RED) STANDARD
630296 DBLADE, SQUEEGEE REAR
GUM RUBBER (TAN) OPTIONAL
612794 DBLADE, SQUEEGEE REAR
URETHANE (WHITE) OPTIONAL
25 FRONT BLADES
612980 DBLADE, FRONT SQUEEGEE
LINATEX (RED) STANDARD
612981 DBLADE, FRONT SQUEEGEE
GUM RUBBER (TAN) OPTIONAL
612982 DBLADE, FRONT SQUEEGEE
URETHANE (WHITE) OPTIONAL
QUARRY TILE FRONT BLADES
630288 DBLADE, FRONT SQUEEGEE
LINATEX (RED) OPTIONAL
630291 DBLADE, FRONT SQUEEGEE
GUM RUBBER (TAN) OPTIONAL
600207 DBLADE, FRONT SQUEEGEE
URETHANE (WHITE) OPTIONAL
26 612791 DBAND, SQUEEGE FRONT
27 601108000 NUT, 5/16- -18 HEX LCK THIN NY
28 140028 WASHER, FLAT 0.42B, 1.00D
29 630477 DWHEEL, 2.0D 0.38W POLY GRAY
30 600187 SCREW, SHLD .380 X 1.25, .31- -18
31 603012 DKNOB, RND PLSTC M6 X 12 STUD
32 150015 FITTING, GREASE 1/4- -28M
33 578244000 WASHER, M6.4 X 10 LOCK
PARTS LIST
LISTA DE PIEZAS
QTY.
1
1
1
1
1
1
1
1
1
2
4
2
2
6
1
1
55
