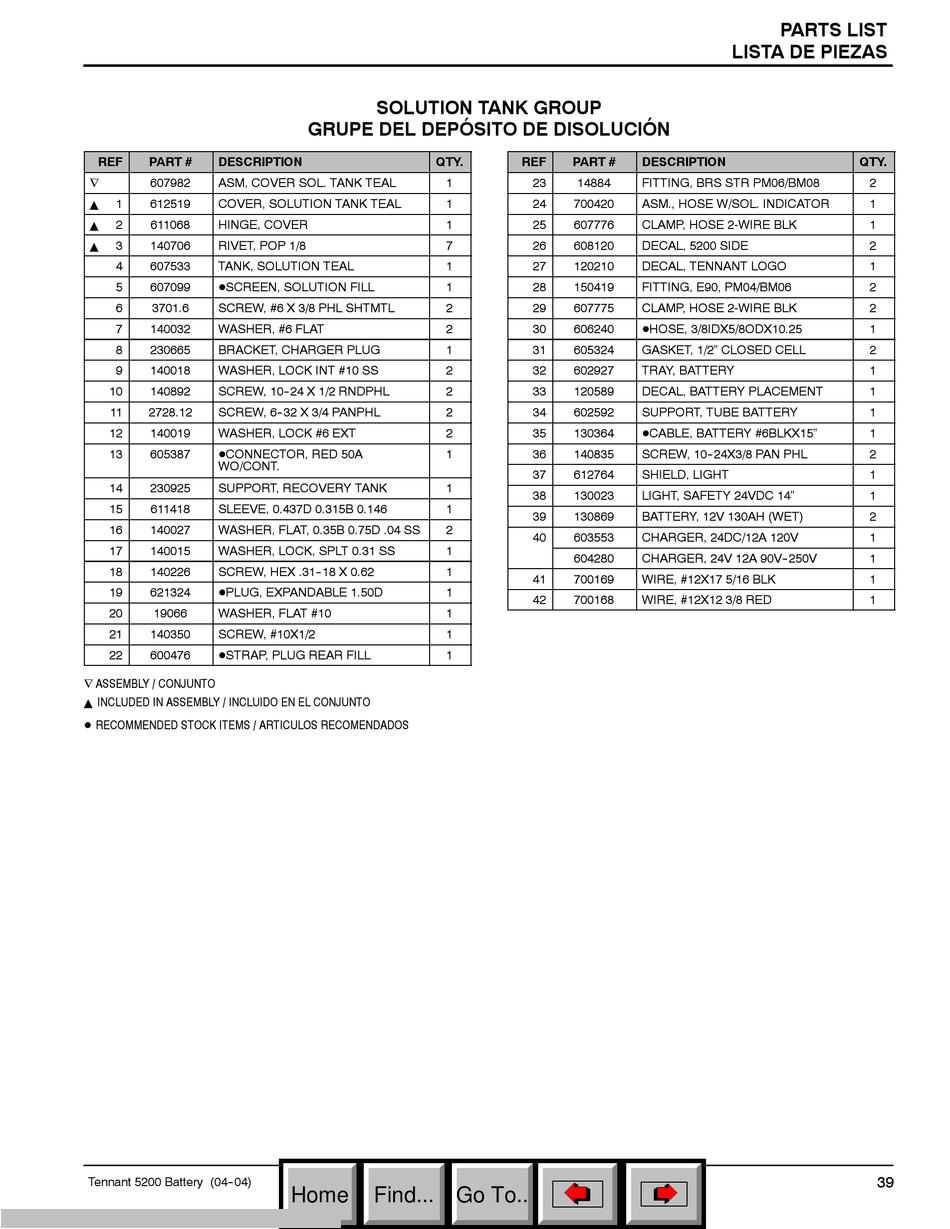

Tennant 5200 Operator And Parts Manual page 8

REF PART # DESCRIPTION
607982 ASM, COVER SOL. TANK TEAL
∇
1 612519 COVER, SOLUTION TANK TEAL
Y
2 611068 HINGE, COVER
Y
3 140706 RIVET, POP 1/8
Y
4 607533 TANK, SOLUTION TEAL
5 607099 DSCREEN, SOLUTION FILL
6 3701.6 SCREW, #6 X 3/8 PHL SHTMTL
7 140032 WASHER, #6 FLAT
8 230665 BRACKET, CHARGER PLUG
9 140018 WASHER, LOCK INT #10 SS
10 140892 SCREW, 10- -24 X 1/2 RNDPHL
11 2728.12 SCREW, 6- -32 X 3/4 PANPHL
12 140019 WASHER, LOCK #6 EXT
13 605387 DCONNECTOR, RED 50A
WO/CONT.
14 230925 SUPPORT, RECOVERY TANK
15 611418 SLEEVE, 0.437D 0.315B 0.146
16 140027 WASHER, FLAT, 0.35B 0.75D .04 SS
17 140015 WASHER, LOCK, SPLT 0.31 SS
18 140226 SCREW, HEX .31- -18 X 0.62
19 621324 DPLUG, EXPANDABLE 1.50D
20 19066 WASHER, FLAT #10
21 140350 SCREW, #10X1/2
22 600476 DSTRAP, PLUG REAR FILL
∇ ASSEMBLY / CONJUNTO
INCLUDED IN ASSEMBLY / INCLUIDO EN EL CONJUNTO
Y
D RECOMMENDED STOCK ITEMS / ARTICULOS RECOMENDADOS
Tennant 5200 Battery (04- -04)
SOLUTION TANK GROUP
GRUPE DEL DEPÓSITO DE DISOLUCIÓN
QTY.
1
1
1
7
1
1
2
2
1
2
2
2
2
1
1
1
2
1
1
1
1
1
1
