Summary of Contents for Winnebago fuse

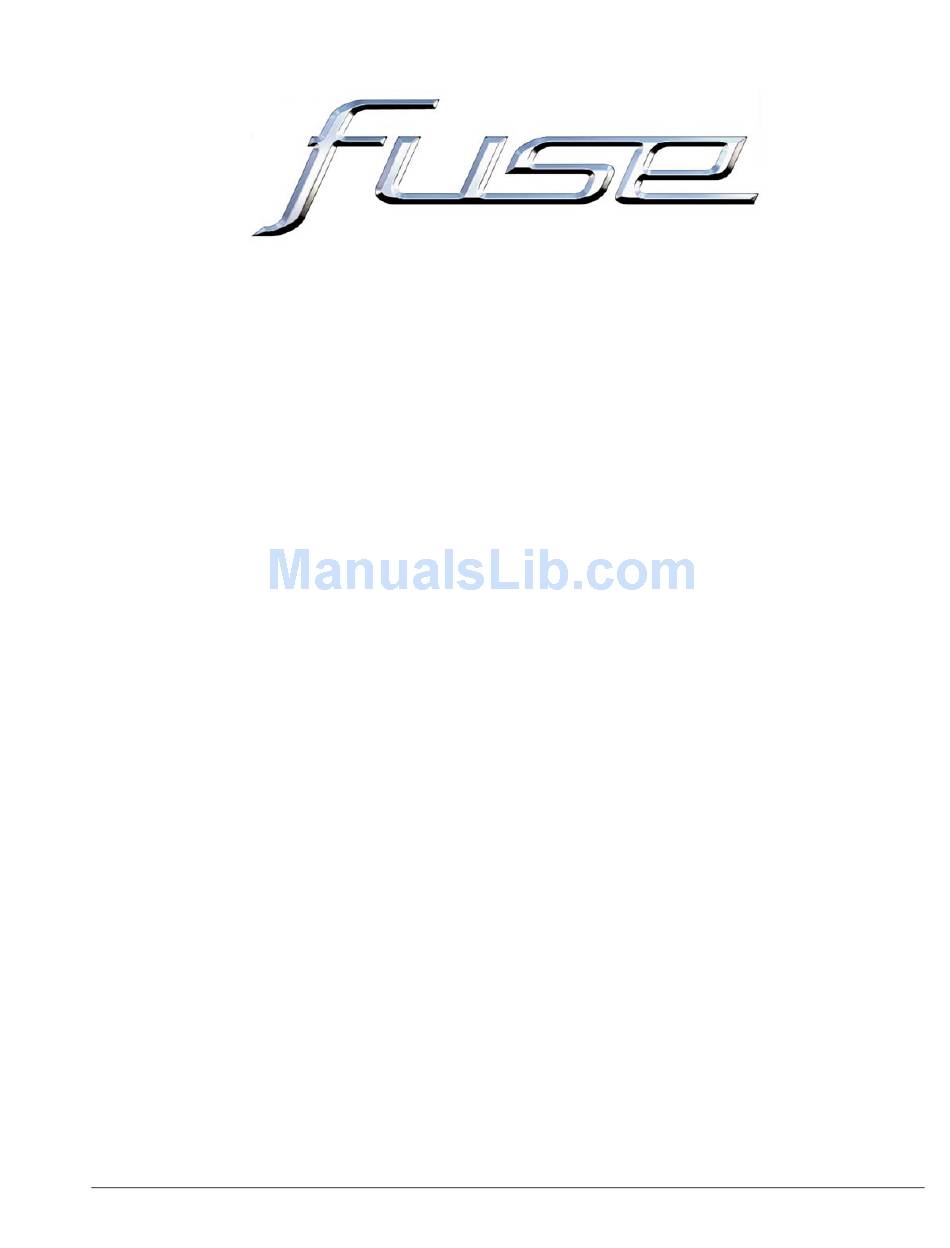

  • Page 1 Rev. 1606160623 Part No. 161500-16-005 Copyright 2015 Winnebago Industries, Inc. All rights reserved.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS 1 – INTRODUCTION About this Manual ..........................1-1 Safety Messages Used in this Manual ....................1-1 Pre-Delivery Inspection ........................1-2 Before Driving ..........................1-2 Front Axle Tire Alignment ....................... 1-2 Service and Assistance ........................1-2 Reporting Safety Defects ........................1-2 Occupant and Cargo Carrying Capacity Label .................
  • Page 4 Table Of Contents Battery Boost Switch ........................3-3 Air Conditioner/Heater – Automotive (Dash) .................. 3-4 Radio – In-Dash ..........................3-4 Rearview Mirror with Monitor System .................... 3-4 Engine Cooling System ........................3-4 Tires ..............................3-4 Suspension Alignment and Tire Balance ..................3-5 Lights ..............................
  • Page 5 Table Of Contents Battery Care ............................6-7 Circuit Breakers and Fuses – House 12-Volt DC ................6-9 7 – PLUMBING Fresh Water System .......................... 7-1 Water Pump ............................7-2 Disinfecting Your Fresh Water System .................... 7-3 Shower Hose Vacuum Breaker ......................7-4 Exterior Shower/Wash Station ......................
  • Page 6 Table Of Contents 11 – MAINTENANCE AND STORAGE Sealants – Inspection and General Information ................11-1 Roof ..............................11-1 Undercarriage ..........................11-1 Exterior Finish ..........................11-2 Exterior Graphic Care ........................11-3 Plastic Parts – Cleaning ........................11-3 Exterior Lights ..........................11-4 Interior Soft Goods .........................

  • Page 7: Introduction

    The instructions included in this manual are intended as a guide, and in no way DANGER indicates a hazardous situation extend the responsibilities of Winnebago which, if not avoided, will result in death or Industries beyond the standard written serious personal injury.

  • Page 8: Pre-Delivery Inspection

    National Highway Traffic Safety Administration any problems before delivery. (NHTSA) in addition to notifying Winnebago Industries, Inc. If NHTSA receives similar complaints, it may open an investigation, and if it finds that a safety...

  • Page 9: Occupant And Cargo Carrying Capacity Label

    However, NHTSA cannot become involved in individual problems between you, your dealer, or ® Winnebago Industries To contact NHTSA, you may either call the Vehicle Safety Hotline toll-free at: 1-888-327-4236; (TTY: 1-800-424-9153) or go to their website at http://www.safercar.gov...

  • Page 10: Vehicle Certification Label

    These pressure levels must be maintained to assure proper handling, safety, 2. Chassis manufacture date. and fuel economy. 3. Month and year of manufacture at Winnebago ® 9. Rear Axle Wheel Configuration: Single or Industries Dual as it relates to the inflation.

  • Page 11: Specifications And Capacities

    25 gal. Notes: All information is based upon the most recent data available. Visit the Winnebago Industries, Inc. web page – www.winnebagoind.com – for the most current product information. The height of each model is measured to the top of the tallest standard feature and is based on the curb weight of a typically equipped unit.

  • Page 12: Owner And Vehicle Information

    Motorhome Serial Number ___________________________________________________________ Chassis Vehicle Identification No. (VIN) ________________________________________________ Vehicle Mileage at Delivery __________________________________________________________ Selling Dealer Name ________________________________________________________________ Address __________________________________________________________________________ __________________________________________________________________________ ® YOUR WINNEBAGO INDUSTRIES DEALER /SERVICE CENTER Name ____________________________________________________________________________ Address __________________________________________________________________________ __________________________________________________________________________ Contact ____________________________________________Phone ________________________ CHASSIS SERVICE CENTER...

  • Page 13: Safety And Precautions

    SECTION 2 – SAFETY AND PRECAUTIONS GENERAL WARNINGS DRIVING SAFETY • Only seats equipped with seat belts are to be occupied while the vehicle is moving. WARNING • Make sure all passengers have seat belts fastened. Lap belts should fit low on the hips and upper thighs.

  • Page 14: Fuel And Propane Gas

    SECTION 2 – SAFETY AND PRECAUTIONS • Do not attempt to adjust the driver’s seat while the vehicle is moving. WARNING • Do not adjust tilt steering in a moving vehicle. • Do not operate the cruise control on icy or extremely wet roads, winding roads, in heavy Propane gas containers, gasoline, or other flammable liquids shall not be...

  • Page 15: Propane Gas Leaks

    SECTION 2 – SAFETY AND PRECAUTIONS DANGER DANGER Do not use gas cooking appliances for IF YOU SMELL PROPANE comfort heating. Can lead to carbon 1. Extinguish any open flames and all monoxide poisoning, which can lead to smoking materials. death or serious injury.

  • Page 16: Power Connection

    Disconnect switch is shut off or the battery cable is disconnected from the batteries, the alarm will WARNING not work. The Propane Gas Leak Detector fuse or circuit breaker is located in the 12-volt house electrical load center. Failure to replace this product by the Because the Propane Gas Leak Detector is “REPLACE BY DATE”...

  • Page 17: Carbon Monoxide Warning

    RV application. We recommend obtaining a replacement from your ® Winnebago Industries dealer. Expiration and Further Information See the manufacturer’s information in your InfoCase for smoke alarm expiration and further...

  • Page 18: Fire Extinguisher

    InfoCase. same size and amperage rating only. Never We also recommend that you inspect the Fire use a higher rated fuse or breaker. Extinguisher for proper charge at least once a • Use caution when handling or working near month in accordance with National Fire electrical storage batteries.

  • Page 19: Maintenance

    SECTION 2 – SAFETY AND PRECAUTIONS MAINTENANCE • Do not remove the radiator cap while engine and radiator are still hot. Always check coolant level visually at the see-through coolant reservoir. • Never get beneath a vehicle that is held up by a jack only.

  • Page 20: Slideout Rooms

    SECTION 2 – SAFETY AND PRECAUTIONS WARNING Keep all persons clear of the slideout room and moving parts while extending or retracting. Do not occupy the slideout room while it is being extended or retracted. Failure to observe can result in death or serious injury.

  • Page 21: Mold, Moisture, And Your Motorhome

    This temperature. is the extent of coverage provided by Winnebago Industries. Winnebago Industries, however, will How Can I Avoid Mold? not assume responsibility for mold deemed to be...

  • Page 22: Roof And Ladders

    SECTION 2 – SAFETY AND PRECAUTIONS • Make sure you are physically capable to ROOF AND LADDERS safely use the ladder. Strength, flexibility, and stability are required. –If Equipped • Be aware that the vehicle may sway as you climb the ladder. Do not use the ladder in high WARNING winds.

  • Page 23: Jump Starting

    Vehicle Certification Label. This will allow the towing operator to determine the proper towing equipment to use. ® Winnebago Industries does not assume ENGINE OVERHEAT responsibility for damage incurred while towing If you see or hear steam escaping from the this vehicle.

  • Page 25: Driving Your Motorhome

    The information in this section refers only to features installed or adapted to the dash and 1- Insert tab into buckle slot until it “clicks” and is driver compartment area by Winnebago locked ® Industries . It also includes passenger seating in the living area of the coach.

  • Page 26: Child Restraints

    SECTION 3 – DRIVING YOUR MOTORHOME Lap/Shoulder Belts 3. Be certain that it is appropriate for the child's height, weight, and development. The See your chassis manual for instructions on instructions and/or the regulation label proper fastening, adjustment, and releasing of attached to the restraint typically provides this lap/shoulder belts.

  • Page 27: Keys

    SECTION 3 – DRIVING YOUR MOTORHOME Further Information Mirror Heaters See the child seat manufacturer’s specific The heated exterior mirrors will clear the instructions for proper attachment and mirror glass of thin ice and fog. They will turn off adjustment of the tether and seat belts. automatically after a short period of time.

  • Page 28: Air Conditioner/Heater - Automotive (Dash)

    SECTION 3 – DRIVING YOUR MOTORHOME NOTE: The House/Coach Battery Disconnect REARVIEW MIRROR WITH switch near the entrance door must be MONITOR SYSTEM ON and house batteries must be sufficiently charged for this feature to –If Equipped work. Your coach may be equipped with a Rearview Monitor System built into the rearview mirror, which lets you see what is directly behind your vehicle for maneuvering assistance and safety.

  • Page 29: Suspension Alignment And Tire Balance

    Check fuse and replace with one of the same rating when necessary. If a fuse is not the cause of the problem, the wiring system should be checked immediately by an authorized service center.

  • Page 31: Appliances And Systems

    SECTION 4 – APPLIANCES AND SYSTEMS Leveling The appliances installed in your motorhome are manufactured by reputable RV appliance Before operating the refrigerator when the makers and have been tested by independent motorhome is stationary, place a small level on laboratories to meet all applicable standards and the bottom of the refrigerator and make certain codes set for RV appliances.
  • Page 32 SECTION 4 – APPLIANCES AND SYSTEMS Basic Operation REFRIGERATOR Slide the control switches to the operating –If Equipped positions described and observe the indicator lights. The refrigerator in your coach can operate from either of three energy sources available to the motorhome: •...

  • Page 33: Refrigerator Service Access Compartment

    SECTION 4 – APPLIANCES AND SYSTEMS • After 10 seconds the settings will dim. The green light indicates the refrigerator is still functioning. • To check the settings push the on/off switch again. The currently active settings will light Selecting a Source •...

  • Page 34: Range Top

    SECTION 4 – APPLIANCES AND SYSTEMS •Latches -Typical View To Open Refrigerator Access Panel 1. Push both latches inward to unlock. (Located on front bedroom wall) 2. Remove the door from the opening. *Model 23T To Close • Remove the access panel from the opening. 1.

  • Page 35: Avoiding Asphyxiation

    SECTION 4 – APPLIANCES AND SYSTEMS Unlike homes, the amount of oxygen supply is limited due to the size of the recreational vehicle, and proper ventilation when using the cooking appliances avoids dangers of asphyxiation. It is especially important that cooking appliances not be used for comfort heating, as the danger of asphyxiation is greater when the appliance is used for long periods of time.
  • Page 36 SECTION 4 – APPLIANCES AND SYSTEMS To Light Range Top Burners •Depress the desired burner knob and turn Oven Burner Knob counter-clockwise to the ON or LITE position (do –If Equipped NOT attempt to light more than one burner at a •PILOT ON position keeps pilot flame lit for time).

  • Page 37: Microwave Oven

    SECTION 4 – APPLIANCES AND SYSTEMS NOTICE WARNING Do not store items in oven. Gas cooking appliances need fresh air for If oven would turn on stored items can safe operation. ignite resulting in fire and or property Before operating: damage.
  • Page 38 SECTION 4 – APPLIANCES AND SYSTEMS Start Stop Sensors Water Tank Hourmeter -Typical View Typical - Your coach may or may not be equipped with all of the features shown. Tank Capacities See “Tank Capacities” in Section 1 - Water And Holding Tank Levels Introduction.

  • Page 39: Solar Charge Panel

    SECTION 4 – APPLIANCES AND SYSTEMS • An interior light should be turned on to NOTE: Some models may be equipped with a provide a small load which draws off the Water Pump switch in the water service battery surface charge. center on the outside of the coach or within the bathroom area for your Water Heater Switches...

  • Page 40: Water Heater - Gas/ Electric

    SECTION 4 – APPLIANCES AND SYSTEMS help to extend battery life, the coach shoreline should be plugged in routinely to “top off” the batteries. We also recommend following regular battery inspection and maintenance, especially in cold weather. See “Battery Care” in Section 6 - Electrical.

  • Page 41: Pressure-Temperature Relief Valve

    SECTION 4 – APPLIANCES AND SYSTEMS PRESSURE-TEMPERATURE RELIEF VALVE On occasion, water may be seen seeping from the water heater pressure temperature relief valve. This is no cause for repair or replacement of the valve. Propane Gas Water Heater Switch ®...

  • Page 42: Furnace - Propane Gas

    SECTION 4 – APPLIANCES AND SYSTEMS Thermostat/Switch •Move from OFF to desired temperature for furnace operation •Lift handle straight out to open P-T valve when water heater is cold. -Typical View 4. Let the handle of the P-T valve snap shut. Room Temperature Thermometer 5.

  • Page 43: Roof Air Conditioning - With Heat Strip

    SECTION 4 – APPLIANCES AND SYSTEMS nuisance smoke alarm. a few degrees, the thermostat will turn the We do not recommend removing the internal heat strip on. It will automatically smoke alarm battery. turn off when the temperature of the air entering the air conditioner rises a few degrees To Shut Down above this setting.

  • Page 44: Air Conditioner Filter

    SECTION 4 – APPLIANCES AND SYSTEMS During Cooler Nights When outdoor temperatures drop in the evening or at night below 75 degrees F, the temperature control needs to be set at midpoint between “Warmer” and “Cooler”. If the setting is at “Cooler”, the evaporator coil may become iced up and stop cooling.

  • Page 45: Propane Gas

    SECTION 5 – PROPANE GAS PROPANE GAS SUPPLY Tank Gauge & Tank Fill Overflow Sender The propane gas system supplies fuel for the Valve Valve gas range/oven, water heater, furnace, and refrigerator (while in gas mode). When used and handled properly, this system is safe and economical and provides modern living conveniences wherever you travel.

  • Page 46: Safe Use Of The Propane Gas System

    SECTION 5 – PROPANE GAS to the National Propane Gas Association, propane gas outlets in the United States do not WARNING offer any other type of liquefied petroleum gas than propane to the general public.) Check local phone directory yellow pages for locations of Do not fill propane container(s) to more local propane gas refilling stations or bulk than 80 percent of capacity.

  • Page 47: Propane Gas Warnings And Precautions

    SECTION 5 – PROPANE GAS Propane gas also contains an odor additive PROPANE GAS WARNINGS that you can smell if propane is present in the air. AND PRECAUTIONS Here are a few precautions to observe that will help you to use the propane gas system safely: It is illegal for vehicles equipped with propane container to travel on certain roadways or •...

  • Page 48: Propane Gas Pressure Regulator

    SECTION 5 – PROPANE GAS WARNING WARNING Do not place propane cylinders inside the Visually inspect the pressure regulator vehicle. vent periodically for blockage by Propane cylinders are equipped with accumulated debris or insect nests, etc. safety devices that relieve excessive Vent obstruction could result in excessive pressure by discharging propane to the pressure causing fire or explosion, which...

  • Page 49: Propane Vaporization In Cold Weather

    SECTION 5 – PROPANE GAS This means that in extremely cold weather when a large volume of gas is being used by the furnace for heating, it is possible to experience a loss of gas pressure. At first, this problem may appear to be caused by an empty tank or a regulator freeze-up, but is actually caused by failure of the liquid gas to vaporize as fast as it is needed by the furnace.

  • Page 51: Electrical

    Do not connect the external power cord to same size and amperage rating only. Never any receptacle until you have verified use a higher rated fuse or breaker. proper polarity and grounding. Be sure all prongs of the supply cord are properly •...

  • Page 52: Power Center

    If electrical connected. power fails, contact the park attendants and have them check the fuse or breaker for your supply receptacle. POWER CENTER (Converter) The power converter is generally located in a lower cabinet face in the galley or living area, depending on the floorplan of your model.

  • Page 53: Circuit Breakers - House 120-Volt Ac

    SECTION 6 – ELECTRICAL Charging Section The power converter changes 120-volt AC current from the auxiliary generator or the The converter charges house batteries while shoreline into 12-volt DC current for use by 12- 120-volt external power is connected. The volt equipment in the motorhome.

  • Page 54: Electrical Outlets - House 120-Volt Ac

    SECTION 6 – ELECTRICAL Shut off the equipment (example: roof air protected outlets. Should this occur, unplug all conditioner) and allow a brief cooling period. the appliances on that circuit and press the reset Then reset the breaker by moving the switch to button on the GFCI equipped outlet.

  • Page 55: Electrical Generator

    SECTION 6 – ELECTRICAL ELECTRICAL GENERATOR –If Equipped WARNING Careless handling of the generator and Generator Basic Operation electrical components can be fatal. Never touch electrical leads or appliances NOTE: If the GenSet Start or Stop switch is when your hands are wet, or when momentarily pressed, the monitor panel standing in water or on wet ground.

  • Page 56: Electrical System - House 12-Volt Dc

    SECTION 6 – ELECTRICAL Refer to the hourmeter to determine when • Do not operate the Generator engine while periodic maintenance is due and to record parked if vegetation, snow, buildings, services which have been performed. vehicles, or any other object can deflect the exhaust under or into the vehicle.

  • Page 57: House/Coach Battery Disconnect Switch

    SECTION 6 – ELECTRICAL fan, fresh water pump, systems monitor panel, BATTERY ACCESS refrigerator, roof vent fans, and 120-volt electrical generator starter. The house batteries are located behind a The house batteries can also provide passenger side exterior door. emergency power to start the engine if the chassis Accessing House Batteries battery is discharged.
  • Page 58 SECTION 6 – ELECTRICAL If a battery does not contain at least 80% charge during freezing temperatures, the WARNING electrolyte can freeze and crack the battery case. The two best defenses against sulfating and insufficient charge are to: California Proposition 65 Warning: Battery posts, terminals, and related 1.

  • Page 59: Circuit Breakers And Fuses - House 12-Volt Dc

    When a circuit is overloaded or a short develops in any part of the system, a fuse or breaker will shut down that circuit. If this happens, turn off all affected lights or appliances and reset the breaker or replace the fuse with a new one of equal amperage rating.
  • Page 60 ELECTRICAL House 12-Volt Fuses A label on the panel states the amperage rating and circuit protected for each fuse. The fuse panel is located on the right-hand side of the Power Converter. House 12-Volt Fuses (Located on right-hand side of Power Converter)

  • Page 61: Plumbing

    SECTION 7 – PLUMBING The gravity tank fill tube is located behind a FRESH WATER SYSTEM small, lockable door on the driver or passenger sidewall. The fresh water system provides water to the galley sink, shower, bathroom lavatory, toilet and NOTE: Always leave gravity fill door OPEN water heater.

  • Page 62: Water Pump

    SECTION 7 – PLUMBING NOTE: We recommend that you check and clean the strainer after each tankful of water during the first few uses of the Water Pump system. Thereafter, remember to check it at least yearly, and be sure to empty water from it if using the blowout winterization procedure.

  • Page 63: Disinfecting Your Fresh Water System

    SECTION 7 – PLUMBING slow leak in a faucet could drain the water tank, fill the holding tank, and discharge the house batteries. Initial Waterline Priming 1. Ensure that all water drain valves are closed, including water heater valve. 2. Turn Water Pump switch to “OFF” position. 3.

  • Page 64: Shower Hose Vacuum Breaker

    SECTION 7 – PLUMBING • Chlorine may be removed from drinking water by the cold water filter at the galley faucet (if equipped) or by installing an WARNING activated carbon water purifier at the galley sink cold water line or a separate drinking Chlorine is poisonous.

  • Page 65: Toilet

    SECTION 7 – PLUMBING See winterizing instructions at the end of this section to prepare the toilet for storage in freezing conditions. Further Information See the toilet manufacturer’s operation information in your InfoCase for complete operating, care, and maintenance information. DRAINAGE SYSTEM (P-TRAPS) Ensure there is an adequate amount of water in the drainage system p-traps to avoid sewer odor...
  • Page 66 SECTION 7 – PLUMBING solids while dumping or to provide more 6. Add an odor control chemical to the sewage direct drainage while using on-site holding tank through the toilet. These sewer hook-ups. chemicals are available at most RV stores. 7.

  • Page 67: Holding Tank Level Indicators

    SECTION 7 – PLUMBING NOTE: Always keep sewage drain outlet capped while sewage connection is not in use. Holding Tank Level Indicators See “Systems Monitor Panel” in Section 4 - Appliances for further information on the monitor panel and checking tank levels. See “Specifications”...

  • Page 68: Waterline & Tank Drain Valves

    SECTION 7 – PLUMBING typically uses a large amount of current while operating. If the tank heaters are used without a recharging source, they will drain the house batteries in a relatively short period. Typically, the batteries would not support overnight heating without a supplemental charging source.

  • Page 69: Winterizing Procedure

    SECTION 7 – PLUMBING 5. Drain Water Heater. Turn off the water heater power switch before draining the water heater tank to avoid damage to the heating element. Drain the water heater by removing the plug from the base of the water heater tank, accessible from the outside of the coach.
  • Page 70 NOTE: It is not necessary to add antifreeze to the system. A “blow-out” plug can be the toilet since the flush valve will be ® purchased at any Winnebago Industries closed. dealer. Do not add automotive antifreeze or caustic chemicals such as bleach or laundry detergents into the toilet bowl or holding tanks.

  • Page 71: Water System Drain Valve Locations

    SECTION 7 – PLUMBING WATER SYSTEM DRAIN VALVE LOCATIONS MODEL SYSTEM DRAIN VALVE LOCATIONS Model 23A Waterlines • Two (2) valves accessed behind bottom drawer in drivers side bed. Also, place the tip of your finger inside the city water connection and gently press the backflow valve (small “button”...

  • Page 73: Entertainment

    SECTION 8 – ENTERTAINMENT To Swivel TV TV – 12V LED Grasp the inboard side of TV and disengage –If Equipped from the wall mounting bracket. Extend the TV and angle to desired position. The LED flat panel TV is powered by 12-volt DC current.

  • Page 74: Dvd Player With Deluxe Sound

    SECTION 8 – ENTERTAINMENT Play DVD DVD PLAYER WITH DELUXE • Insert a DVD “face up” into slot on lower face SOUND of the player. –If Equipped • The DVD will begin to load automatically. The DVD Player is a selectable function of the The TV screen will typically display multi-featured audio system.

  • Page 75: Exterior Speakers

    SECTION 8 – ENTERTAINMENT Further Information Further Information See the manufacturer’s quick reference guide See the stereo radio information provided in provided in your InfoCase for complete feature your InfoCase for complete operating descriptions and operating instructions. instructions. EXTERIOR SPEAKERS TV ANTENNA –...

  • Page 76: Tv Signal Amplifier

    TV (if 7. Repeat Steps 5 and 6 to pinpoint signal equipped). reception. ® See your authorized Winnebago Industries dealer for proper installation and sealing of roof NOTE: Refer to television manufacturer’s mounted components. instructions to scan for available channels.

  • Page 77: Cable Tv And Portable Satellite Connections

    SECTION 8 – ENTERTAINMENT EXTERIOR CABLE TV CONNECTION The exterior cable TV connection receptacle on your coach provides connection for use of a TV for your outdoor entertainment.. Interior Connection for Satellite Dish (Located in cabinet behind front overhead TV) -Typical View Exterior Cable TV Connection (Located near entrance door)

  • Page 79: Furniture And Softgoods

    SECTION 9 – FURNITURE AND SOFTGOODS CAB SEAT LOUNGE CUSHION –If Equipped (Typical View – Your coach may differ in appearance) The driver and co-pilot seats may feature a Lounge Seat Cushion which provides increased seat height and added comfort while in the lounge seating position.
  • Page 80 SECTION 9 – FURNITURE AND SOFTGOODS 4. Lower dinette table to the floor. Then lower dinette seat cushion. 2. Press the Table Leg Release Button and fold table leg UP until it “clicks” into locked (90- degree) position. 5. Unfasten the two snaps located behind the forward facing dinette backrest cushion.

  • Page 81: Dining Table

    SECTION 9 – FURNITURE AND SOFTGOODS • Insert pedestal leg into the metal receiver on the floor. Metal Receiver Pedestal 8. Cover bed area with side facing backrest • Place dining table securely onto the pedestal cushion. leg. • Reverse steps to store dining table and pedestal leg.

  • Page 82: Bed - Deluxe Sleep System

    SECTION 9 – FURNITURE AND SOFTGOODS BED – DELUXE SLEEP SYSTEM WARNING –If Equipped (Typical View – Your coach may differ in appearance) Stow sofa extensions before retracting Adjustable Head Rest slide rooms. Failure to observe can cause –If Equipped injury and will cause equipment damage.
  • Page 83 SECTION 9 – FURNITURE AND SOFTGOODS • Place dinette table tops onto the ledge of the bed cabinet. • Arrange bed cushions to cover bed extension. • Arrange bed back cushions to cover bed area. • To store bed extension, push release levers upward and lower bed extension towards the cabinet.

  • Page 84: Roller Shades (Manual) - Solar/Blackout

    SECTION 9 – FURNITURE AND SOFTGOODS • Place dining table securely onto the pedestal leg. For your convenience, the table can be rotated to use with only the driver side bed and allow access to the lavatory or use with both beds.

  • Page 85: Wood Furniture And Cabinetry

    No matter which species you chose for your new Winnebago Industries motorhome cabinetry, please keep in mind that no two pieces -Typical View of wood are exactly the same.

  • Page 87: Slideout Rooms

    The ignition key must be placed in the on or run position to operate the slideout room(s). The park brake must be applied for the room(s) to run. Winnebago recommends running the engine whenever you run the slideout rooms in or out, the engine alternator should insure the rooms have adequate 12-volt DC power to operate correctly.
  • Page 88 SECTION 10 – SLIDEOUT ROOMS To Retract Slideout Room Before Retracting! WARNING • Be sure the coach is level and the Parking Brake is set. CRUSH HAZARD. Keep people and • Ensure exterior compartment doors are closed objects clear of the inside and outside of so that they will not interfere with slideout the slideout room when operating.

  • Page 89: Slideout Room - Extreme Weather Precaution

    SECTION 10 – SLIDEOUT ROOMS • Press the Slideout Room “RETRACT/IN” SLIDEOUT ROOM switch and hold until the room is fully TROUBLESHOOTING (POWER retracted, then release the switch. GEAR ) IN WALL SLIDEOUT ® • To stop retracting the room during operation, release the button.

  • Page 90: Slideout Emergency Retraction (Power Gear ) In Wall Slideout

    SECTION 10 – SLIDEOUT ROOMS If an error is detected on your slide system, the In addition, certain caulks and sealers may LED light on the control panel will blink an error include chemicals that may adversely effect the code. If an error code appears, see the In Wall performance of the seals.

  • Page 91: Maintenance And Storage

    • Have the sealant replaced if you notice any of attention. Delaying these repairs may allow water the above. Your local Winnebago Industries leakage and result in damage to interior ceiling dealer has the correct and necessary parts and and body panels, upholstery, etc., which is not experience to help you maintain your sealants.

  • Page 92: Exterior Finish

    SECTION 11 – MAINTENANCE AND STORAGE weight to the vehicle. This, in effect, reduces the • Wash with cool water out of direct sunlight amount of cargo you can carry and remain within using a quality automotive detergent. Never GVWR and GAWR limits. wash the vehicle in direct sunlight or while the vehicle surface is hot.

  • Page 93: Exterior Graphic Care

    SECTION 11 – MAINTENANCE AND STORAGE If the finish begins to look dull or discolored, • Wash graphics with plain soap and water or it may need to be cleaned with a polishing or any car wash detergent. Rinse thoroughly. cleaning compound formulated for gel-coated •...

  • Page 94: Exterior Lights

    EXTERIOR LIGHTS motorhome is parked for an extended ® period of time. Most Winnebago Industries vehicles have polycarbonate lenses on exterior lamps, which are very sensitive to a variety of chemical solvents and cleaners.

  • Page 95: Cabinetry - Cleaning

    SECTION 11 – MAINTENANCE AND STORAGE CABINETRY – CLEANING WARNING Wooden items may be cleaned with a soft cloth and a good quality wood finish cleaning product. When cleaning upholstery and fabric, do Vinyl simulated wood panels may be cleaned not use lacquer thinner, nail polish with a mild, water-based cleaner and a soft cloth.

  • Page 96: Galley Sink

    SECTION 11 – MAINTENANCE AND STORAGE GALLEY SINK VINYL FLOORING Stainless Steel Care and Maintenance Care and Cleaning Instructions You can easily maintain the beauty of your The stainless steel sink can usually be cleaned vinyl flooring with little effort, by following with water and soap or detergent using a soft these recommendations: cloth or sponge.

  • Page 97: Bathroom

    SECTION 11 – MAINTENANCE AND STORAGE Treatment of Stains Tub and Shower Walls The tub and shower walls in the bathroom Acids, alkali, alcoholic beverages, coffee, soft should be cleaned with mild soap and warm drinks, ketchup, fruit, fruit juices, food, water.

  • Page 98: Vehicle Storage - Preparation

    SECTION 11 – MAINTENANCE AND STORAGE 9. Inspect all seams and seals around doors, VEHICLE STORAGE – windows, vents, and any other joints. Replace PREPARATION or repair any that are damaged. Sealing materials and compounds can be purchased Properly preparing your vehicle for storage from your dealer.

  • Page 99: Chassis Service And Maintenance

    SECTION 11 – MAINTENANCE AND STORAGE 11. Check around all appliances for obstructions and ensure that all vent openings are clear. 12. Start refrigerator and check for proper cooling. 13. Clean wall and counter surfaces. 14. Replace batteries, if necessary, and check out electrical system to make sure all lights and electrical components operate.

  • Page 100: Coach Maintenance Chart

    SECTION 11 – MAINTENANCE AND STORAGE COACH MAINTENANCE CHART These recommendations apply for normal recreational use. Heavy duty or full-time use may require more frequent maintenance intervals. Always use specified sections or manufacturer’s guide for further information and instructions. Propane Gas System ...
  • Page 101 SECTION 11 – MAINTENANCE AND STORAGE COACH MAINTENANCE CHART These recommendations apply for normal recreational use. Heavy duty or full-time use may require more frequent maintenance intervals. Always use specified sections or manufacturer’s guide for further information and instructions. Safety Equipment Check operation of the following items: ...

  • Page 102: Miscellaneous

    SECTION 11 – MAINTENANCE AND STORAGE COACH MAINTENANCE CHART These recommendations apply for normal recreational use. Heavy duty or full-time use may require more frequent maintenance intervals. Always use specified sections or manufacturer’s guide for further information and instructions. Sealants ...

  • Page 103: Loading The Vehicle

    SECTION 12 – MISCELLANEOUS NOTE: We recommend that you dump all LOADING THE VEHICLE holding tanks before traveling to avoid carrying unnecessary weight. NOTE: Your motorhome’s load capacity is designated by weight, not by volume, so you cannot necessarily use all available WARNING space when loading your motorhome.
  • Page 104 SECTION 12 – MISCELLANEOUS Corner Weighing (Side-to-Side) You will first drive only your front wheels onto the scale pad, then drive ahead so that the The most accurate method of weighing a whole vehicle is on the scale, then finally pull off motorhome is to weigh each “corner”...

  • Page 105: Car Or Trailer Towing

    SECTION 12 – MISCELLANEOUS axle is 12,000 lbs., then the load on each rear dual Because of individual vehicle use and loading set (left rear duals or right rear duals) should not habits, we recommend weighing the vehicle exceed 6,000 lbs. while fully loaded to avoid exceeding any of the listed Gross Weight Ratings.

  • Page 106: Trailer Wiring Connector

    SECTION 12 – MISCELLANEOUS force applied to the motorhome brakes, the more TRAILER WIRING force will be applied to the rear vehicle’s braking CONNECTOR system. We do not recommend the usage of a “surge- Your coach is pre-wired for trailer or car style”...

  • Page 107: Awning - Power

    350 The tow vehicle brakes may be rated for lbs. Some Winnebago Industries models operation at GVWR, not GCWR. equipped with a Class IV hitch have a...

  • Page 108: Storage Compartment Doors

    SECTION 12 – MISCELLANEOUS TOOL AND LADDER STORAGE C AU T I ON –If Equipped The roof ladder extension and various tools supplied with your coach are stored in one or Pinch Hazard. Ensure there are no more of the exterior storage compartments. people who could be harmed or objects that can be damaged.

  • Page 109: Roof Ladder

    SECTION 12 – MISCELLANEOUS • Never ignore warning labels or weight limits defined on your ladder. The following warning label is located on or near the ladder: WARNING Do not exceed 225-lb. maximum weight capacity. Misuse of ladder could result in death or serious injury. See Operators Manual before using ladder.

  • Page 110: Windows

    SECTION 12 – MISCELLANEOUS Further Information Dome Crank See the power ventilator manufacturer’s operating instructions supplied in your InfoCase for further instructions, care, and cleaning information. WINDOWS Horizontal Slider Windows Swing the latch handle straight out or up Arrow (depending on the style of window). Grasp the sliding window edge frame and slide the window to the side.

  • Page 111: Effects Of Prolonged Occupancy

    SECTION 12 – MISCELLANEOUS Minimize moisture released inside the coach Run the range hood fan while cooking and open a bath vent while bathing or showering to carry water vapor out of the coach. Avoid making steam from boiling water excessively or letting hot water run.
  • Page 113 INDEX About this Manual ..........................1-1 Air Conditioner Filter ........................... 4-14 Air Conditioner/Heater – Automotive (Dash) ..................3-4 Audio/Video System Basic Operation ....................8-1 Awning – Power ........................... 12-5 Bathroom .............................. 11-7 Battery Access ............................6-7 Battery Boost Switch ..........................3-3 Battery Care ............................
  • Page 114 Index Exterior Finish ............................11-2 Exterior Graphic Care ........................... 11-3 Exterior Lights ............................11-4 Exterior Shower/Wash Station ........................ 7-4 Exterior Speakers ............................ 8-3 Fire Extinguisher ............................. 2-6 Fold and Tumble ............................. 9-3 Formaldehyde Information ........................2-8 Fresh Water System ..........................7-1 Front Axle Tire Alignment ........................
  • Page 115 Index Radio – In-Dash ............................3-4 Range and Oven ............................4-5 Range and Refrigerator ......................... 11-6 Range Top ............................... 4-4 Rearview Mirror with Monitor System ....................3-4 Refrigerator ............................. 4-1 Refrigerator ............................. 4-2 Refrigerator Service Access Compartment ..................... 4-3 Refrigerator Service Access Compartment ..................... 4-4 Reporting Safety Defects ........................
  • Page 116 Index TV Digital Satellite System Wiring ......................8-4 TV Signal Amplifier ..........................8-4 Undercarriage ............................11-1 Vehicle Certification Label ........................1-4 Vehicle Storage – Preparation ......................11-8 Vehicle Storage – Removal ........................11-8 Vinyl Flooring ............................11-6 Waste Water System ..........................7-5 Water Heater –...

Table of Contents

Save PDF
