Clas Ohlson MPCD521AR User Manual

Portable CD/MP3 Player
Art.no 38-4610 Model MPCD521AR
Please read the entire instruction manual before using the product and save
it for future reference. We reserve the right for any errors in text or images
and any necessary changes made to technical data. If you have any ques-
tions regarding technical problems please contact our customer services.
Product description
Portable CD/MP3 with several practical features. 120-second anti-shock
memory. Resume-feature, LCD-display, battery indicator, programmable,
etc. Operates on 2 x AA/LR6 batteries or a mains adaptor (sold separately).
Safety
Read the player's operating instructions and warnings before beginning to
use it. Note the following safety symbols:
Caution: Do not open the casing! The casing contains
hazardous unshielded live components which if
touched could start a fire or give you an electric shock.
On the CD player
CLASS 1 LASER PRODUCT
Caution: Do not open the casing! The product
CLASS 1
LASER PRODUCT
contains invisible laser beams which can cause
eye damage. Do not look directly into the laser beam
or look directly at it using an optical instrument.
Safety instructions
• This product should only be repaired by qualified service technicians.
• The product should not be taken apart or modified.
• Do not place the product where there is a risk of it falling into water or
other liquid. Do not place any objects containing liquid on the product,
e.g. flower vases or soft drinks.
• Do not disassemble the player. The laser which is used for reading
the discs can cause eye damage.
• Do not insert any foreign objects into the CD player. The CD player is
equipped with a safety device which automatically shuts off the laser
beam when the CD cover opens. However, it can be inactivated if some
type of metal object or other foreign object is inserted into the player.
• Do not subject the player to impacts or vibrations.
• Do not place the player in hot locations. The player's casing can be
damaged by high temperatures such as direct sunlight, radiators or
leaving it in the car in summer.
• Only use the player in temperatures ranging from 5 ºC to 35 ºC and
never in places that are humid or dusty.
• Protect your hearing. Listening to the player on high volume for
prolonged periods can lead to permanent hearing loss.
• Do not use the CD player while driving so that it causes you to lose your
ability to concentrate on the surrounding traffic.

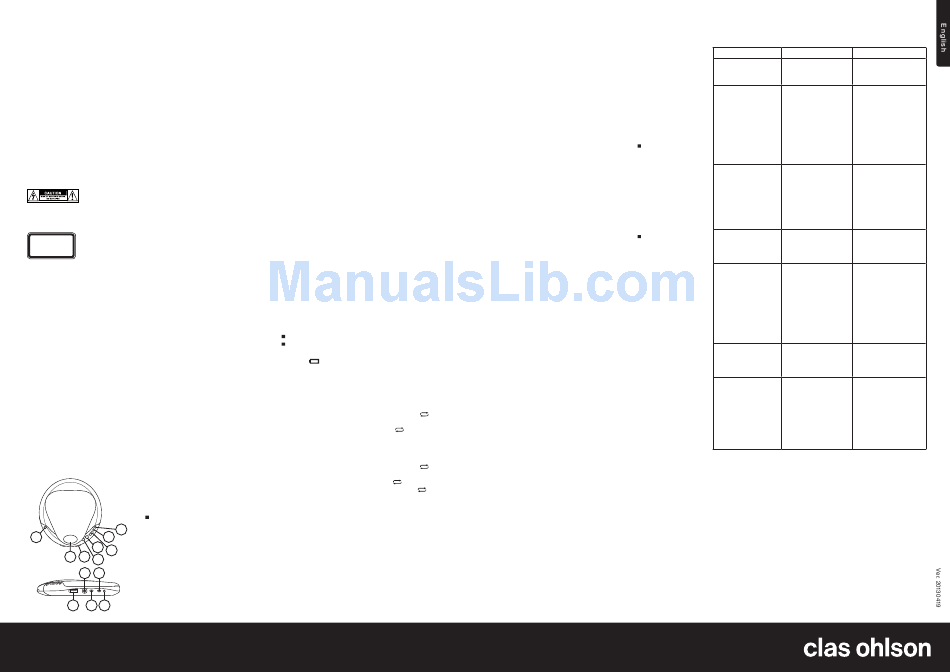

Buttons and functions
1. [OPEN] – CD cover open button
2. Display
3. [ASP/DIR] – Anti-shock button /
change album
4. [ ] – Stop button
5. [►II] – Play/pause control
8
6. [I◄◄/►►I] – Fast forward/rewind
1 7
7. [MODE] – Mode selector
5
8. [PRG] – Programme
6
9. PHONE – Headphone socket
2 3
4
10. [HOLD] – Key lock
11. [VOLUME] – Volume control
9 10
12. [DBBS] – Bass boost
13. DC IN – Adaptor socket
(adaptor sold separately)
11 12 13
GREAT BRITAIN • customer service tel: 08545 300 9799 e-mail: customerservice@clasohlson.co.uk internet: www.clasohlson.com/uk
Getting started
Batteries
Remove the battery cover by sliding it in the direction of the arrow and lifting it
up. Insert 2 x AA/LR6 batteries (not included), according to the markings on the
battery compartment.
Battery safety:
1. Always use two batteries of same type. Never mix new and used batteries.
2. Be careful with the batteries' polarity. If one of the batteries is inserted
incorrectly it can cause leakage.
3. Do not disassemble the batteries and do not expose them to high
temperatures. Never throw batteries onto the fire.
AC/DC Mains Adaptors
This CD/ MP3 player can also be powered by an AC/DC adaptor (sold separately).
The adaptor should be of the type: 4.5 VDC 700 mA DC connector with a + centre pin.
1. Take the batteries out of the player.
2. Plug the AC/DC adaptor into the player and then plug the adaptor into
the wall outlet.
Note: Make sure that the AC/DC adaptor has the correct voltage and polarity
before connecting it. If the voltage or polarity is wrong the CD/MP3 player could
be damaged, which is not covered by the guarantee.
Use
1. Push [OPEN] to open the CD cover.
2. Push a disc onto the spindle with the label side facing up until a click is heard.
3. Close the CD cover again and connect the headphones to the PHONE socket.
4. Push [►II] to turn on the CD player and begin playing the first track.
5. When a CD or MP3 disc is played, the ESP anti-shock system comes on
automatically. The letters "ESP" will flash on the display. Press [ASP/DIR] to
turn the ESP off.
6. Adjust the volume using the [VOLUME] control.
7. Press [I◄◄/►►I] to skip to the previous/next track, hold in one of
the buttons to fast rewind/forward in the current track.
8. Press [►II] once to pause playback. Press it again to resume playback.
9. Press [ ] once to stop playback.
10. Press [ ] twice to shut off the CD player.
11. Pressing [►II] restarts normal playback.
If the battery symbol appears on the display, the batteries are low.
Replace the batteries or use a mains adaptor (sold separately).
Playback functions
CD Repeat mode
• To repeat the current track only, press [MODE] once. The symbol will
be displayed.
• To repeat the entire disc, press [MODE] twice. The symbol will be displayed.
• To exit the repeat mode, press [MODE] until the symbols are no longer displayed.
MP3 Repeat mode
• To repeat the current track only, press [MODE] once. The symbol will
be displayed.
• Press [Mode] twice to repeat the entire album. The symbol will be displayed.
• To repeat the entire disc, press [MODE] three times. The symbol will
be displayed.
• To exit the repeat mode, press [MODE] until the symbols are no longer displayed.
Intro
• This feature plays the first 10 seconds of all tracks.
• Press [MODE] repeatedly until "INTRO" appears on the display.
INTRO can be selected from either the playback mode or stop mode.
• Press [►II] once to start playing the first few seconds of all the tracks
on the disc.
• Press [MODE] to return to normal playback mode.
Random playback
12. Press [MODE] until "RAND" appears on the display. Press [►II] for
random playback. Random playback can be selected from either
the playback mode or stop mode.
• To exit the random mode, press [MODE] until "RAND" disappears from
the display.
Programmed playback for CD
1. While in stop mode, press [PRG] and select the desired track
using [I◄◄/►►I].
2. Press [PRG] to confirm.
3. Repeat step 1 to programme in more tracks.
4. Press [►II] to start playing the programmed tracks.
5. To stop the playback of programmed tracks, press [ ].
Programmed playback for MP3
1. While in stop mode, press [PRG]. Any albums/folders you have
will begin flashing on the display.
2. Select the desired album using [I◄◄/►►I].
3. Press [PRG] to confirm. The songs will begin flashing on the display.
4. Select the desired song using [I◄◄/►►I].
5. Press [PRG] to confirm.
6. Repeat the previous steps to edit the list.
7. Play the programmed tracks by pressing [►II] .
8. To stop the playback of programmed tracks, press [ ].
Functions
DBBS Set the switch to ON to increase the Bass level.
Resume This feature enables the player to resume playback from where it
was interrupted in case the power is cut off unexpectedly.
HOLD This switch prevents any unwanted function changes during
the play or stop mode.
Care and maintenance
Cleaning
Cleaning the pickup lens
• Dust on the pickup lens can lead to poor sound quality and
disrupt functions.
• Lift the CD cover and blow away any dust with the help of a spray can
filled with compressed air like those used for cleaning cameras and
objective lenses.
• You may also use special CDs made for cleaning the pickup lens.
Cleaning the player
• Use a soft cloth lightly moistened with lukewarm water.
• Never use alcohol, petrol or other strong solvents as they can destroy
the plastic surface.
• It is important that no liquid gets inside the CD player.
Consider this if the player is exposed to temperature change
Condensation on the components within the laser pickup can temporarily
impair the player's functions.
Condensation can occur in the following circumstances:
• When you bring the player into a warm room from outdoors or if it is
stored in a cold room which is quickly warmed up.
• During summer if you move the player from an air-conditioned location,
such as a car, to a warm or humid location.
If condensation occurs:
Wait 1–2 hours to allow the player to adjust to the ambient temperature
before using it. Lift the CD cover to quicken the process.
Caution: Do not expose the player to drops or splashes from liquids and do
not place objects containing liquids on the player, e.g. vases or soft drinks.
Remember that the player needs ventilation to prevent overheating.
Troubleshooting guide
Problem Cause Action
The CD player does not Low batteries. Replace the batteries
start or the buttons do or use a mains adaptor
not work. (not included).
The CD does 1. The CD is inserted 1. Turn the CD over.
not play. incorrectly. 2. Try another CD.
2. Damaged or wrong 3. Check that
type of CD. the CD cover is
3. The CD cover is not properly closed.
closed. 4. Take the CD out
4. Condensation on and leave the cover
pickup lens. lifted for an hour to
let the condensation
evaporate.
No sound from 1. Headphone plug 1. Try to reinsert
the headphones. is not correctly the plug.
plugged in. 2. Increase the volume.
2. Volume control is 3. Replace the batteries
set to 0. or use a mains
3. The batteries are adaptor (not included).
too weak. 4. Change the CD.
4. Wrong CD format.
"Er" appears on Wrong CD format. Change the CD.
the display instead of
the total number of
tracks.
The sound disappears 1. Dust/dirt on the 1. Clean the pickup
occasionally. pickup lens or CD. lens using a com-
2. Vibrations are too pressed air spray of
strong for the player the same type used
to handle. for cleaning cameras
and objective lenses.
Clean or replace the
CD.
2. Place the CD player
on another surface.
Poor sound quality. 1. The volume setting 1. Reduce the volume.
is too high. 2. Replace the batteries
2. The batteries are or use a mains adaptor
too weak. (not included).
The display locks up Temporary programme Remove the batteries
or displays unrecogni- or electronic error. (and disconnect the
sable symbols. mains adaptor if used).
Wait for about 15 se-
conds and then reinsert/
connect them again.
Check that the batteries
you are using are in
good condition.
Disposal
This product should be disposed of in accordance with local regulations.
If you are unsure how to proceed, contact your local authority.
Specifications
Headphone socket 20 mW + 20 mW (32 ohms)
Power supply Batteries 2 × AA/LR6 (not included)
Mains adaptor 4.5 V DC 700 mA DC connector
with + centre pin (not included)
Size (D x W x H) 150 × 135 × 30 mm
Weight Approx. 190 g (without batteries)
Frequency response 20 Hz – 20 kHz
