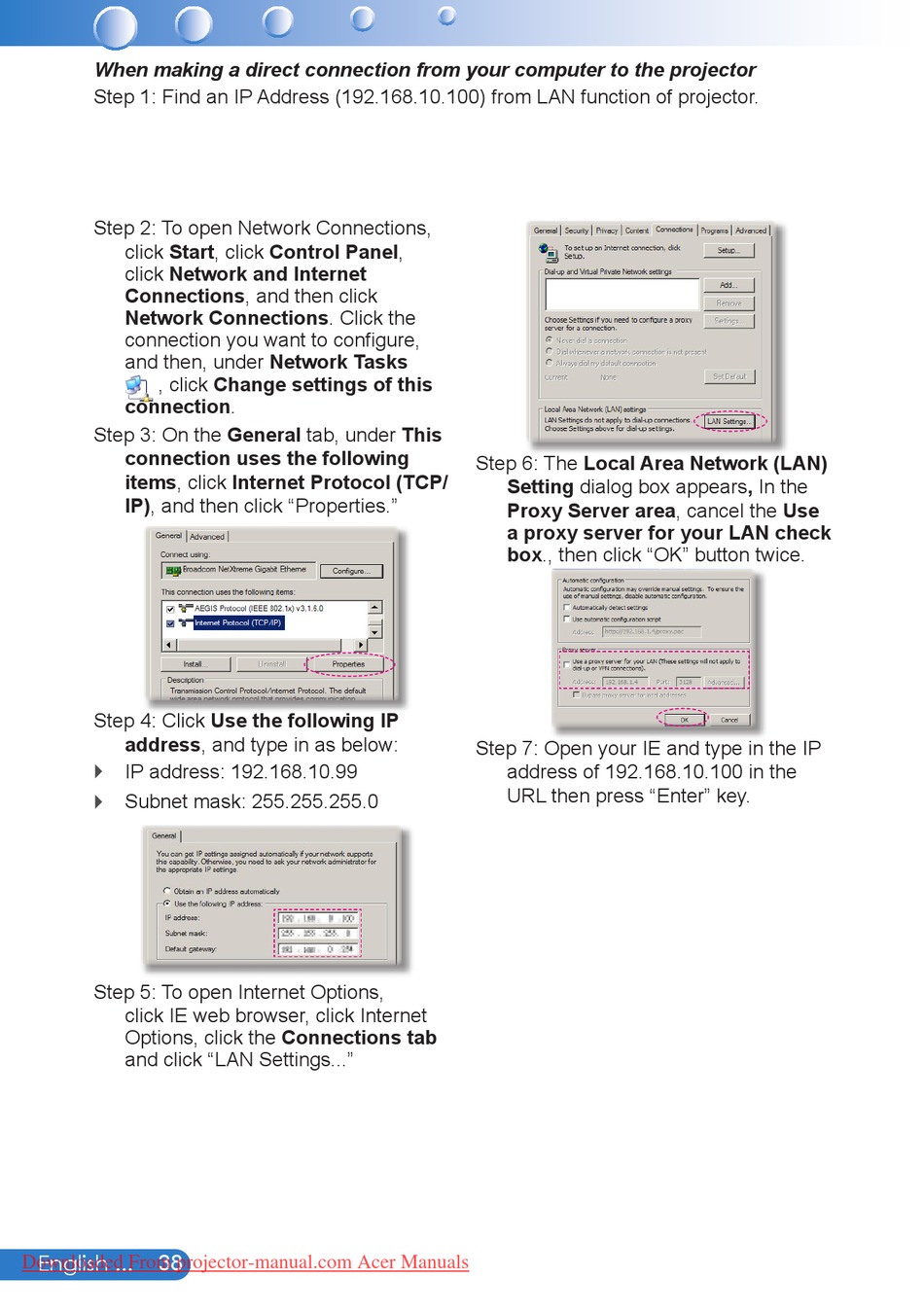

When making a direct connection from your computer to the projector
Step 1: Find an IP Address (192.168.10.100) from LAN function of projector.
Step 2: To open Network Connections,
click Start, click Control Panel,
click Network and Internet
Connections, and then click
Network Connections. Click the
connection you want to configure,
and then, under Network Tasks
, click Change settings of this
connection.
Step 3: On the General tab, under This
connection uses the following
items, click Internet Protocol (TCP/
IP), and then click "Properties."
Step 4: Click Use the following IP
address, and type in as below:
IP address: 192.168.10.99
`
Subnet mask: 255.255.255.0
`
Step 5: To open Internet Options,
click IE web browser, click Internet
Options, click the Connections tab
and click "LAN Settings..."
English ...
38
Downloaded From projector-manual.com Acer Manuals
Step 6: The Local Area Network (LAN)
Setting dialog box appears, In the
Proxy Server area, cancel the Use
a proxy server for your LAN check
box., then click "OK" button twice.
Step 7: Open your IE and type in the IP
address of 192.168.10.100 in the
URL then press "Enter" key.
