5.6 Removing from the DIN rail

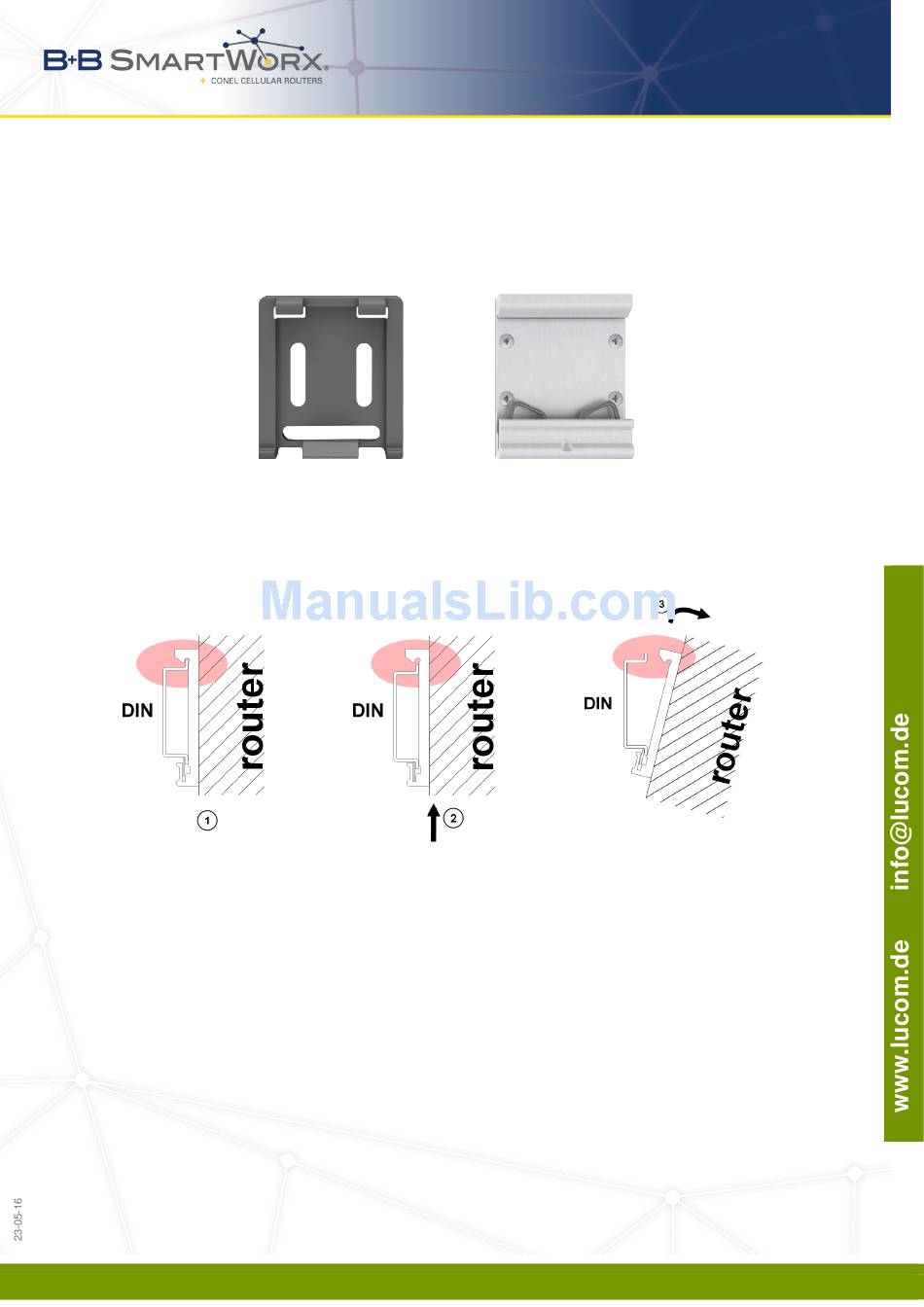

DIN holder is suitable for DIN rail according to EN 60715 standard only. Default position of
CPD2 holder (or CKD2 for metal version), which is used for mounting the router on a DIN rail,
is shown in the following figure:
For removing from the DIN rail it is necessary to lightly push upward the router so that the
top part of the CPD2 holder (or CKD2 for metal version) hitched to the DIN rail get out of this
rail and then fold out the top part of the router away from the DIN rail.
LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. 09127/59 460-10 * Fax. 09127/59 460-20 * www.lucom.de
Figure 14: Default position of DIN holder
Figure 15: Removing from the DIN rail
