5.7 Description of the front panel
On the front panel is the following:
Caption Connector
PWR 2-pin
ETH RJ45
PORT1 RJ45
PORT2 RJ45
USB USB-A Host
I/O 3-pin
LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. 09127/59 460-10 * Fax. 09127/59 460-20 * www.lucom.de
Description
Connector for the power supply.
Connector for connection into the local computer network.
Connector for expansion port RS232, RS458/422, MBUS,
ETHERNET, CNT or SWITCH.
Connector for expansion port RS232, RS485/422, MBUS,
SWITCH, WIFI, WMBUS or SDH.
Connector for connection of USB devices to the router. Sup-
ports devices with PL-2303 and FTDI USB/RS232 converters.
Connector for connection of the binary input and output.
Table 4: Front panel description

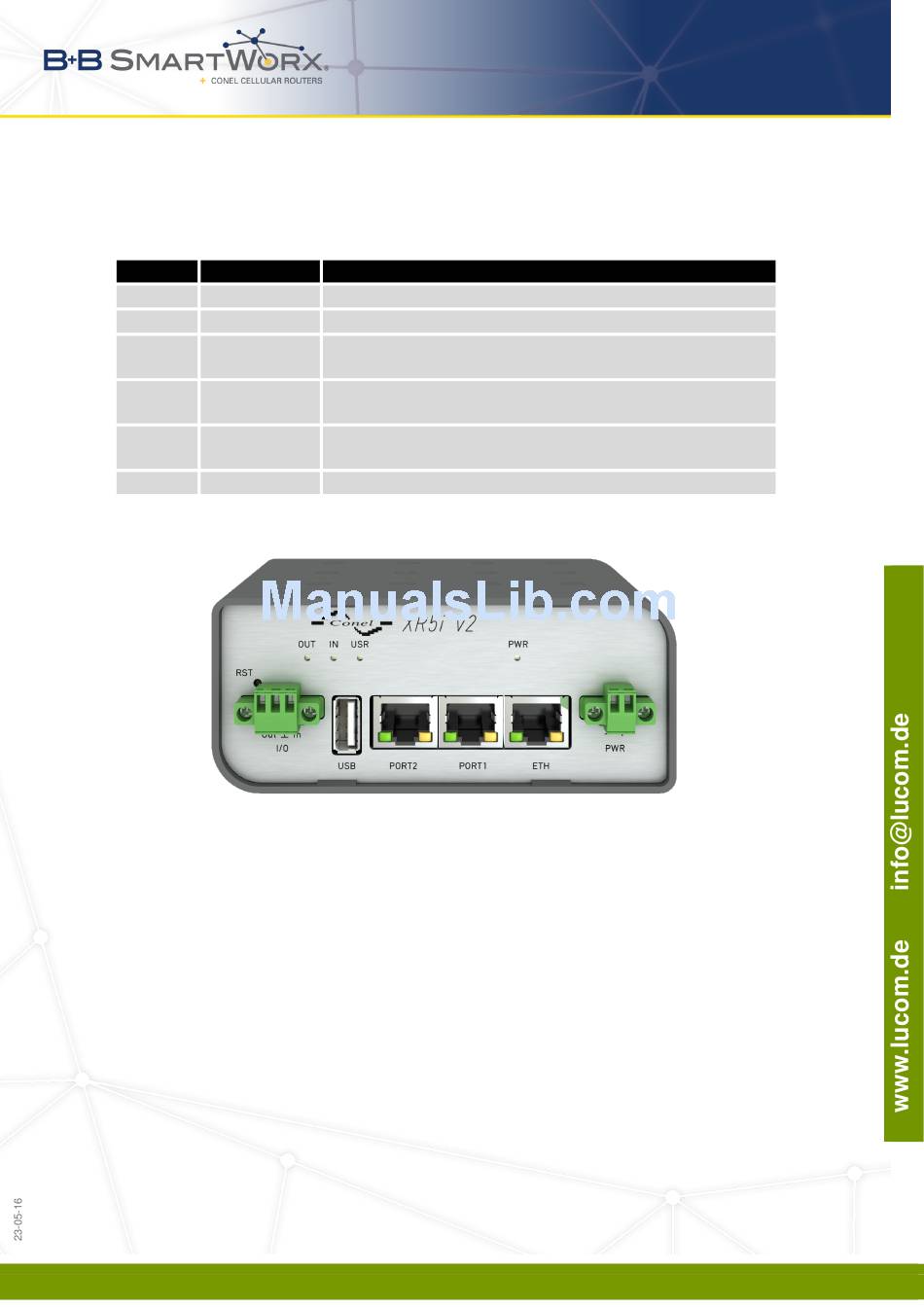

Figure 16: Front panel XR5i v2F
13
5. ROUTER DESIGN
