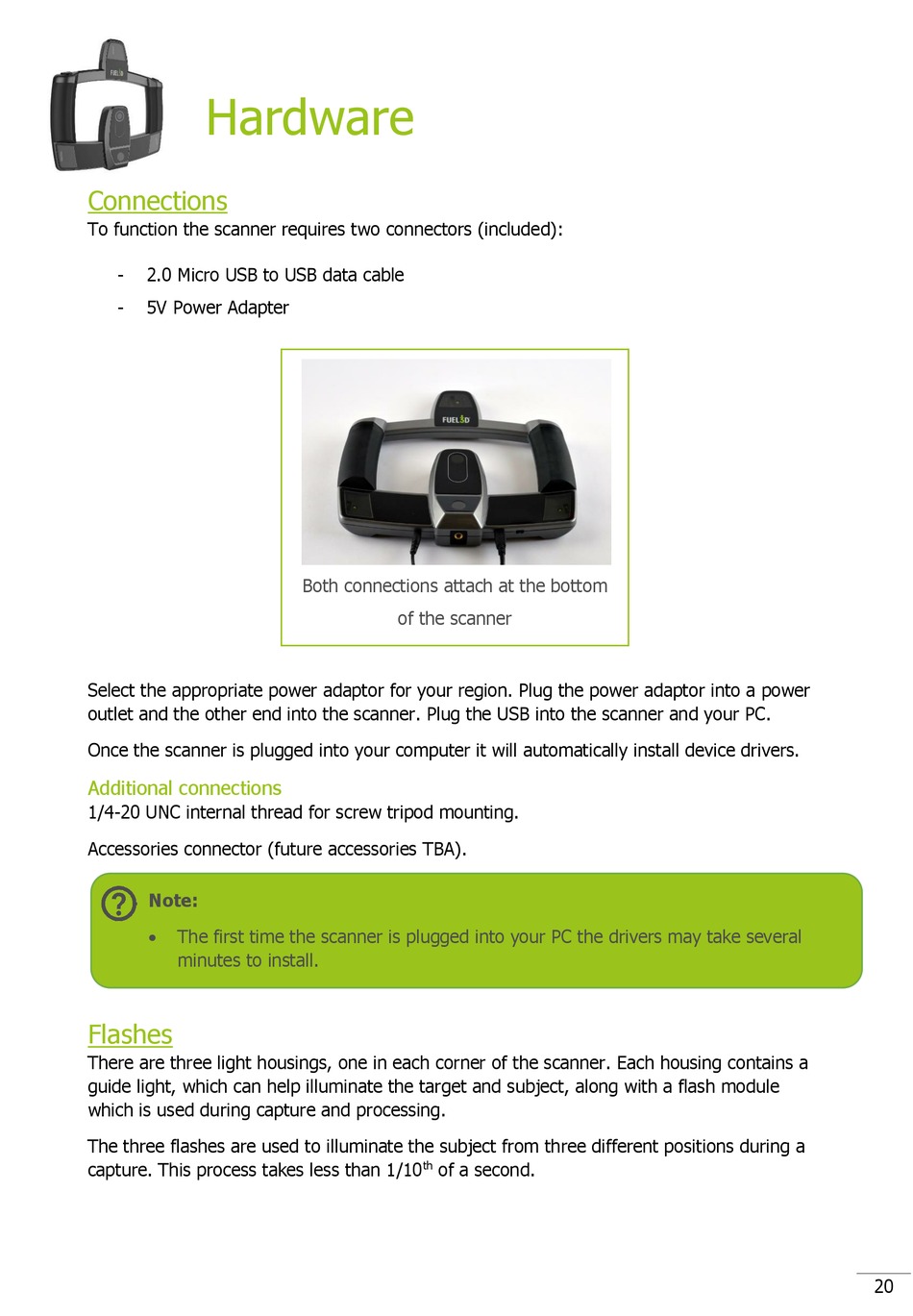

Hardware

Connections

To function the scanner requires two connectors (included):
- 2.0 Micro USB to USB data cable
- 5V Power Adapter
Select the appropriate power adaptor for your region. Plug the power adaptor into a power
outlet and the other end into the scanner. Plug the USB into the scanner and your PC.
Once the scanner is plugged into your computer it will automatically install device drivers.
Additional connections
1/4-20 UNC internal thread for screw tripod mounting.
Accessories connector (future accessories TBA).
Note:
 The first time the scanner is plugged into your PC the drivers may take several
minutes to install.

Flashes

There are three light housings, one in each corner of the scanner. Each housing contains a
guide light, which can help illuminate the target and subject, along with a flash module
which is used during capture and processing.
The three flashes are used to illuminate the subject from three different positions during a
capture. This process takes less than 1/10
Both connections attach at the bottom
of the scanner
th of a second.
