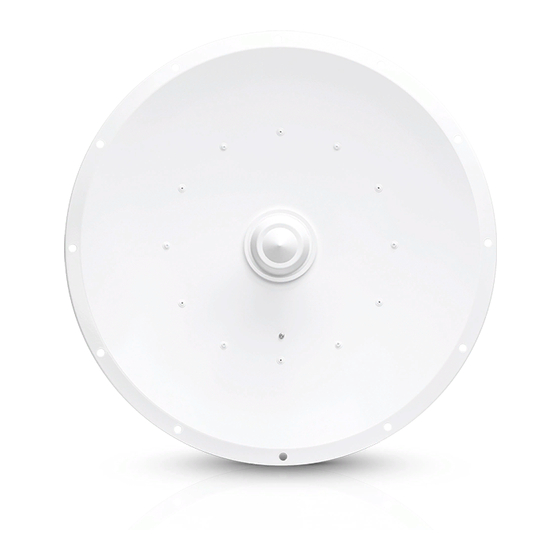

- Page 1 2.4 GHz, 24 dBi Slant 45 Antenna for airFiber ® Model: AF-2G24-S45 https://arttel.ru/shop/antenny/ubiquiti-airfib...
-
Page 2: Package Contents
Guide Products may be different from pictures and are subject to change without notice. TERMS OF USE: Ubiquiti radio devices must be professionally installed. Shielded Ethernet cable and earth grounding must be used as conditions of product warranty. TOUGHCable™ is designed for outdoor installations. It is the customer’s responsibility to follow local country regulations, including operation within legal frequency channels, output power, and Dynamic Frequency Selection (DFS) requirements. -
Page 3: Installation Requirements
• Shielded Category 5 (or above) cabling should be used for all wired Ethernet connections and should be grounded through the AC ground of the PoE. Hardware Overview Elevation Rod Pole Clamp Protective Shroud Mounting Bracket Pole Clamp Stabilizer Brackets Fully Assembled Back View https://arttel.ru/shop/antenny/ubiquiti-airfib... -
Page 4: Hardware Installation
Antenna Feed. b. Fasten the Antenna Feed to the Dish Reflector using the four M4 Bolts. c. Tighten the four M4 Bolts. M4 Bolts Important: Do not handle the antenna by the Antenna Feed once the feed is connected. https://arttel.ru/shop/antenny/ubiquiti-airfib... - Page 5 WARNING: Failure to properly ground your airFiber radio will void your warranty. Note: The ground wire should be as short as possible and no longer than one meter in length. https://arttel.ru/shop/antenny/ubiquiti-airfib...
- Page 6 5. Attach the airFiber radio to the Dish Reflector. a. Align the mounting tabs on the back of the radio with the mounting bracket located below the Antenna Feed. b. Slide the radio down to lock it into place. *640-00190-02* 640-00190-02 https://arttel.ru/shop/antenny/ubiquiti-airfib...
- Page 7 6. Attach the RF cables from the Antenna Feed to the connectors labeled Chain 0 and Chain 1 on the airFiber radio. Note: When positioning the RF cables, create smooth loops to avoid sharp kinks that may damage the cables. https://arttel.ru/shop/antenny/ubiquiti-airfib...
- Page 8 8. Attach the Protective Shroud. a. Align the arrow on the top of the shroud with the short hash mark on the Dish Reflector. b. Rotate the shroud clockwise until it aligns with the long hash mark to lock into place. https://arttel.ru/shop/antenny/ubiquiti-airfib...
- Page 9 Note: Each Carriage Bolt includes a washer, spring lock washer, and nut. Remove these and use them to secure the bolts in the following steps. 11. Insert the four M10x150 Carriage Bolts into the Mounting Bracket. https://arttel.ru/shop/antenny/ubiquiti-airfib...
- Page 10 Secure each M10x25 Carriage Bolt with one washer, one spring lock washer, and one nut. d. Place the magnetic GPS antenna on the Mounting Bracket (this is temporary; you will place the GPS antenna on the GPS antenna mount later). https://arttel.ru/shop/antenny/ubiquiti-airfib...
- Page 11 Place one Stabilizer Bracket on each side of the pole. b. Insert the two M10x100 Carriage Bolts into the Stabilizer Brackets. c. Secure each M10x100 Carriage Bolt with one washer, one spring lock washer, and one nut. d. Tighten the nuts to approximately 50 N-m. https://arttel.ru/shop/antenny/ubiquiti-airfib...
- Page 12 Secure each Carriage Bolt with one washer, one spring lock washer, and one nut. Note: Do not tighten the nuts yet. The antenna should be able to rotate around the pole to allow for azimuth adjustment in the next step. https://arttel.ru/shop/antenny/ubiquiti-airfib...
- Page 13 Stabilizer Brackets. b. To adjust the elevation angle, tighten or loosen the nuts on the Elevation Rod so that the Dish Reflector is set to the desired tilt. c. Tighten all bolts and nuts to approximately 50 N-m. Nuts https://arttel.ru/shop/antenny/ubiquiti-airfib...
- Page 14 1. Attach the GPS antenna mount to the pole using the metal strap, or attach it to a wall using the appropriate fasteners (not included). 2. Place the GPS antenna on the mount. 3. Secure the cable of the GPS antenna to the mount with a cable tie. https://arttel.ru/shop/antenny/ubiquiti-airfib...
-
Page 15: Specifications
200 km/h (125 mph) Wind Loading 787 N @ 200 km/h (177 lbf @ 125 mph) Polarization Dual Linear Cross-Pol Isolation 35 dB Min. ETSI Specification EN 302 326 DN2 Mounting Universal Pole Mount, airFiber Radio Mount, and Weatherproof RF Jumpers Included https://arttel.ru/shop/antenny/ubiquiti-airfib... -
Page 16: Safety Notices
There are no operator serviceable parts inside this equipment. Service should be provided only by a qualified service technician. https://arttel.ru/shop/antenny/ubiquiti-airfib... -
Page 17: Limited Warranty
Ubiquiti MAC label, or is missing any other original Ubiquiti label(s); or (VII) has not been received by Ubiquiti within 30 days of issuance of the RMA. In addition, the above warranty shall apply only if: the product has been properly installed and used at all times in accordance, and in all material respects, with the applicable Product documentation;... - Page 18 No Products will be accepted for replacement or repair without obtaining a Return Materials Authorization (RMA) number from UBIQUITI NETWORKS during the warranty period, and the Products being received at UBIQUITI NETWORKS’ facility freight prepaid in accordance with the RMA process of UBIQUITI NETWORKS.
-
Page 19: Limitation Of Liability
Limitation of Liability EXCEPT TO THE EXTENT PROHIBITED BY LOCAL LAW, IN NO EVENT WILL UBIQUITI OR ITS SUBSIDIARIES, AFFILIATES OR SUPPLIERS BE LIABLE FOR DIRECT, SPECIAL, INCIDENTAL, CONSEQUENTIAL OR OTHER DAMAGES (INCLUDING LOST PROFIT, LOST DATA, OR DOWNTIME COSTS), ARISING... - Page 20 Folgen für Umwelt und die menschliche Gesundheit zu vermeiden. Wenn Sie weitere Informationen zur Entsorgung Ihrer Altgeräte benötigen, wenden Sie sich bitte an die örtlichen Behörden oder städtischen Entsorgungsdienste oder an den Händler, bei dem Sie das Produkt erworben haben. https://arttel.ru/shop/antenny/ubiquiti-airfib...
- Page 21 Per ricevere informazioni più dettagliate circa lo smaltimento delle vecchie apparecchiature in Vostro possesso, Vi invitiamo a contattare gli enti pubblici di competenza, il servizio di smaltimento rifiuti o il negozio nel quale avete acquistato il prodotto. https://arttel.ru/shop/antenny/ubiquiti-airfib...
-
Page 22: Declaration Of Conformity
[German] Anforderungen und den anderen relevanten Vorschriften der Richtlinie 1999/5/EG befindet. Ελληνική Δια του παρόντος, UBIQUITI NETWORKS, δηλώνει ότι αυτή η συσκευή UBIQUITI NETWORKS, είναι σε συμμόρφωση με τις [Greek] βασικές απαιτήσεις και τις λοιπές σχετικές διατάξεις της οδηγίας 1995/5/ΕΚ. -
Page 23: Online Resources
[Swedish] egenskapskrav och övriga relevanta bestämmelser som framgår av direktiv 1999/5/EG. Español Por medio de la presente UBIQUITI NETWORKS declara que este dispositivo UBIQUITI NETWORKS, cumple con los requisitos [Spanish] esenciales y cualesquiera otras disposiciones aplicables o exigibles de la Directiva 1999/5/CE. - Page 24 ©2015 Ubiquiti Networks, Inc. All rights reserved. Ubiquiti, Ubiquiti Networks, the Ubiquiti U logo, the Ubiquiti beam logo, airFiber, and TOUGHCable are trademarks or registered trademarks of Ubiquiti Networks, Inc. in the United States and in other countries. All other trademarks are the property of their respective owners.
