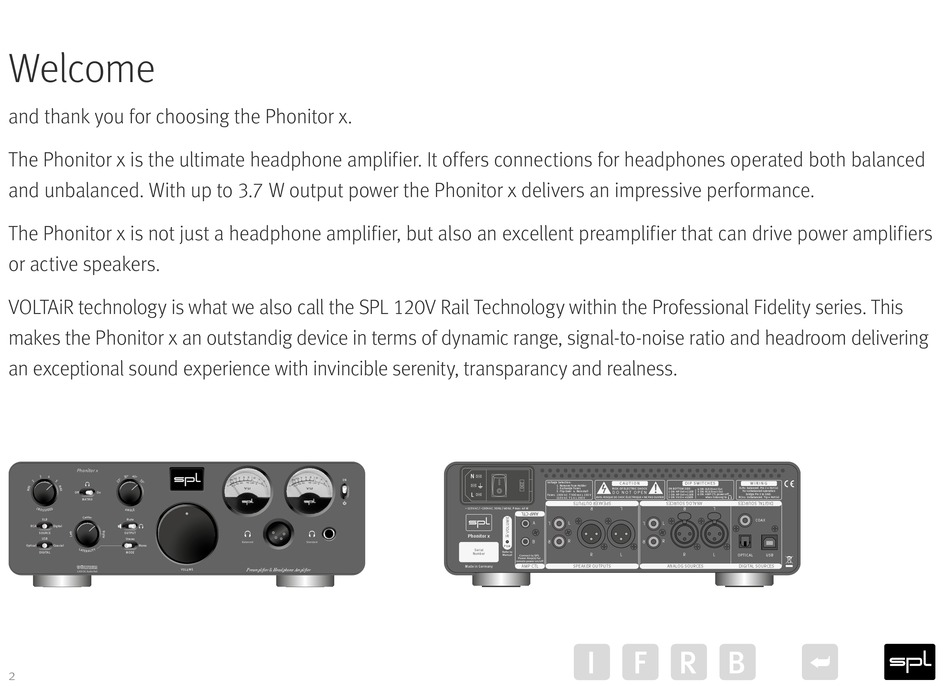

Welcome
and thank you for choosing the Phonitor x.
The Phonitor x is the ultimate headphone amplifier. It offers connections for headphones operated both balanced
and unbalanced. With up to 3.7 W output power the Phonitor x delivers an impressive performance.
The Phonitor x is not just a headphone amplifier, but also an excellent preamplifier that can drive power amplifiers
or active speakers.
VOLTAiR technology is what we also call the SPL 120V Rail Technology within the Professional Fidelity series. This
makes the Phonitor x an outstandig device in terms of dynamic range, signal-to-noise ratio and headroom delivering
an exceptional sound experience with invincible serenity, transparancy and realness.
Phonitor x
Off On
MATRIX
XLR
Mute
RCA Digital
SOURCE OUTPUT
USB Stereo
Optical Coaxial Mono
DIGITAL MODE
VOLTAiR
120V DC Audio Rail
2
ON
Balanced Standard
Preamplifier & Headphone Amplifier
Voltage Selection:
C A U T I O N
1. Remove Fuse Holder
2. Exchange Fuses
RISK OF ELECTRIC SHOCK
3. Flip Over 4. Reinstall
D O N O T O P E N
Fuses: 230V AC: T 500 mA L 250 V
AVIS: RISQUE DE CHOC ÉLECTRIQUE • NE PAS OUVRIR
115V AC: T 1 A L 250 V
~ 115V AC / ~230V AC, 50 Hz / 60 Hz, P max. 45 W
A L
Phonitor x
IR
B R
PGM
Serial
Refer to
Number R L
Manual
Connect to SPL
Power Amp(s) for
remote power on/off
Made in Germany AMP CTL SPEAKER OUTPUTS
I F R B
DIP SWITCHES W I R I N G
XLRs: balanced, Pin 2 = Hot (+)
ON BOTTOM SIDE: 4 ON: XLR Direct Out
For unbalanced operation
1 ON: HP Out +22dB 5 ON: RCA Direct Out
6 ON: AMP CTL power off bridge Pin 3 to GND.
2 ON: HP Out +12dB
3 ON: VU 0 = +10dB when listening to RCAs: Unbalanced, Tip = Hot (+)
COAX
L
R
R L
OPTICAL USB
ANALOG SOURCES DIGITAL SOURCES
