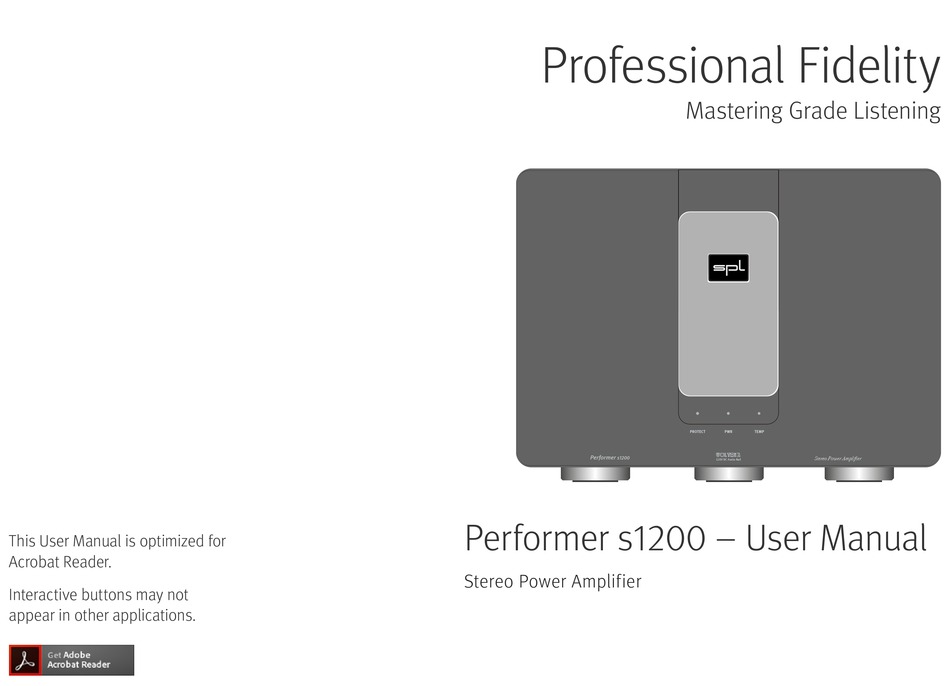

- Page 1 Professional Fidelity Mastering Grade Listening PROTECT TEMP VOLTAiR Performer Stereo Power Amplifier 120V DC Audio Rail Performer s1200 – User Manual This User Manual is optimized for Acrobat Reader. Stereo Power Amplifier Interactive buttons may not appear in other applications.
- Page 2 2 x 550 W into 2 ohms, 2 x 520 W into 4 ohms and 2 x 300 W into 8 ohms with ease. VOLTAiR Technology is what we also call the SPL 120V Technology within the Professional Fidelity series. This makes the Performer s1200 an outstandig device in terms of dynamic range, signal-to-noise ratio and headroom delivering an exceptional sound experience with invincible serenity, transparency and realness.
-
Page 3: Table Of Contents
Content Specifications Line Input & Line Output Speaker output Getting started Output power (Sine at 1kHz) Front view Output voltage Rear view Output impedance VOLTAiR – 120V Technology Damping factor Frequency response Comparisons Signal-to-noise ratio Ornamental inlays Gain Inputs Total harmonic distortion Input select Internal Voltage Gain Trim... -
Page 4: Getting Started
Getting started Getting started Read thoroughly and follow the instructions as well as the security advices of the Quickstart which is enclosed in the scope of delivery! You can also download the Quickstart here. By pressing the -Button you get to the table of contents. By pressing the -Button you get to the front view of the unit. -
Page 5: Front View
Front view Front view Ornamental Inlay PROTECT TEMP VOLTAiR Performer Stereo Power Amplifier 120V DC Audio Rail Protection LED Temperature LED Power LED... -
Page 6: Rear View
Connect to RISK OF ELECTRIC SHOCK T . A 1. Remove Fuse Holder D O N O T O P E N SPL devices 2. Exchange Fuses supporting AVIS: RISQUE DE CHOC ÉLECTRIQUE • NE PAS OUVRIR AMP CTL V AC: 3. -
Page 7: Voltair - 120V Technology
VOLTAiR – 120V Technology VOLTAiR – 120V Technology VOLTAiR is the synonym for our 120V Technology within the Professional Fidelity series. The audio signals are pro- cessed with an unequalled +/-60V DC, which corresponds to twice that of discrete operational amplifiers and four- times that of semiconductor operational amplifiers. -
Page 8: Comparisons
Operating Voltage Dynamic Range Volt OPA 134@30 V SPL-OP@120 V + / - 15 Volt + / - 60 Volt... - Page 9 130%. The operating level most commonly used for audio equipment is +/- 15 volts. Max. Audio Level THD&N -105 -107 -109 -111 -113 -115 OPA 134@30 V SPL-OP@120 V TL 071@30 V SPL-OP@120 V...
-
Page 10: Ornamental Inlays
Ornamental inlays Ornamental inlays The Performer s1200 comes with three ornamental inlays: in black, red and silver. They can be combined with the chosen color of the main front panel. A neodymium magnet holds the ornamental inlay in place. This allows easy exchange and gives you the unique opportunity to style your power amplifier. -
Page 11: Inputs
Pin = GND Pin = Hot (+) Pin = Cold (–) Minimum Load Minimum Load SPEAKER OUTPUT RIGHT SPEAKER OUTPUT LEFT XLR WIRING Connect to AMP CTL output of SPL Preampli er/DAC for remote power on/o V Trigger AMP CTL/ V TRIGGER... -
Page 12: Input Select
Inputs Input select With the Input Select switch (8) you can switch the input source between XLR or RCA. You can not use both at the same time. INPUT RIGHT INPUT SELECT – – Gain Trim TRIM TRIM The inputs can be lowered with the Gain TRIM switch (9) from 0 dB to -5.5 dB in 0.5 dB Minimum Load... -
Page 13: Speaker Outputs
XLR WIRING plugs of the gold-plated loudspeaker binding posts. Make sure not to mix up the polarity of the loudspeaker outputs. Connect to AMP CTL output of SPL Preampli er/DAC for remote power on/o V Trigger AMP CTL/ V TRIGGER... -
Page 14: Protection Circuits
Protection circuits Protection circuits The Performer s1200 has protection circuits against DC (direct current) voltage at the output and against overheating. DC Protection If DC is detected at one of the outputs, the Performer s1200 automatically switches off. DC voltage can be an indi- cation for a defective power stage. -
Page 15: Overheating Protection Circuit
Protection circuits Overheating protection circuit The Performer s1200 is actively cooled with six temperature controlled fans that usually do nothing at all, because 90 % of the heat is passively dissipated via massive heat sinks. Should it nevertheless become really loud for a really long time, the processor-controlled fans remain virtually inaudible at only 19 dB (A). -
Page 16: Amp Ctl (Standby / Amplifier Control)
XLR WIRING AMP CTL (Standby / Amplifier Control) If you own an SPL device supporting AMP CTL output(s) you can trigger standby and operation. Therefore connect the AMP CTL output of the SPL device with a mono mini Connect to... -
Page 17: Specifications
Specifications Specifications Line Input & Line Output • Neutrik XLR, balanced, Pin 2 = (+) • Input impedance: 20 kOhms • Input trimming: 0 dB to -5.5 dB in 0.5 dB steps • Input sensitivity: +12.5 dBu Speaker output • 2 pairs gold-plated binding posts with ø4 mm cable hole (screwable) and banana plug;... -
Page 18: Output Voltage
Specifications Output voltage • 160 V Peak-to-Peak • 54.6 V RMS Output impedance • < 0.031 Ohm, 20 Hz to 20 kHz Damping factor • > 290 at 1 kHz and 8 ohms Frequency response • 10 Hz to 80 kHz... -
Page 19: Signal-To-Noise Ratio
Specifications Signal-to-noise ratio • > 118 dB (wide-band, unweighted, referred to full power output) • > 123 dB (A-weighted) Gain • 26 dB Total harmonic distortion • < 0.04% at 1 kHz, at 300 W, 8 ohms • < 0.09% at 1 kHz, at 520 W, 4 ohms •... -
Page 20: Internal Voltage
TRIM Specifications Internal Voltage • +/- 60 V Power supply INPUT RIGHT INPUT SE • Mains voltage: 230 V AC / 50 Hz; 115 V AC / 60 Hz • Fuses: 230 V: T 6.3 A; 115 V: T 10 A •... -
Page 21: Important Notes
Technical specifications are subject to change. © 2021 SPL electronics GmbH. This document is the property of SPL and may not be copied or reproduced in any manner, in part or fully, without prior authorization by SPL. Sound Performance Lab (SPL) continuously strives to improve its products and reserves the right to modify the product described in this manual at any time without prior notice.
