Compass Model SPORT X Assembly Manual page 7

3

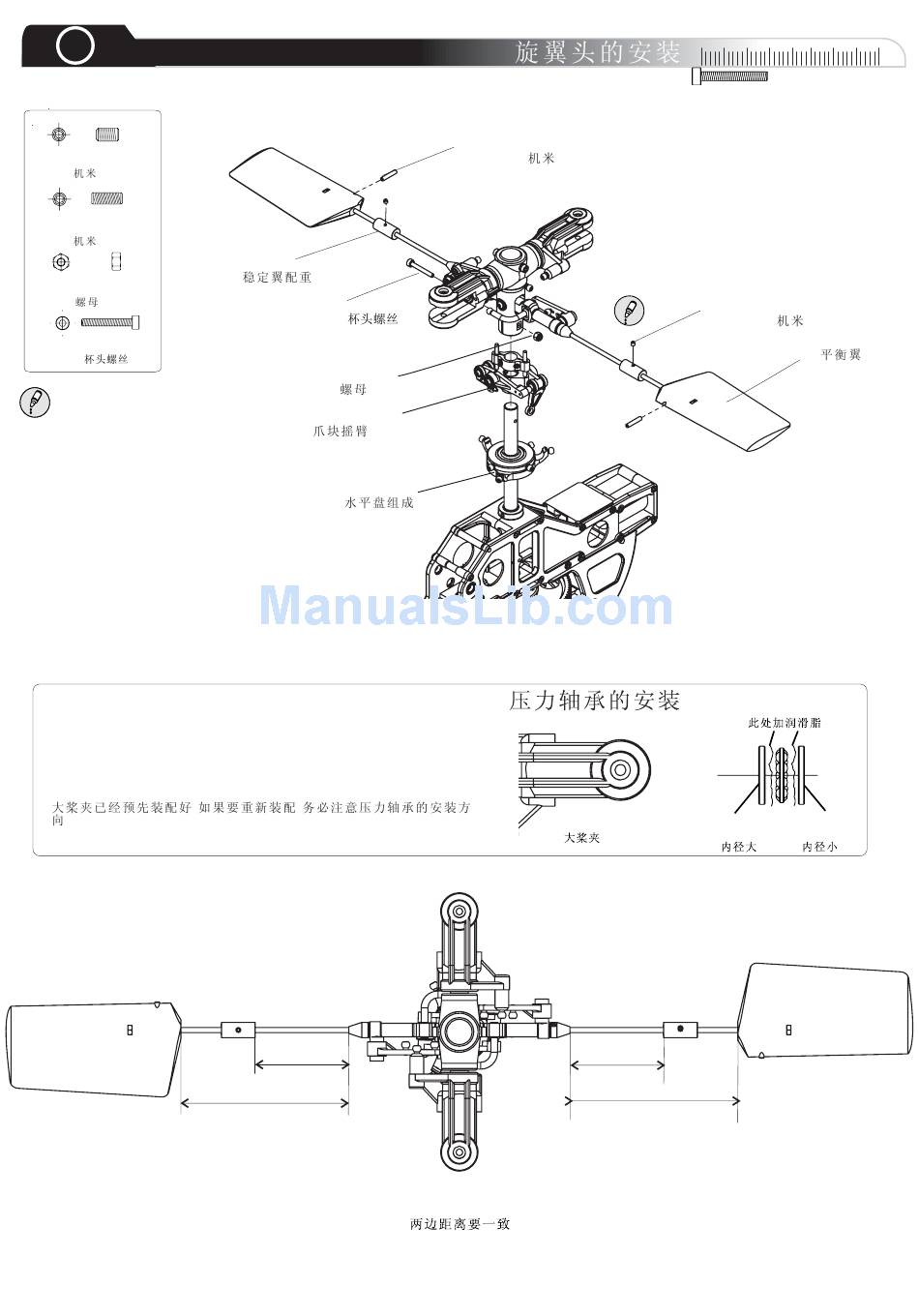

Ro to r ,W asho ut & Swashp late/
M3x4 Set Screw x2
M3x10 Set Screw x2
M3 Nut x1
M3x22 Cap Head
Bolt x1
Use Threadlock
Thrust Bearing Direction
Main grips are factory preassembled, in case of reassem-
bling, be sure to note correct placement of large/small I.D.
washers during assembly.
,
Fly bar Weigh t
M3x22 Cap Head
Bolt x1
M3 Nyl on Nut
Wash out Link
Swash Plate
.
B
A
Adjust so that each side has exactly the same length
M3x10 S et Sc rew
Main Grip
B
0
10 20
M3x 4 Set Screw
Paddle
Apply Grease Here
Larger ID
Smaller ID
(IN)
(OUT)
A
30 40
