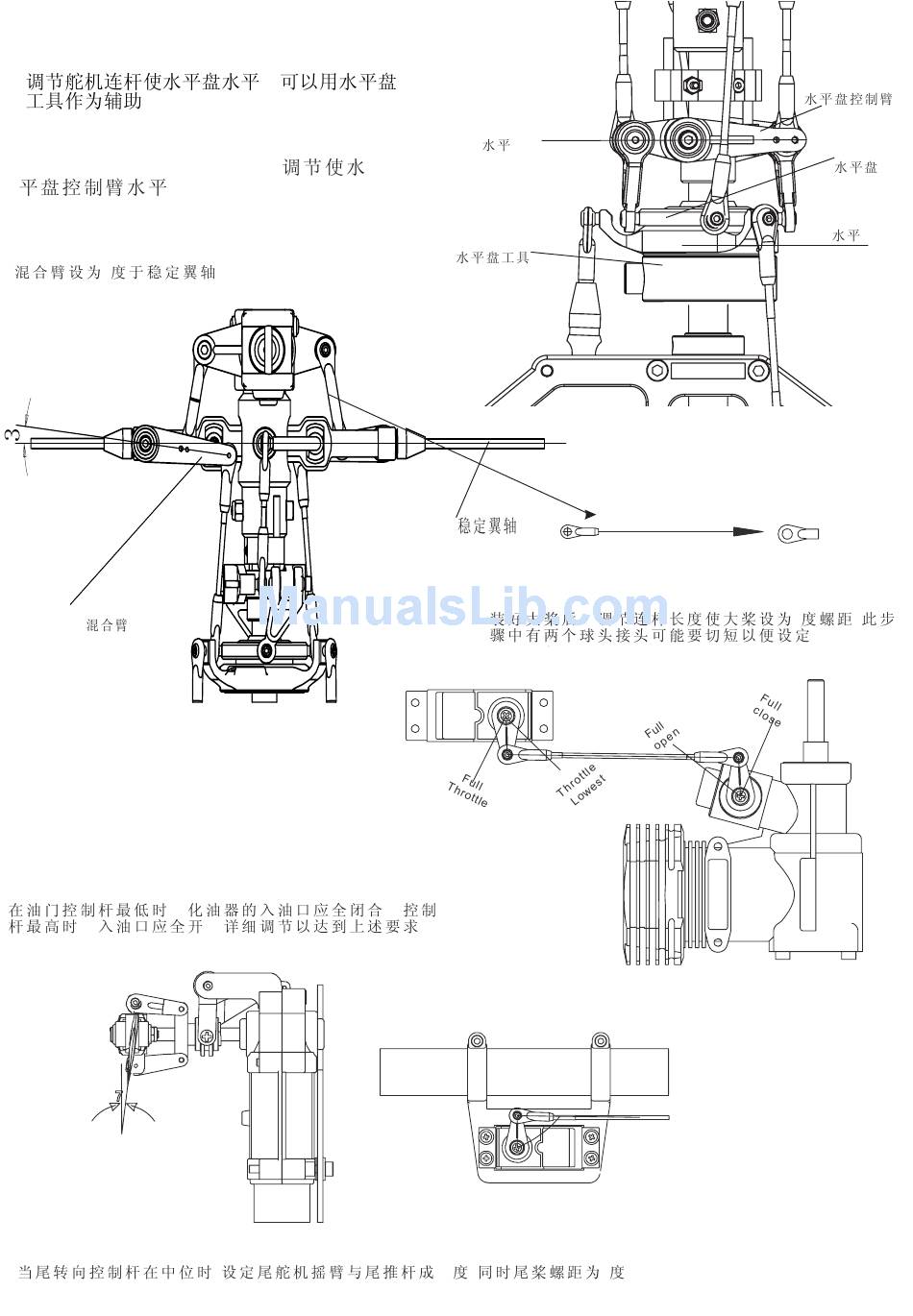

Compass Model SPORT X Assembly Manual page 16

C) Adjust the link from the servo arms to the
swash plate to level the swash plate. Use a
compass swash Plate Tool as guide.
。
D) Set Washout Arms level.
。
E)Mixing Arm is set 3deg down to the flybar.
3
Mixing Arm
G At the low throttle stick and the throttle trim )
the carburetor hole should be completely close. At
full throttle stick, carburetor hole should be
completely open. Adjust the ATV in radio, or/and the
control horn position on the engine to achieve above
requirement. Make sure the servo does not bind at
any traveling point.
，
，
H)At Rudder Middle Stick, Set Rudder Servo 90 degree to the tail link And Set Tail Blade to 7 deg Pitch.
。
。
,
Horizontal
06-0501 Swash Plate
Tool
Flybar
F) Install the main blade and set the Main Blade
to 0 pitch. 2 Ball Links might need to be cut
shorter to get the right pitch
,
。
。
90
9 0 ,
Cut
，
7 .
Washout Arm
SwashPlate
Horizontal
0 .
