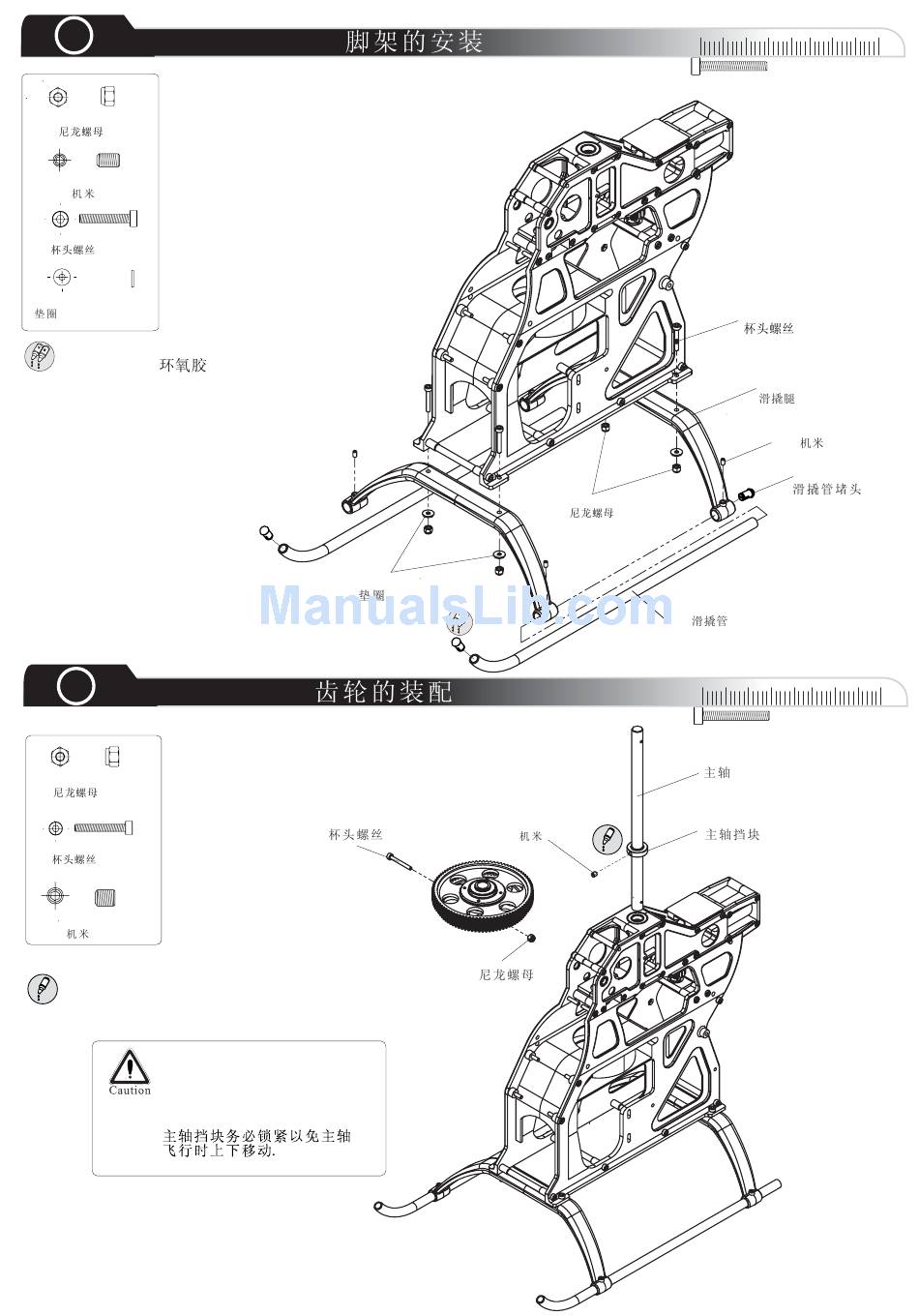

Compass Model SPORT X Assembly Manual page 6

1
L an di n g Gea r /
M3 Nylon Lock Nut
x4
M3x5 Set Screw X 4
M3x18 Cap Head Bolt
x4
3mm Washer X 4
Use AB Glue
2
M ain Gear /
M3 Nylon Lock Nut
x1
M3x28 Cap Head Bolt
x1
M4x4 Set Screw X 1
Use Threadlock
Make sure mast collar is tightened
securely onto the mast. Double-check
to make sure the mast lock collar is
properly seated onto the mast and
main shaft can not move up or down.
3mm Washer
M3x 28 Ca p Head Bolt
M3 Nylon Nut
M4x4 Set Screw
M3Ny lon N ut
0 10 30
20
M3x18 Cap Head Bolt
Struts
M3x5 Set Screw
S k i d C a p
Skid
0
10 20 30
Mai n Sha ft
Mas tCollar
40
40
