7

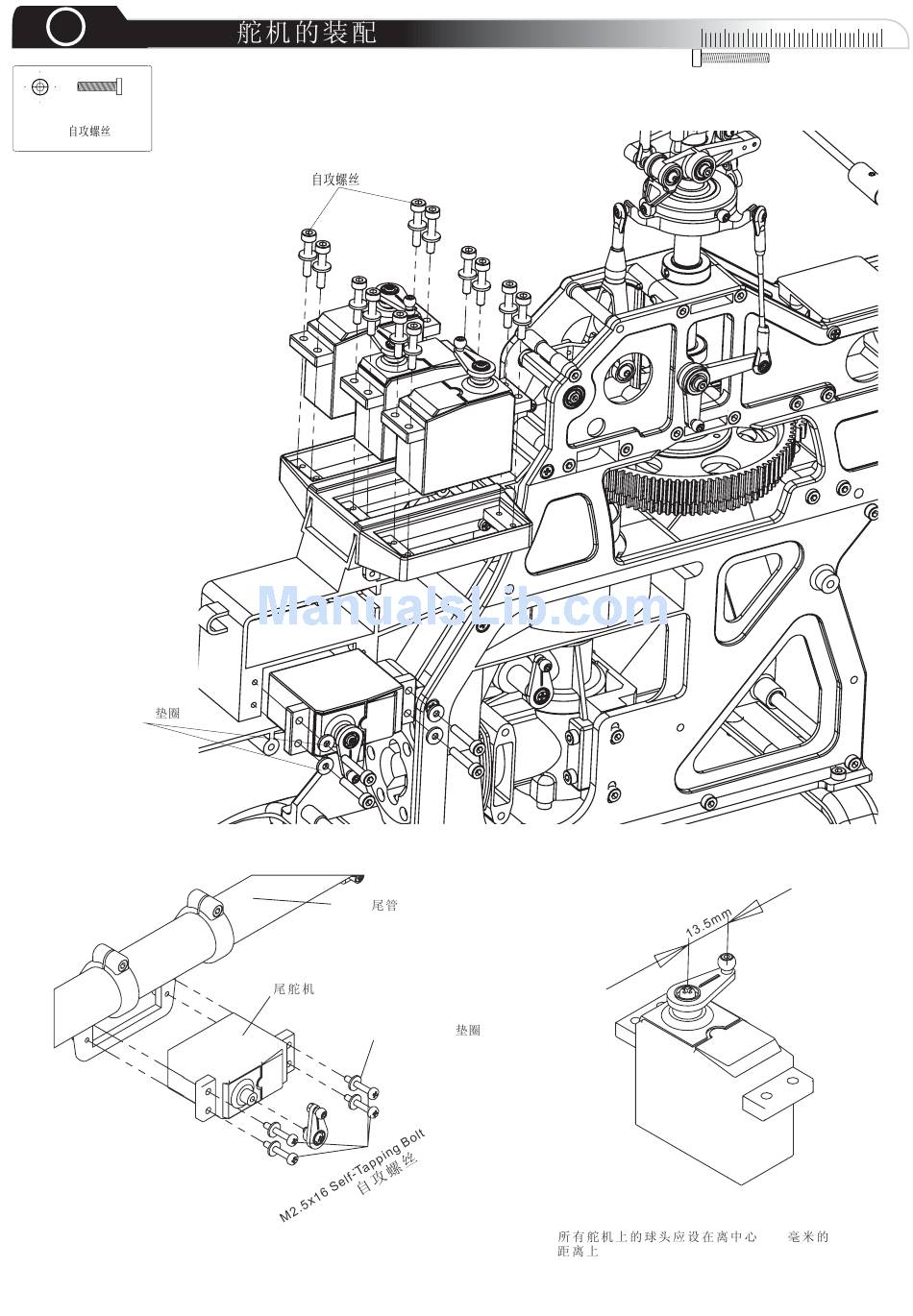

SE R VO /
M2.5x16 Self tapping
bolt x20
2.5mm Washer
M2.5x16 Self tapping bolt
Boom
Rudder Servo
2 5mm Washer
.
0
All control balls should to set at 13.5mm to
the center of the servo horn
.
10
30
20
40
1 3 . 5
