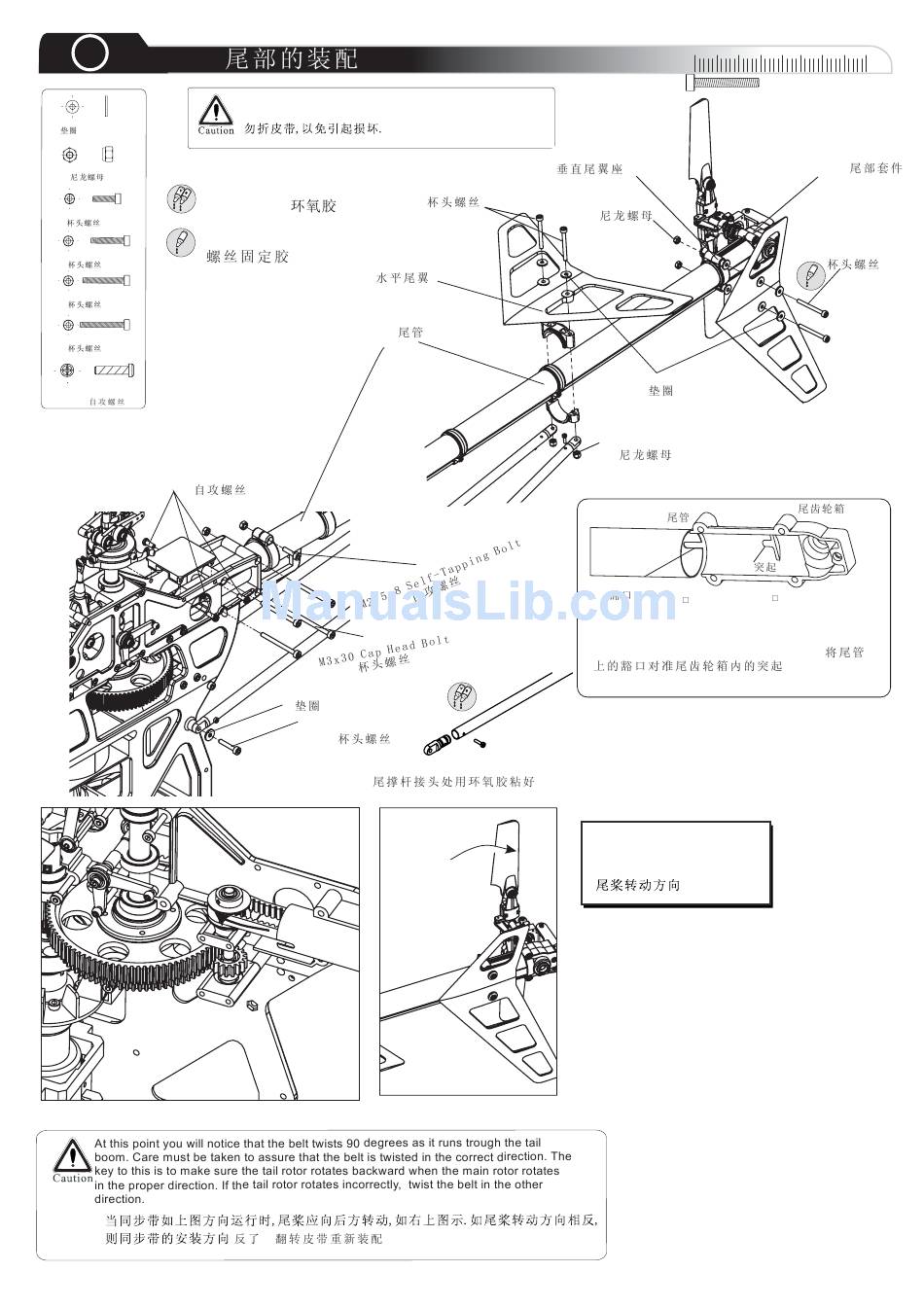

Compass Model SPORT X Assembly Manual page 10

6
T a i l /
M3 Washer x4
M3 Nylon Lock Nut
x8
Use AB Glue
M2.5x6 Cap Head Bolt
x2
Blue Threadlock
M3x25 Cap Head Bolt
x4
M3x35 Cap Head Bolt
x2
M3x40 Cap Head Bolt
x4
M2.5 x8 Self-Tapping
Bolt X 4
M2.5 x8 Self-Tapping
Bolt X 4
Crimping belt damages the tensile cords and will result
in premature failure.
M3x30 Cap Head Bolt
Ho rizontal Fin
Bo om
M 3 Wa sh er
M3 x3 5 Ca p H ead Bolt
Ap ply AB Glue on Boom Support .
，
0
Vertical Fin Mount
M3 Nylon Nut
M3 Washer
M3 Nylon Nut
Tail Boom
Longer Groove
There are 2 grooves on the Boom. There is one
Lug on the Gear Case. Line Up the longer
groove with the Lug when assembling.
.
Team Tip :
Check tail rotor direction. Top
rotor blade moves to rear
10 30
20 40
T ai l S e t
M3 x3 0 C a p H ea d B o lt
Gear Case
Lug
.
