Page 1: Installation Instructions

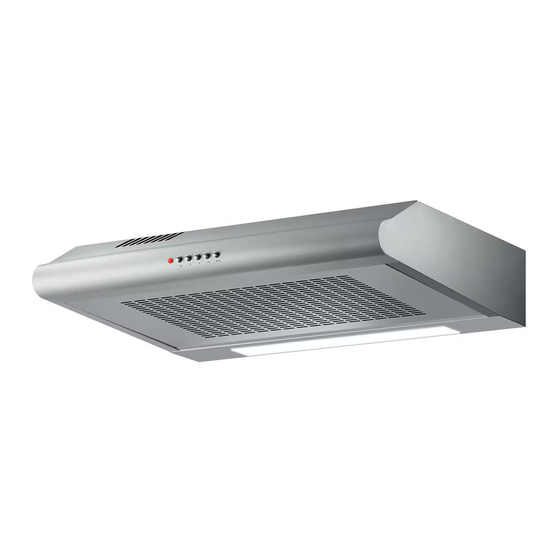

INSTALLATION INSTRUCTIONS USER GUIDE Standard Rangehood HF60LX4 and HF60LW4 model NZ AU... -
Page 3: Table Of Contents
CONTENTS Safety and warnings Installation instructions Operating instructions Cleaning and maintenance Parts and accessories Manufacturer’s Warranty Customer Care IMPORTANT! Registration SAVE THESE INSTRUCTIONS Register your product with us so we can The models shown in this user guide may provide you with the best service possible. not be available in all markets and are subject to change at any time. -
Page 5: Safety And Warnings
SAFETY AND WARNINGS WARNING! Weight Hazard The rangehood is heavy. Please ensure adequate care is taken when installing the rangehood to prevent personal injury. The rangehood must be installed onto a solid wall, stud, beam or truss. Weight of the HF60 is 4.8 kg. - Page 6 SAFETY AND WARNINGS There shall be adequate ventilation of the room when the rangehood is used at the ● ● same time as appliances burning gas or other fuels. The minimum distance between the supporting surface for cooking vessels on the ●...
-
Page 7: Installation Instructions
INSTALLATION INSTRUCTIONS Contents of packaging INSTALLATION INSTRUCTIONS USER GUIDE Standard Rangehood HF60LX4 model NZ AU Rangehood Installation instructions 125 mm diameter User guide manual ducting adapter Duct hole cover 10 mm self tapping screw... - Page 8 INSTALLATION INSTRUCTIONS Power cord Product dimensions Ø PRODUCT DIMENSIONS Overall height of product Overall width of product Overall depth of product Distance from centre of ducting outlet to back of product Distance from centre of ducting outlet to side of product Diameter of ducting outlet Length of light Width of light...
- Page 9 INSTALLATION INSTRUCTIONS Height of rangehood INSTALLATION DIMENSIONS Height top of cooktop to base of product Electric cooktop min. 600 – max. 750 Gas cooktop min. 650 – max. 750 Rangehood installation height above the cooktop is the user’s preference. Lower installation heights will improve the efficiency of capturing cooking odours, grease, and smoke.
- Page 10 INSTALLATION INSTRUCTIONS Venting options Attention should be given to ensure that any applicable regulations concerning the discharge of exhaust air are fulfilled. The rangehood can be installed to operate with the exhaust air ducted externally from the kitchen, or installed to operate with the exhaust air recirculating within the kitchen. Ducted For ducted installation it is recommended that 125 mm diameter, rigid or semi-rigid ducting is used.
- Page 11 INSTALLATION INSTRUCTIONS WARNING! This product is heavy and requires two persons for installation. ● ● Installation work and electrical wiring must be done by qualified person(s) ● ● in accordance with all applicable codes and standards. Failure to install the screws or fixing device in accordance with these instructions may ●...
- Page 12 INSTALLATION INSTRUCTIONS TITLE TO GO HERE Wall Mounting 1 Attach the rangehood mounting screws to the wall Attach the upper rangehood mounting ● ● screws in the locations shown in Fig.4. Use 30 mm screws (and expansion plugs if attaching to masonry). Ensure that there is a 2 mm gap between the screw head and the wall (see Fig.3).
- Page 13 INSTALLATION INSTRUCTIONS INSTALLATION INSTRUCTIONS 2 Wall mounting Remove the filter – pull the relative catch and tilt the filter downwards until it ● ● disengages from the supports (see Fig.5). Fig.5 Hang the rangehood off the upper rangehood mounting screws with 2 mm gap. ●...
- Page 14 INSTALLATION INSTRUCTIONS Under cupboard mounting 1 Attach the ducting adapter to the rangehood (if ducted) Place the ducting adapter onto the hood and screw it in place using 10 mm screws ● ● (see Fig.7). Fig.7 2 Mount the rangehood Remove the filter –...
-
Page 15: Operating Instructions
OPERATING INSTRUCTIONS Control panel Extractor fan Lighting Extractor operating control on and off fan off Extractor fan speed 1, 2 and 3 pilot light Note: we recommend turning your rangehood on before you start cooking for optimal performance. -
Page 16: Cleaning And Maintenance
CLEANING AND MAINTENANCE WARNING! Unplug or disconnect the appliance from the power supply before servicing or cleaning. IMPORTANT! Never use abrasive or oil based cleaners. ● ● Wear gloves to protect against sharp edges. ● ● Maintenance The rangehood should be cleaned regularly using a mild, liquid detergent and a clean soft cloth to avoid a build-up of grease occurring. - Page 17 CLEANING AND MAINTENANCE WARNING! When replacing the bulb, let the bulb cool, and assure that power to the light has been turned off. Use new bulbs according to that indicated on the rangehood nameplate. IMPORTANT! Use bulbs with an aluminium reflector to replace halogen bulbs. Do not use ●...
-
Page 18: Parts And Accessories
PARTS AND ACCESSORIES ITEM REFERENCE NUMBER Light bulb 792507 Aluminium filter 792512 Recirculation carbon filter 792506 Ducting kit 125 mm (eaves) PD-RHK125E Ducting kit 125 mm (wall) PD-RHK125W... -
Page 19: Manufacturer's Warranty
MANUFACTURER’S WARRANTY You automatically receive a 2 year Manufacturer’s Warranty with the purchase of this rangehood covering parts and labour for servicing within the country of purchase. Fisher & Paykel undertakes to: Repair or, at its option, replace without cost to the owner either for material or labour any part of the product, the serial number of which appears on the product, which is found to be defective within TWO YEARS of the date of purchase. - Page 20 MANUFACTURER’S WARRANTY For Australian Customers This Manufacturer’s Warranty is an extra benefit and does not affect your legal rights. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage.
-
Page 21: Customer Care
CUSTOMER CARE Before you call for service or assistance... Check the things you can do yourself. Refer to the installation instructions and your user guide and check that: 1 Your product is correctly installed. 2 You are familiar with its normal operation. If after checking these points you still need assistance or parts, please refer to your nearest Fisher &... - Page 22 CUSTOMER CARE Complete and keep for safe reference: Model Serial No. Purchase Date Purchaser Dealer Suburb Town Country...
- Page 24 © Fisher & Paykel Appliances 2016. All rights reserved. The product specifications in this booklet apply to the specific products and models described at the date of issue. Under our policy of continuous product improvement, these specifications may change at any time. You should therefore check with your Dealer to ensure this booklet correctly describes the product currently available.
