Installation instructions
Please read and follow the 'Safety and warnings' and 'installation instructions' sections carefully before using your
rangehood.

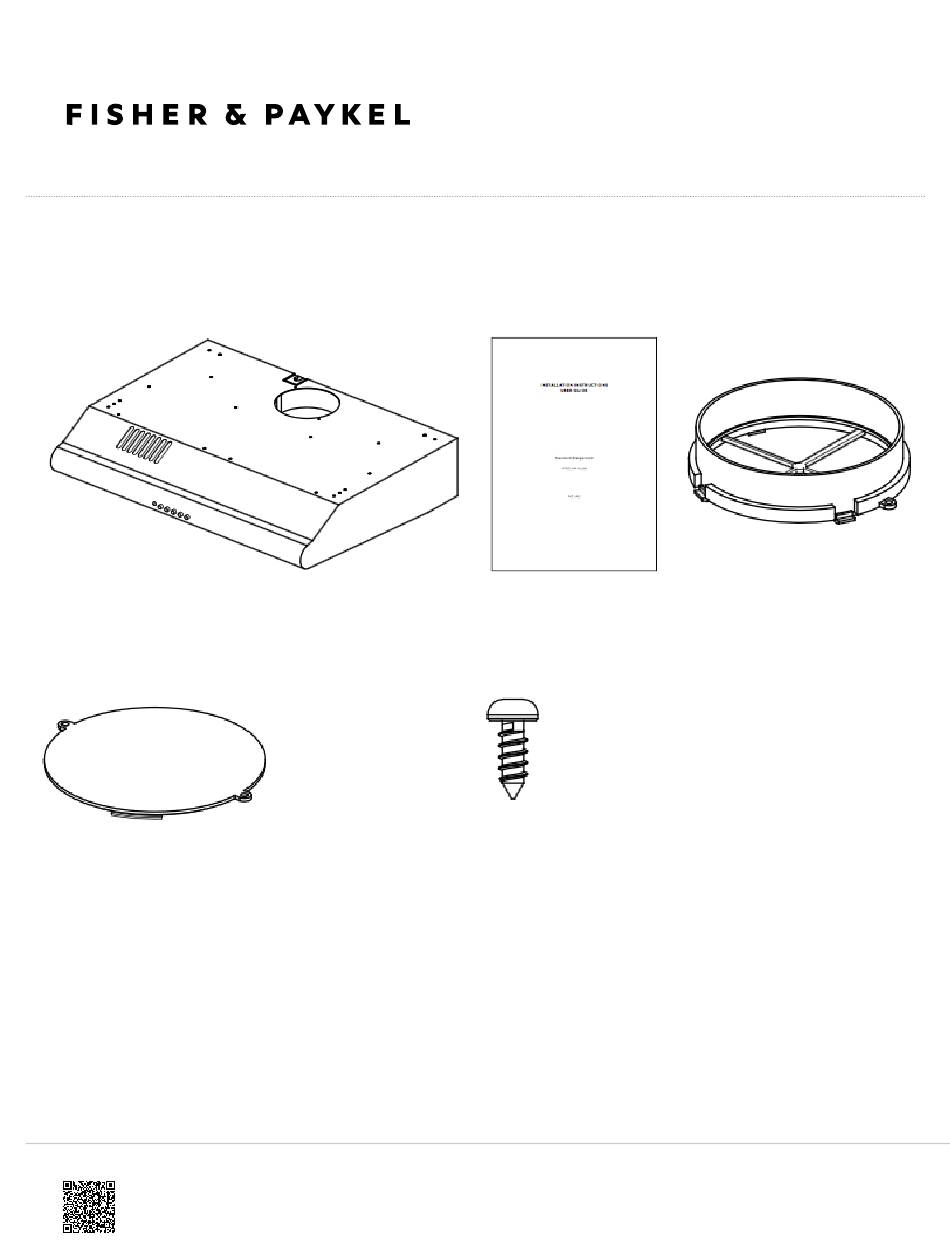

125 mm diameter ducting
adapter (1)
Installation instructions
Rangehood (1)
User guide manual (1)
10 mm self tapping
Duct hole cover (1)
screw (2)
https://producthelp.fisherpaykel.com/nz/Cook/Rangehoods/Standard/HF60LW4/User_Guide_HF60LW4/02_Installation_instru...
Updated: Tue, 12 May 2020 02:57:47 GMT
Powered by
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HF60LW4 and is the answer not in the manual?

Questions and answers

Summary of Contents for Fisher & Paykel HF60LW4

  • Page 1 Please read and follow the ‘Safety and warnings’ and ‘installation instructions’ sections carefully before using your rangehood. 125 mm diameter ducting adapter (1) Installation instructions Rangehood (1) User guide manual (1) 10 mm self tapping Duct hole cover (1) screw (2) https://producthelp.fisherpaykel.com/nz/Cook/Rangehoods/Standard/HF60LW4/User_Guide_HF60LW4/02_Installation_instru… Updated: Tue, 12 May 2020 02:57:47 GMT Powered by...
  • Page 2: Product Dimensions

    Product dimensions Product Dimensions (table) Property Size (mm) A. Overall height of product B. Overall width of product C. Overall depth of product https://producthelp.fisherpaykel.com/nz/Cook/Rangehoods/Standard/HF60LW4/User_Guide_HF60LW4/02_Installation_instru… Updated: Tue, 12 May 2020 02:57:47 GMT Powered by...
  • Page 3: Height Of Rangehood

    J. Depth of top surface of product Length of power cord Actual product dimensions may vary by ± 2 mm. Please read the entire instructions before installing the rangehood. Height of rangehood https://producthelp.fisherpaykel.com/nz/Cook/Rangehoods/Standard/HF60LW4/User_Guide_HF60LW4/02_Installation_instru… Updated: Tue, 12 May 2020 02:57:47 GMT Powered by...
  • Page 4 Updated: Tue, 12 May 2020 02:57:47 GMT Powered by...
  • Page 5: Installation Dimensions

    (see Fig.1) and close off the duct hole with the cover provided (see Fig.2). Purchase and https://producthelp.fisherpaykel.com/nz/Cook/Rangehoods/Standard/HF60LW4/User_Guide_HF60LW4/02_Installation_instru… Updated: Tue, 12 May 2020 02:57:47 GMT Powered by...
  • Page 6 Installation work and electrical wiring must be done by qualified person(s) in • accordance with all applicable codes and standards. Failure to install the screws or fixing device in accordance with these instructions may • result in electrical hazards. https://producthelp.fisherpaykel.com/nz/Cook/Rangehoods/Standard/HF60LW4/User_Guide_HF60LW4/02_Installation_instru… Updated: Tue, 12 May 2020 02:57:47 GMT Powered by...
  • Page 7: Installation

    Fig.4. Use 30 mm screws (and expansion plugs if attaching to masonry). Ensure that there is a 2 mm gap between the screw head and the wall (see Fig.3). https://producthelp.fisherpaykel.com/nz/Cook/Rangehoods/Standard/HF60LW4/User_Guide_HF60LW4/02_Installation_instru… Updated: Tue, 12 May 2020 02:57:47 GMT Powered by...
  • Page 8 • Hang the rangehood off the upper rangehood mounting screws with 2 mm gap. Hang off the keyhole attachment points on the back of the rangehood (see Fig.6) then tighten the screws. https://producthelp.fisherpaykel.com/nz/Cook/Rangehoods/Standard/HF60LW4/User_Guide_HF60LW4/02_Installation_instru… Updated: Tue, 12 May 2020 02:57:47 GMT...
  • Page 9 • Place the ducting adapter onto the hood and screw it in place using 10 mm screws (see Fig.7). Fig. 7 2. Mount the rangehood • Remove the filter – pull the relative catch and tilt the filter downwards until it disengages from the supports (refer to Fig.5). https://producthelp.fisherpaykel.com/nz/Cook/Rangehoods/Standard/HF60LW4/User_Guide_HF60LW4/02_Installation_instru… Updated: Tue, 12 May 2020 02:57:47 GMT Powered by...
  • Page 10 Q. Rangehood front attachment point 3. Attach ducting (if ducted) • Attach ducting to the ducting adapter using aluminium duct tape and vent outside. 4. Remove packaging • Remove all packaging and protective wrappings. https://producthelp.fisherpaykel.com/nz/Cook/Rangehoods/Standard/HF60LW4/User_Guide_HF60LW4/02_Installation_instru… Updated: Tue, 12 May 2020 02:57:47 GMT Powered by...
