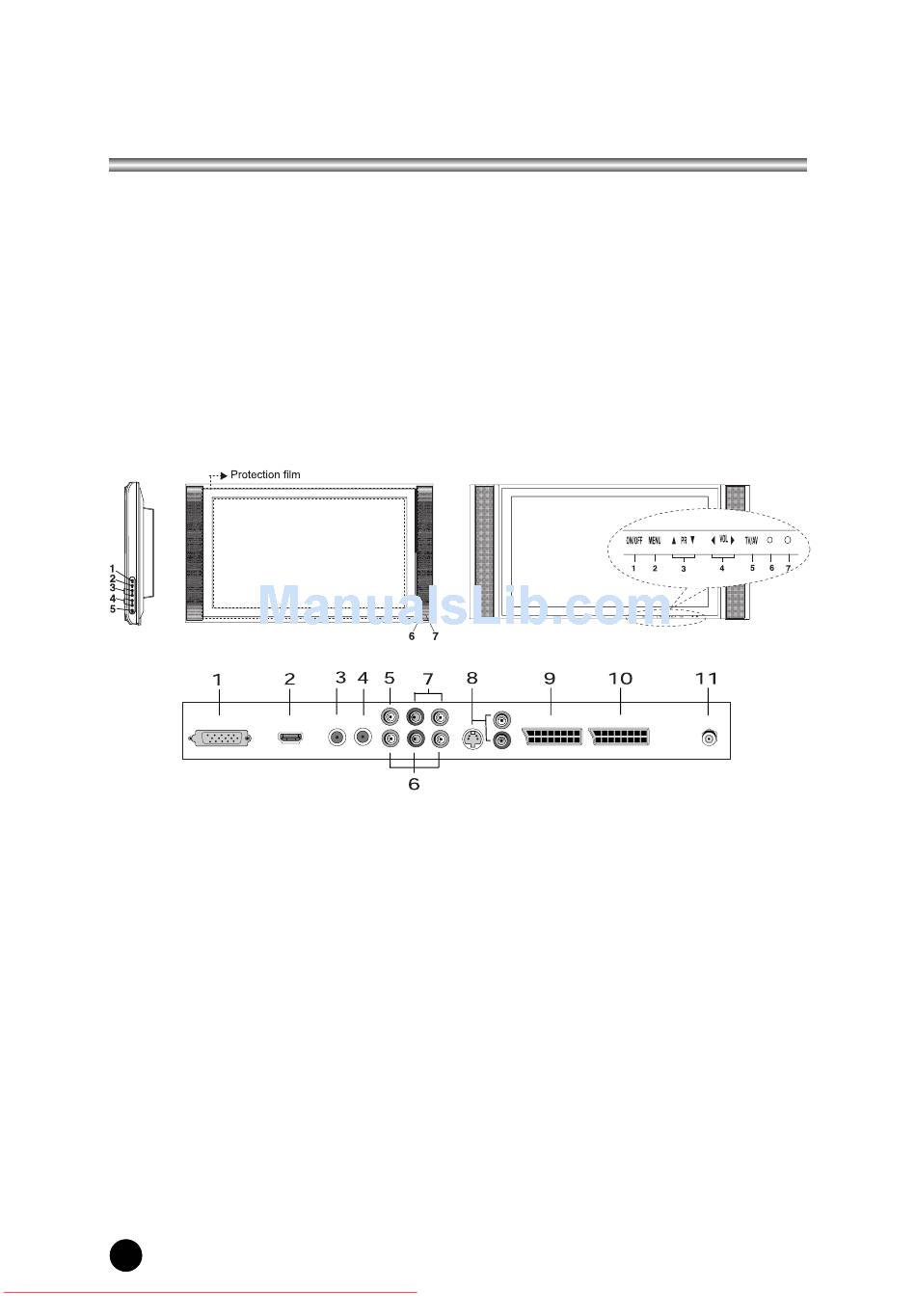

Controls
1. ON/OFF Switches TV set on or off.
2. MENU Displays a menu.
3. + PR - (Programme Up/Down)
Selects a programme or a menu item.
4. + VOL - (Volume Up/Down) Adjusts the volume./ Adjusts menu settings.
5. TV/AV Selects TV, SCART1, SCART2, S-VIDEO, COMPONENT, PC ANALOG,
HDMI./ Clears the menu from the screen.
6. Power Indicator
Illuminates in red when the TV is in standby mode./ Illuminates in green when the
TV is switched on.
7. Remote control sensor Accepts the IR signal of remote controller.
1. PC ANALOG IN (D-SUB)
2. HDMI (High Definition Multimedia Interface) IN
Connect to the HDMI jack for device with HDMI output.
3. PC AUDIO IN
Connect the audio cable from the PC to the PC AUDIO IN of the set.
4. H/P (Headphone out) Connect a headphone to this socket.
5. Sub woofer OUT
Connect the cable from the Sub woofer to the Sub woofer OUT of the set.
6. COMPONENT(Y/Pb(Cb)/Pr(Cr)) VIDEO IN
Connect the COMPONENT video output sockets of the DTV set top box to the
COMPONENT Input sockets of the set.
7. COMPONENT AUDIO(L/R) IN
Connect the audio cable from the DTV set top box to the Audio
Input sockets of the set.
8. S-VIDEO IN
Connect the output of an S -VIDEO VCR to the S-VIDEO input.
Connect the audio outputs of an S-VIDEO VCR to the Audio IN (L(MONO), R).
9. SCART2 AV2
10. SCART1 AV1
11. Ant. (Antenna input)
