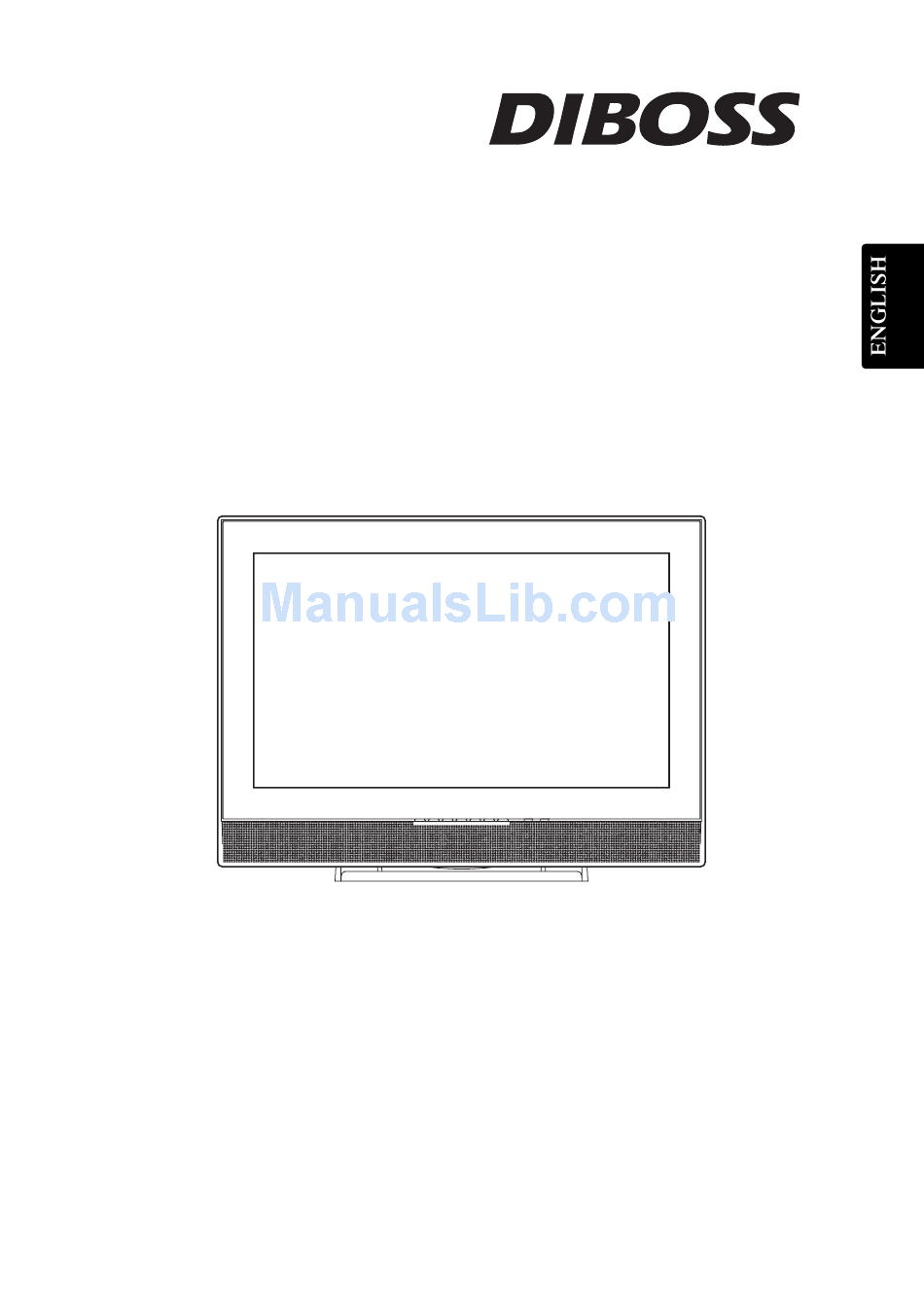

- Page 1 23" WIDE TFT LCD TV / MONITOR Owner’s Manual LT-23Q5LFH Model:...
-
Page 3: Warnings 3~4
Warnings WARNING RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING : To reduce the risk of electric shock do not remove cover (or back). No user serviceable parts inside. Refer servicing to qualified service personnel. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage”... -
Page 4: Warnings
Warnings Service Never remove the back cover of the TV, this can expose you to high voltage and other hazards. If the TV does not operate properly, unplug it and call your dealer. Connect the antenna cable to the connection marked Ant. (on the rear). For best reception, use an outdoor antenna. -
Page 5: Table Of Contents
Contents Before operating the set, please read this manual carefully. Warnings Contents Supplied Accessories Controls Controller of panel Remote controller Basic Operation Turning the TV On and Off Programme selection Volume adjustment Q.View Sound mute function On screen Language selection On Screen Menus and Displays Setting up TV Programme 12~14... -
Page 6: Supplied Accessories
L Make Sure the following accessories are provided with Product. 4. Owner’s manual 1. AC Cord Owner’s Manual 23" WIDE TFT LCD TV/MONIT0R 2. Remote controller Model: LT-23Q5LFH 5. PC IN cable 6. PC Audio IN cable 3. Batteries (type AAA) -
Page 7: Controls
Controls 1. ON/OFF Switches TV set on or off. 2. MENU Displays a menu. ▲ PR ▼ (Programme Up/Down) Selects a programme or a menu item. 4. ◀ VOL ▶ (Volume Up/Down) Adjusts the volume./ Adjusts menu settings. 5. TV/AV Selects TV, SCART1,SCART2, VIDEO, S-VIDEO, RADIO(Only when the set is Radio On.) or PC Analog, PC Digital or COMPONENT mode. -
Page 8: Remote Controller
Controls All the functions can be controlled with the remote controller. Some functions can also be adjusted with the buttons on the front panel of the set. Remote controller Before you use the remote controller, please install the batteries. 1. POWER Turns the TV on from standby or off to standby mode. -
Page 9: Controls
Controls 14. PSM (Picture Status Memory) Recalls your preferred picture setting 15. SSM (Sound Status Memory) Recalls your preferred sound setting 16. ARC You can watch TV in various picture formats; Auto, 16:9, 14:9, 4:3, 16:9 Zoom, 14:9 Zoom, 4:3 Zoom. Repeatedly press the ARC button to select your desired picture format. -
Page 10: Basic Operation
Basic Operation Turning the TV On and Off Standby Setup: The AC power cord must be set up and connected to have the TV in standby mode ready to be turned on. Press the ON/OFF button on the front panel of the TV to go into standby mode. -
Page 11: On Screen Menus And Displays
On Screen Menus and Displays 1. Press the MENU button to display main menu. Equalizer 2. Press the PRx y button to select menus-Picture, Flat Sound, Special, Setup. Music 3. Adjust each menu with the Ïq button. Movie Speech 4. Press the MENU button to return to preceding menu. User 5. -
Page 12: Setting Up Tv Programme
Setting up TV Programme Once you have preset the programmes, you will be able to use the PRxy or NUMBER buttons to scan the Auto Programme programmes you programmed. System Programmes can be tuned using automatic or manual Start modes. Auto Programme All programmes that can be received are stored by this Position :▲▼... -
Page 13: Manual Programme
Setting up TV Programme Manual Programme Manual Programme Manual Programme lets you manually tune and arrange the programmes in whatever order you desire. Also you Programme Channel can assign a programme name with 5 characters to each Table V/UHF programme number. System ▶▶▶... -
Page 14: Programme Edit
Setting up TV Programme Programme Edit Programme Edit This function enables you to delete or skip the stored P00----- P05----- P01----- P06----- programmes. P02----- P07----- Also you can move some programmes to other P03----- P08----- P04----- P09----- programme numbers or insert a blank programme data into ■Delete ■Name the selected programme number. -
Page 15: Picture Control
Picture Control You can adjust picture Contrast, Brightness, Colour, Sharpness and Tint(only in NTSC mode) to the levels you prefer. Picture Manual Picture Control Contrast 1. Press the MENU button. Brightness Colour 2. Select the Picture menu. Sharpness 3. Press the PRxy button select a picture item. 4. -
Page 16: Sound Control
Sound Control You can select your preferred sound setting; Flat, Music, Sound Movie or Speech. You can also adjust the sound ▶ Equalizer frequency of equalizer, balance. If you switch AVL to on, Balance the set automatically keeps on an equal volume level even Surround if you change programmes. - Page 17 Sound Control Auto Sound Control * The sound Flat, Music, Movie and Speech are programmed for good sound reproduction at the factory and cannot be changed. SSM (Sound Status Memory) 1. Press the SSM button. 2. Press the SSM button repeatedly to select. Each press of the button changes the screen display as below.
-
Page 18: Other Functions
Other functions You can control other functions; Clock, Blue Back, Auto Special Sleep, Childlock, Radio and ARC menu. ▶ Clock Blue Back Auto Sleep Clock Childlock Radio Setting the clock is necessary in order to use the various 16:9 timer features of the TV. You can set automatic TV On or Position :▲▼... -
Page 19: Auto Sleep
Other functions Auto Sleep If you select Auto Sleep On the set will automatically switch itself to standby mode approximately ten minutes after a TV Channel stops broadcasting. 1. Press the MENU button. 2. Select the Special menu. 3. Press the PRxy button to select Auto Sleep. 4. -
Page 20: Radio Control
Radio Control This function is possible only when the set is in Radio mode.(Radio mode is displayed when the Setting for special menu is radio On.) Radio Setup 1. Use TV/AV button on remote controller to select Mode Auto Radio mode. Frequency 87.5 MHz Programme... -
Page 21: Other Functions
Other functions PIP function PIP will let you view two separate source inputs on your TV screen at the same time. Viewing the PIP picture Press the PIP/* button. (Press the PIP/* button again, to turn PIP off.) Note : PIP function is available when the main picture is in PC Digital, PC Aanlog or COMPONENT mode. -
Page 22: Teletext
TELETEXT TEXT On/Off Press the TEXT button to switch to TELETEXT. The initial page or last selected page appears on the screen. The first page number indicates your selection, while the second shows the current page displayed. 1. Press TEXT button once, displays the Teletext pages. Press MIX button once more, displays the Teletext pages superimposed on the TV picture. -
Page 23: Special Teletext Function
TELETEXT Special TELETEXT functions MENU Functions TEXT Changes Teletext mode Selects double height text. Press this button to enlarge the top half of the page. SIZE Press this button again to enlarge the bottom half of the page. Press this button again to return to the normal display. Stops the automatic page change, which will occur if a Teletext page consists of 2 or more sub pages. -
Page 24: External Equipment Connection
External Equipment Connection You can connect additional equipment, such as VCRs, camcorders etc. to your set. Examples are shown below. Antenna connection 1. Connect RF out on the VCR to the Antenna input on the rear of the TV. 2. Connect the antenna cable to the antenna in jack on the VCR. -
Page 25: Scart1
External Equipment Connection SCART 1(Full) 1. Connect the A/V out jacks on the AV device to SCART1 jack on the TV. 2. Use the TV/AV button to select SCART1 mode. 3. Press the PLAY button on the VCR. The VCR playback picture appears on SCART1 SCART2 (RGB) -
Page 26: Connecting The Pc As A Monitor
Connecting the PC as a monitor This function is possible only when the set is in PC mode. Use the TV/AV button on remote controller. Main Menu Picture adjustment Picture Sound You can adjust picture Contrast, Brightness, H/V Position Temperature, Clock, Phase and ARC as you prefer. Auto 1. -
Page 27: Sound Adjustment
Connecting the PC as a monitor Sound adjustment 1. Press the MENU button. Sound 2. Select the Sound menu. Equalizer 3. Press the PRxy button to select the desired Balance sound item; Equalizer, Balance, AVL, Surround or Surround Sound Mode. Sound Mode 4. -
Page 28: Position Adjustment
Connecting the PC as a monitor Position Adjustment This function is to adjust picture to left/right and up/down H/V Position as you prefer. 1. Press the MENU button. H-Position 2. Select the H/V Position menu. V-Position 3. Press the PRxy button to select the desired position item. - Page 29 Connecting the PC as a monitor PC/DTV INPUT 1. Connect the PC IN cable (D-sub jack) from the monitor output socket of the PC to the PC ANALOG input socket of the set. 2. Connect the PC Audio IN cable from the PC to the PC AUDIO IN of the set. 3.
-
Page 30: Product Specification
Product Specification Model LT-23Q5LFH Horizontal size 600 mm Thickness 91.4(190) mm Main body (With stand) Height 436.6(449) mm Weight 9.22 kg Power requirements 100-240Va.c. 50/60Hz Television system PAL-BG, I, DK / SECAM-BG, DK, L / AV NTSC Television programme VHF: 2~12 UHF :21~69 Cable : S1~S41 LCD Panel 23"... -
Page 31: Troubleshooting
Troubleshooting Problem Check item • Insert the AC power cord plug securely in AC power outlet. No picture on screen and no sound • Make sure the set is not in the standby mode (The from speakers POWER/Standby indicator is red.) •... -
Page 32: Limited Warranty
Limited Warranty...
